AUSSIE MADE

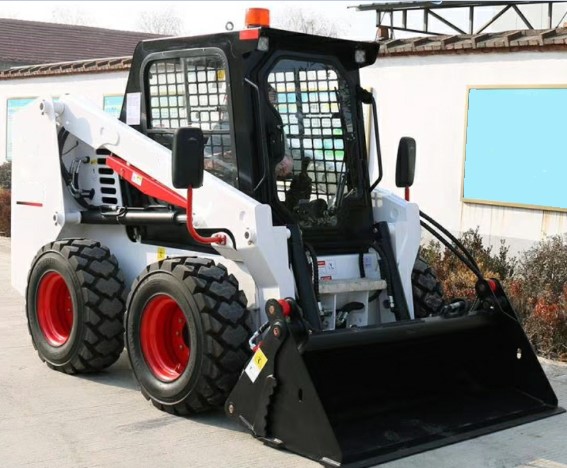

Wheel Drive – 60hp Mitsubishi Diesel Engine TM60WR

Powerful, Nimble, Work Horse

POA including GST
Includes 4/1 Bucket !!
* RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

  • Mitsubishi Engine (Other Brands Optional)
  • Air Conditioning – Operator Comfort
  • 4 in 1 Bucket – Doze, Dig, Carry, Clamp, Grab, Optional Teeth
  • Joystick Steering Control – Soft Touch for Less Operator Fatigue
  • Lift Arm Float Control – Spread Soil Easily by Back Blading
  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Diesel Engine and Hydraulic Oil
  • 3 Hydraulic Pump System – For Efficient Separation of Power to Attachments, Bucket Controls, and Wheels
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check
  • Auxiliary Hydraulic Outputs – Operate Many Work Tools
  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers, Dumping Over A Wall, or Loading Flat Bed Trucks
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish
  • Japanese NSK Bearings and Grade 100H Chains – For Longer Life
  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Muffler Insulation – Reduces Under Bonnet Temperature
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power
  • Rear View Mirrors – Increased Operator Vision

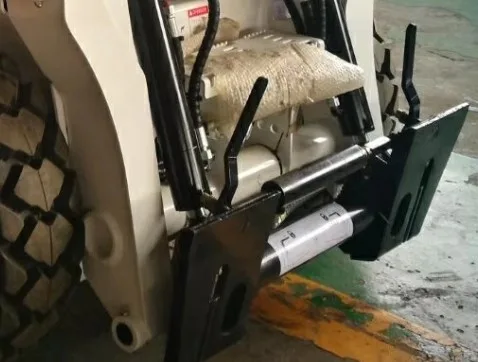

  • Standard Attachment Mounting Plate – Fits Most Common Attachments

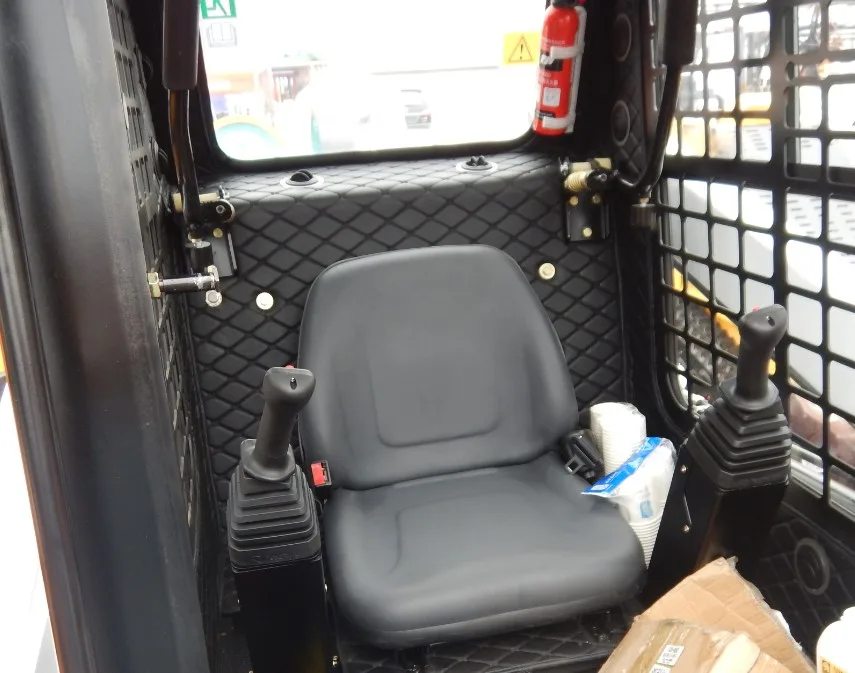

  • High Quality Operator Station – Provides Great Visibility, Roof Window, Sound Insulation, and Great Operator Comfort

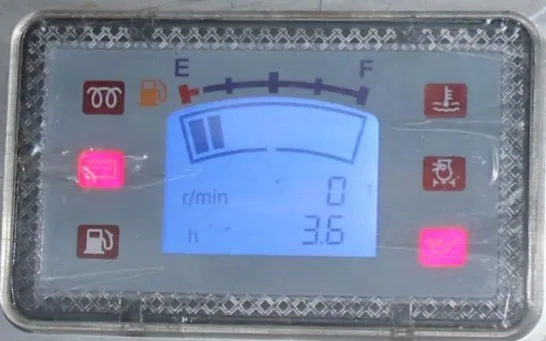

  • Gauges and Warning Lights – Machine Protection
  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life

  • Tie Down Locations – Safe Security for Transporting

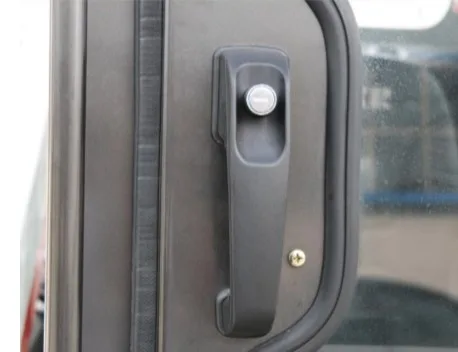

  • Key Locks on Access Panels and Fuel Caps – For Security
  • Emergency Stop Switch – Operator safety
  • Lift Arm Safety Support – Operator Safety

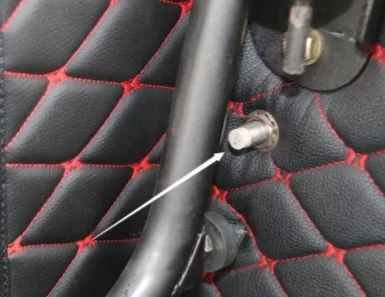

  • Lock Out Switch – Locks The Pilot Oil Control System For Operator Safety
  • Brake System – Operator Safety
  • Service Kit and Tools – Maintenance items
  • Great Quality Tires 10 x 16.5 – Better ground Clearance (Optional Tread Patterns)
  • Operators Manual – Safety and Protection
  • LED Lights – Day and Night Vision

SPECIFICATIONS:

ENGINE
Engine Make Mitsubishi (Japan)
Fuel Type Diesel
Rated Power 60 hp (45 kw)
Electrical 12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump Brand Danfoss Sauer (Denmark)
Type Tandem Axial Piston
Valve Brand Hydro Control Joystick (Italian)
Cooler Alloy Radiator
DRIVING SYSTEM
Motor Brand Danfoss Sauer (Dansh)
Type Tandem Radial Piston
Speed Low Speed 12.2 Km/h
AUX CIRCUIT
Valve Brand Trinity Flat Faced Couplers (Italian)
Pressure 3045 PSI (210 Bar)
Flow 80 L/Min
FLUID CAPACITIES
Fuel Diesel
Hydraulic Oil
Engine Oil
Coolant
RATED LOAD
50% of Tip Capacity 800 kg
35% of Tip Capacity 560 kg
Tip Capacity 1600 kg

DIMENSIONS:

DIMENTIONS
Height to Bucket Hinge Pin 3000 mm
Width 1625 mm
Shipping Weight ( No Bucket) kg
Operating Weight (Full Fuel, 80kg Operator, Bucket) 2810 kg
Height Max 3850 mm
Height Min 1980 mm
Length with Bucket 3406 mm
Length without Bucket 2708 mm
Wheelbase 1085 mm
Ground Clearance 186 mm
Angle of Departure 26 deg
