Want a Cost Effective Tracked Machine!

Track Drive – 23hp Briggs and Stratton Petrol Engine TM23T

$ 21,400 including gst
Includes 4/1 Bucket !!
*RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

  • Front View
  • Universal Mounting Plate for many Attachments

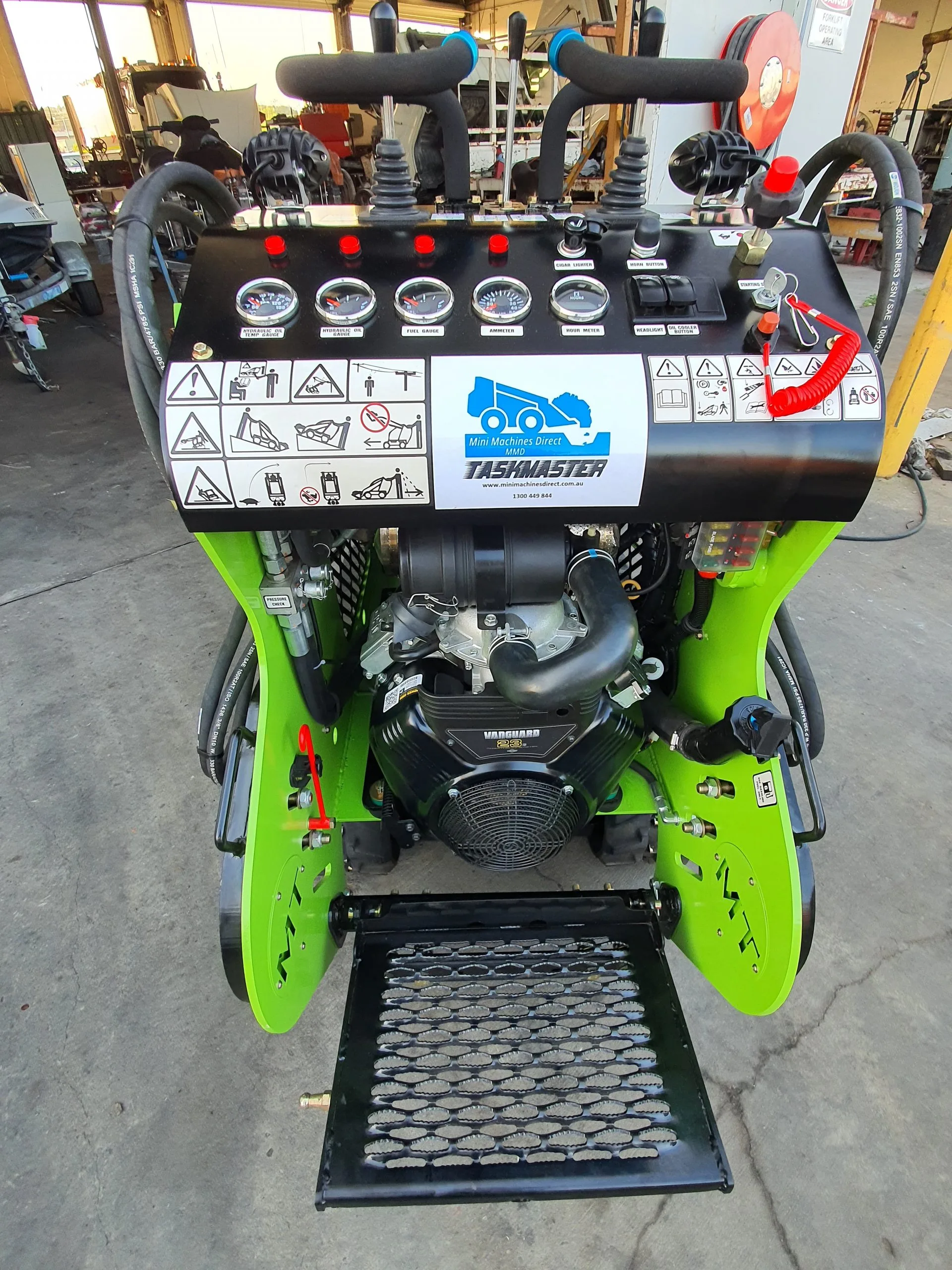

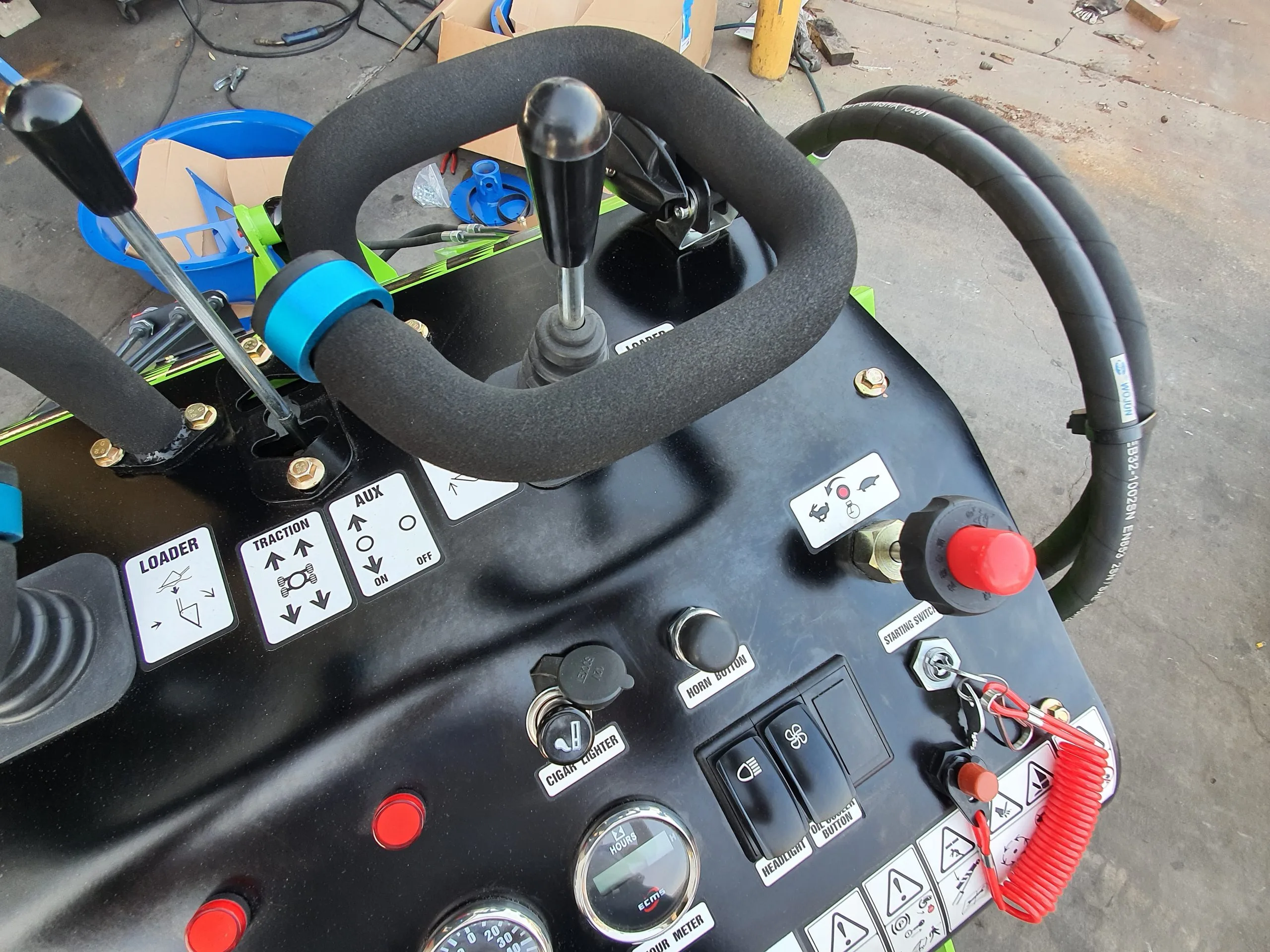

  • Instrument Control Panel

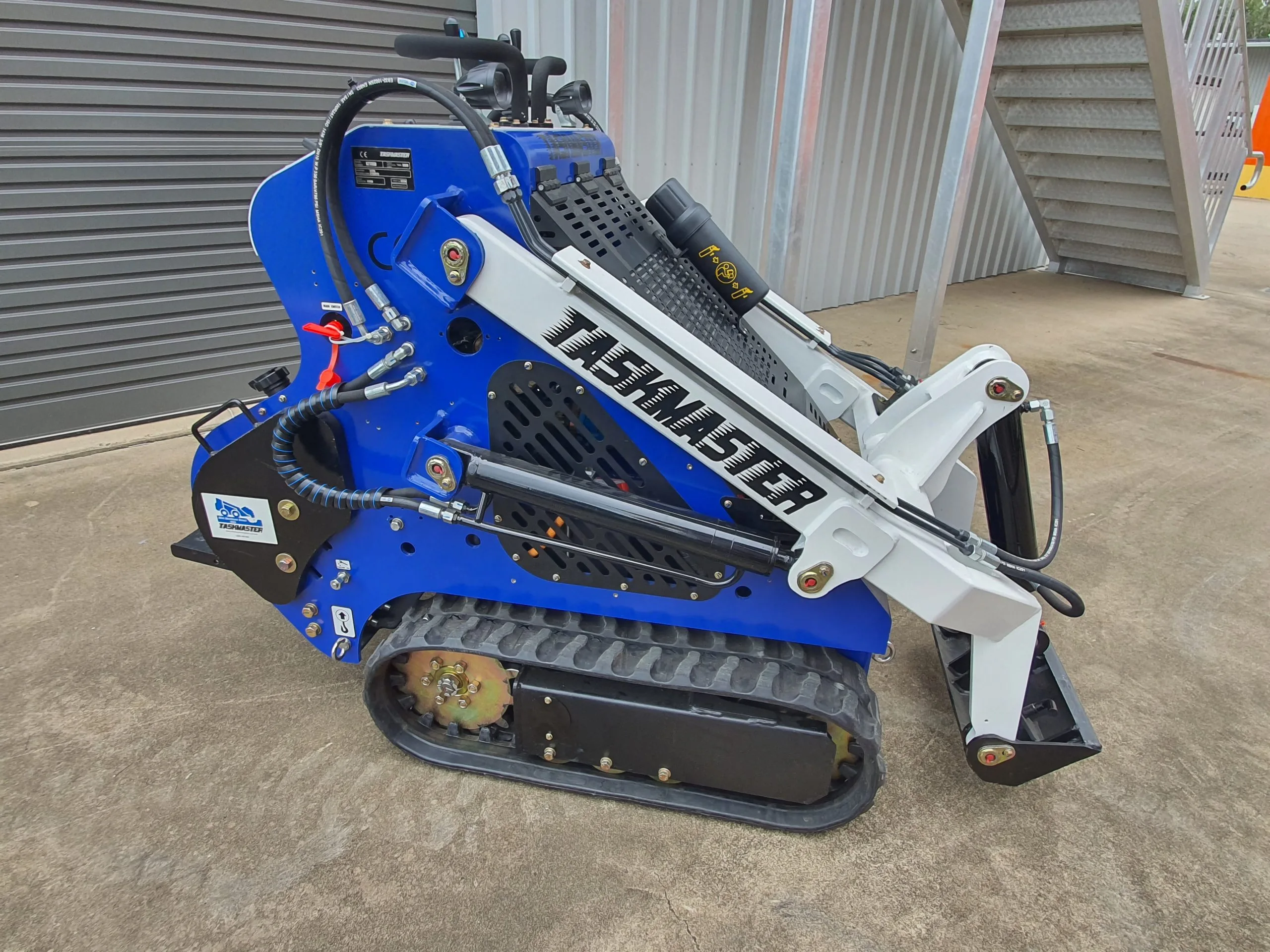

  • Right View
  • New Machine Line Up

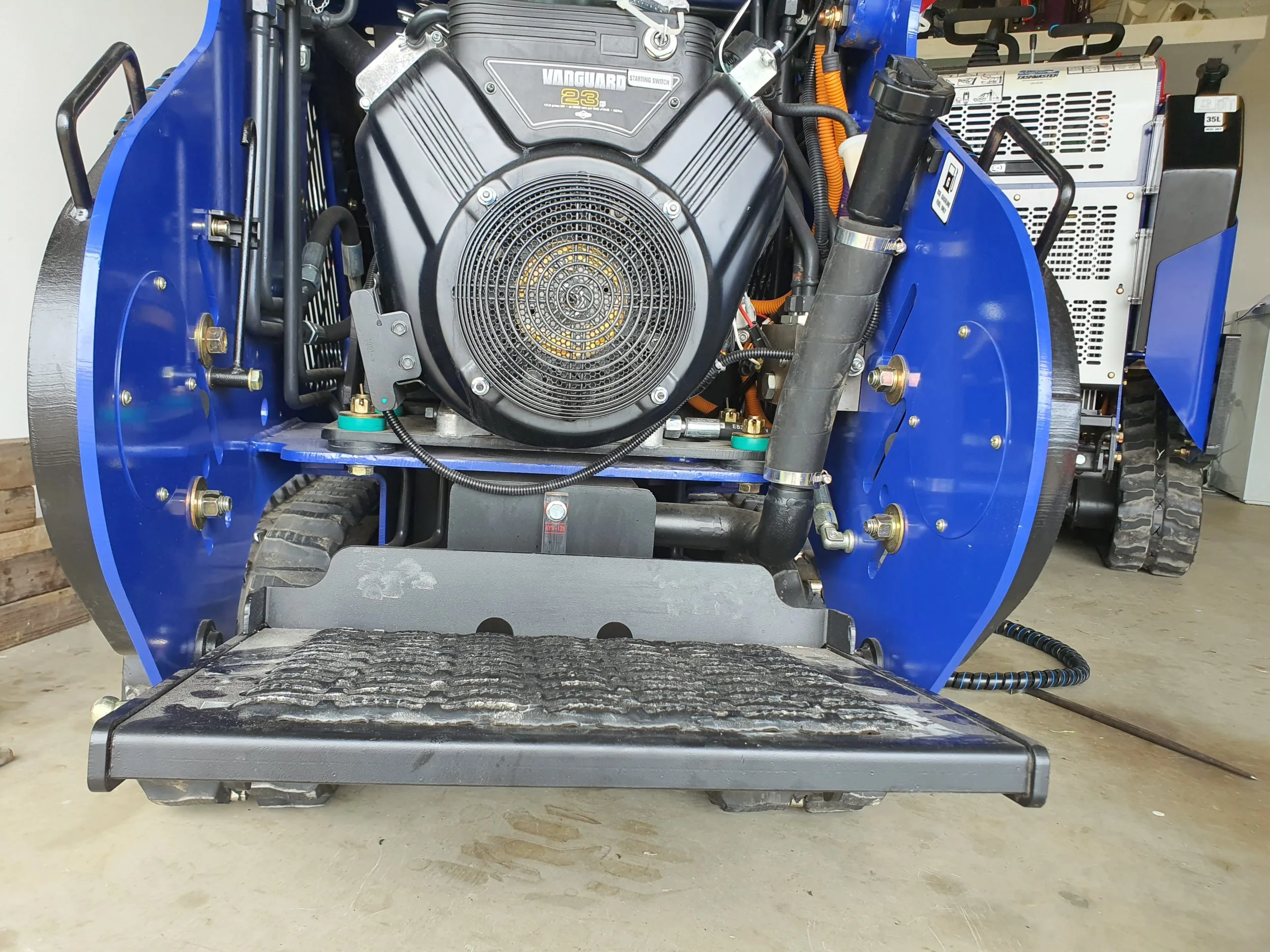

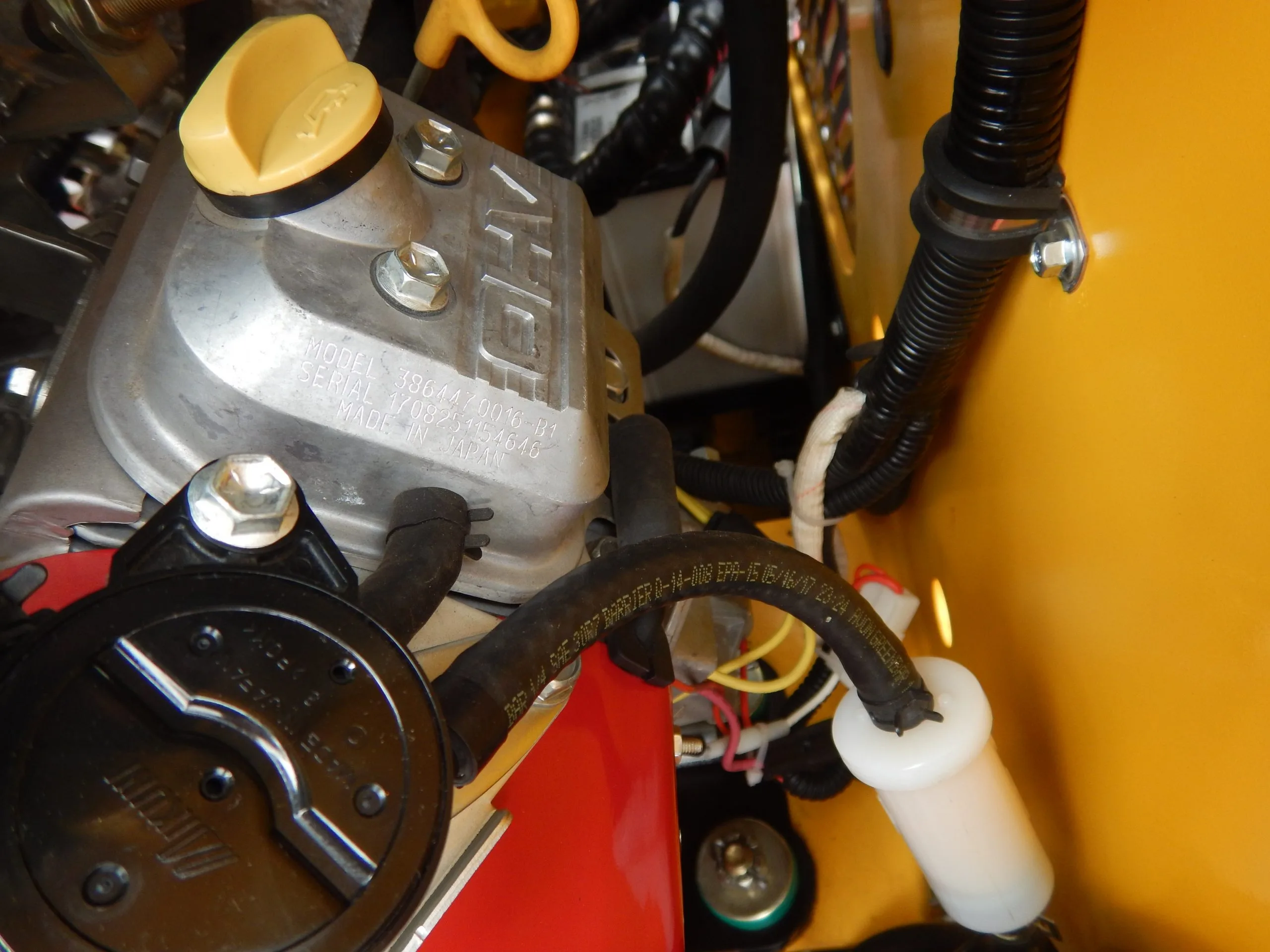

  • Proven Reliable American B&A Engine
  • Cooling Fan for Australian Conditions

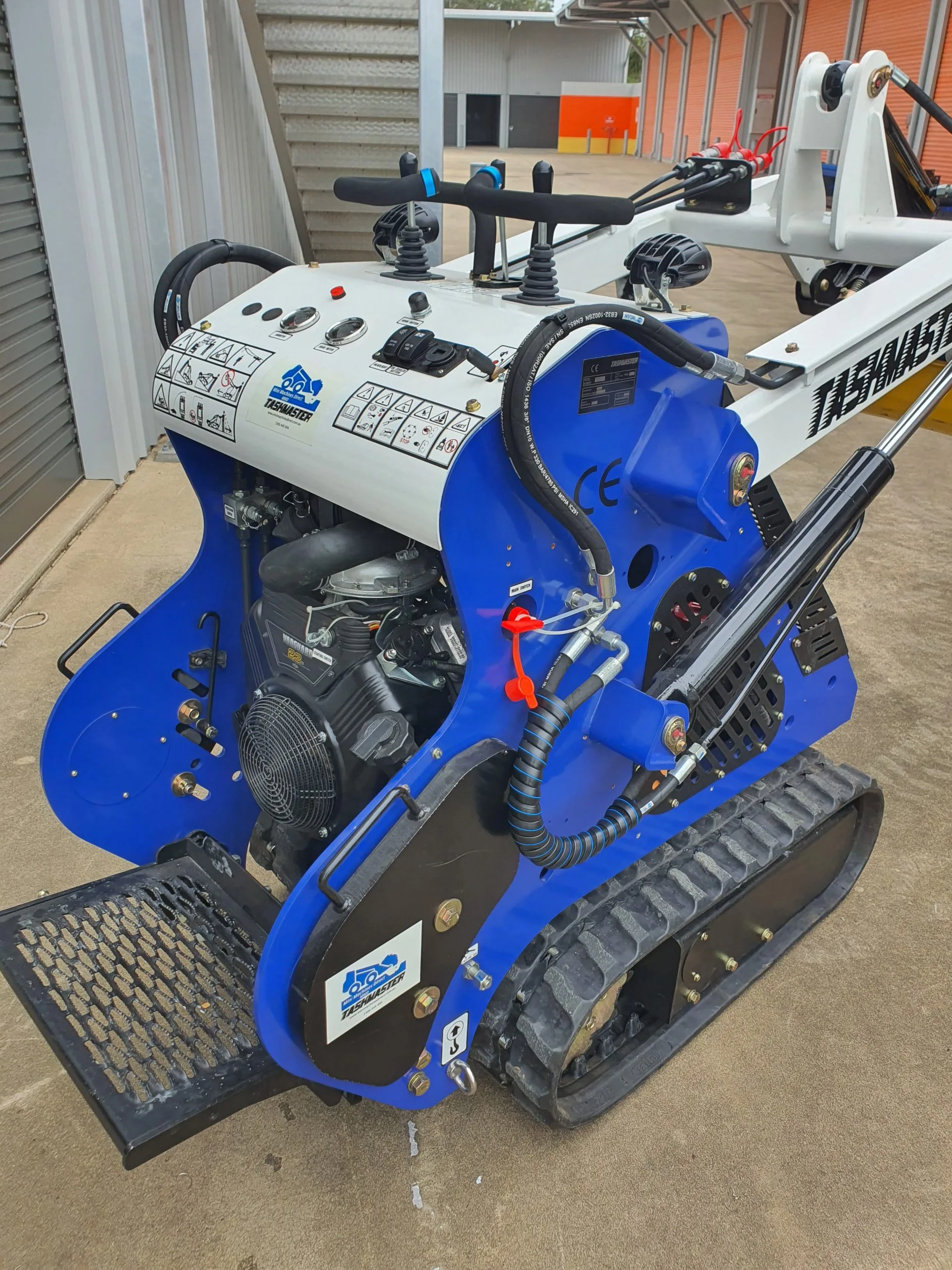

  • Left view
  • Tough Hydraulically Tightened Tracks
  • Large Diameter Hydraulic Cylinder for Exception Power

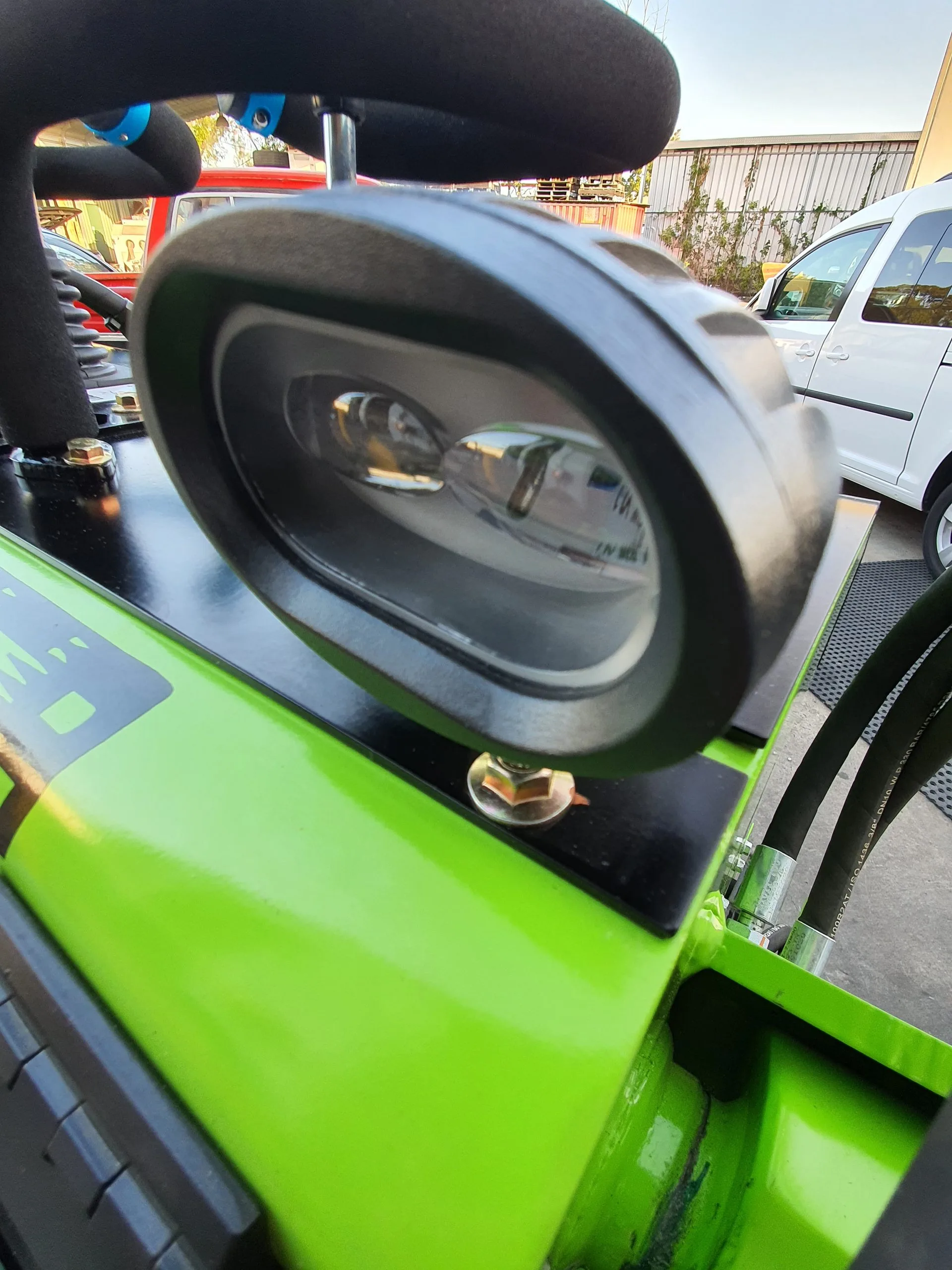

  • LED Head Lights for Safety
  • Counter Weights for Extra Lift Capacity

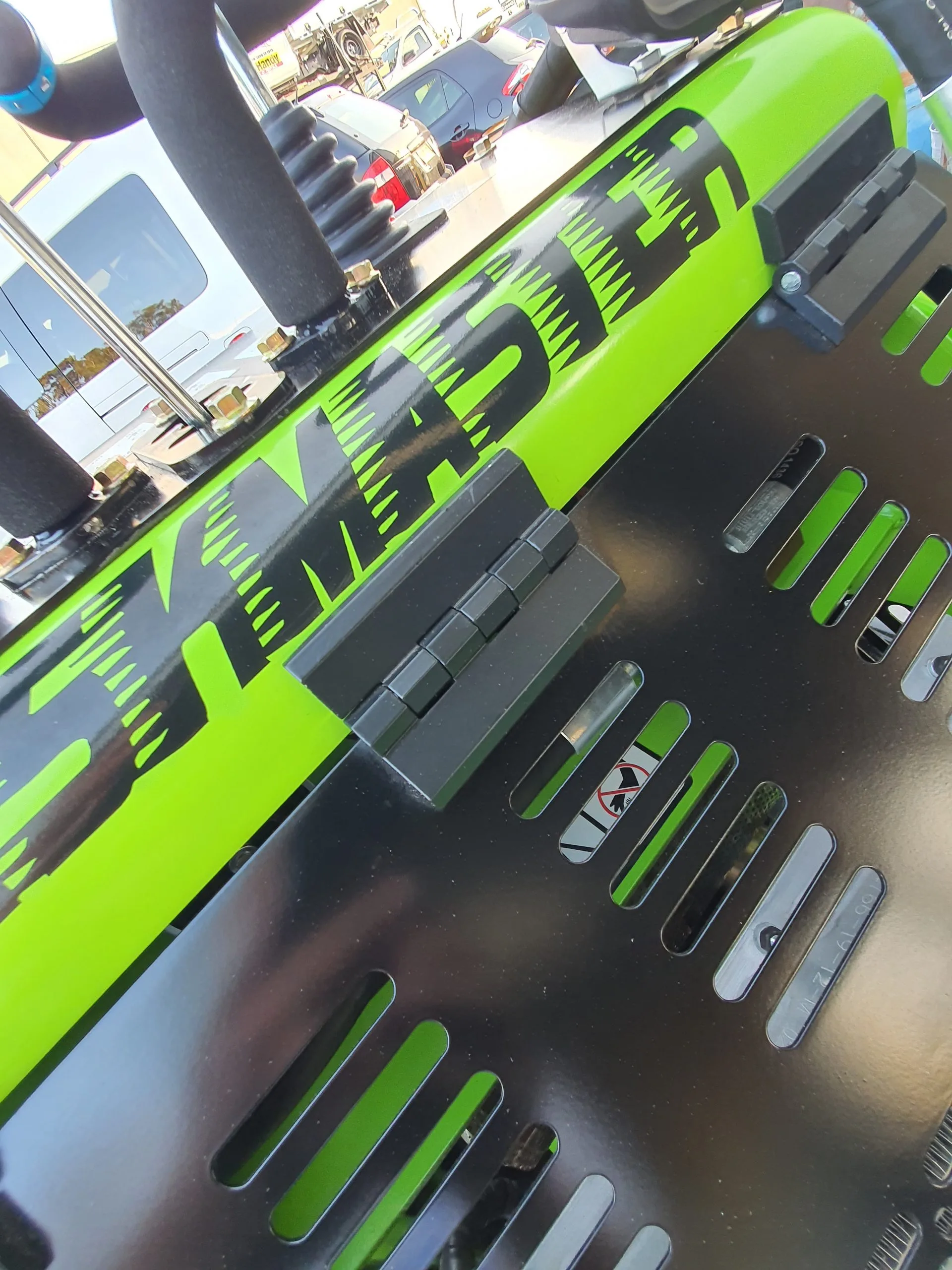

  • 3 Bonnet Hinges for Easy Access

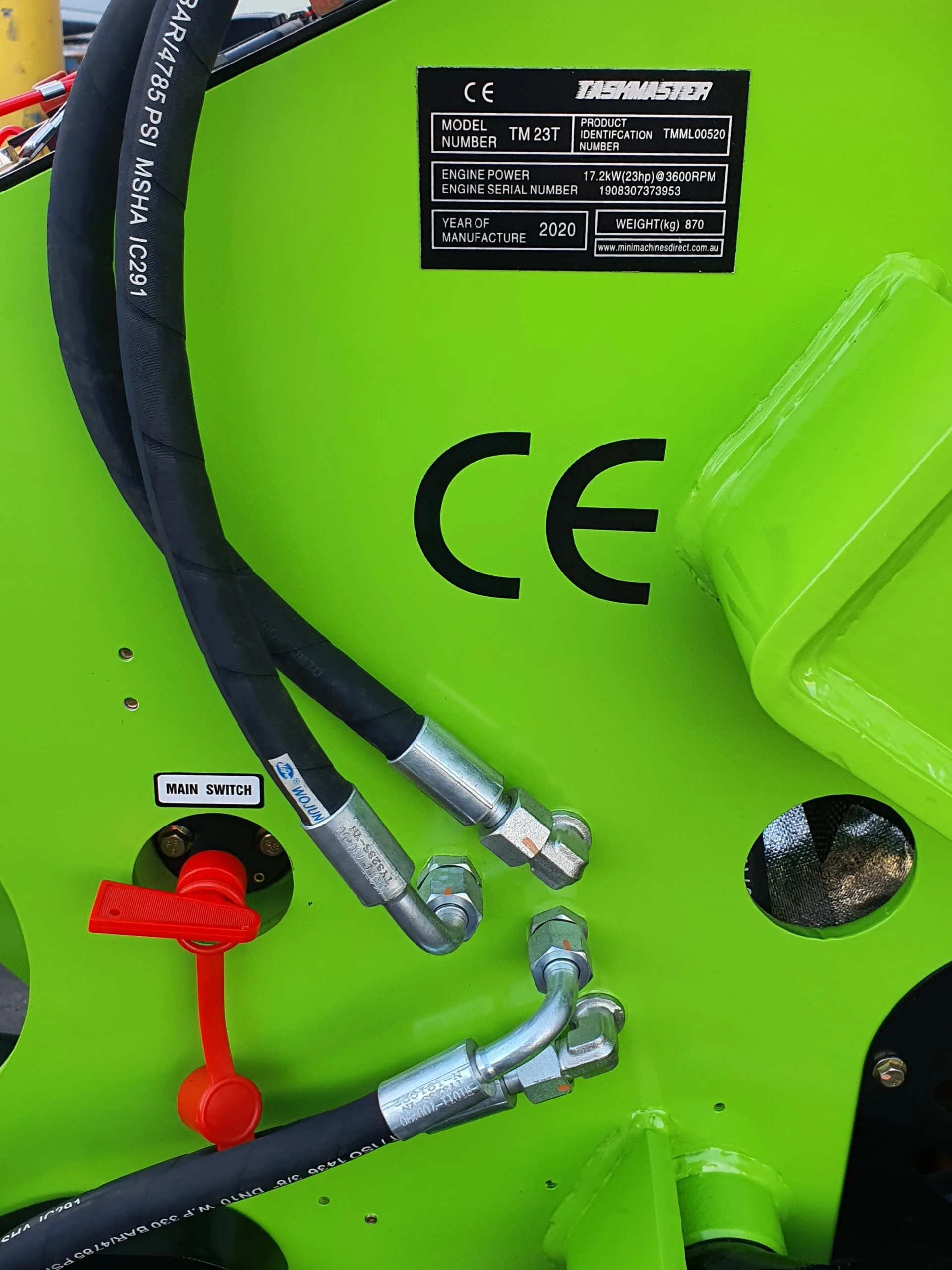

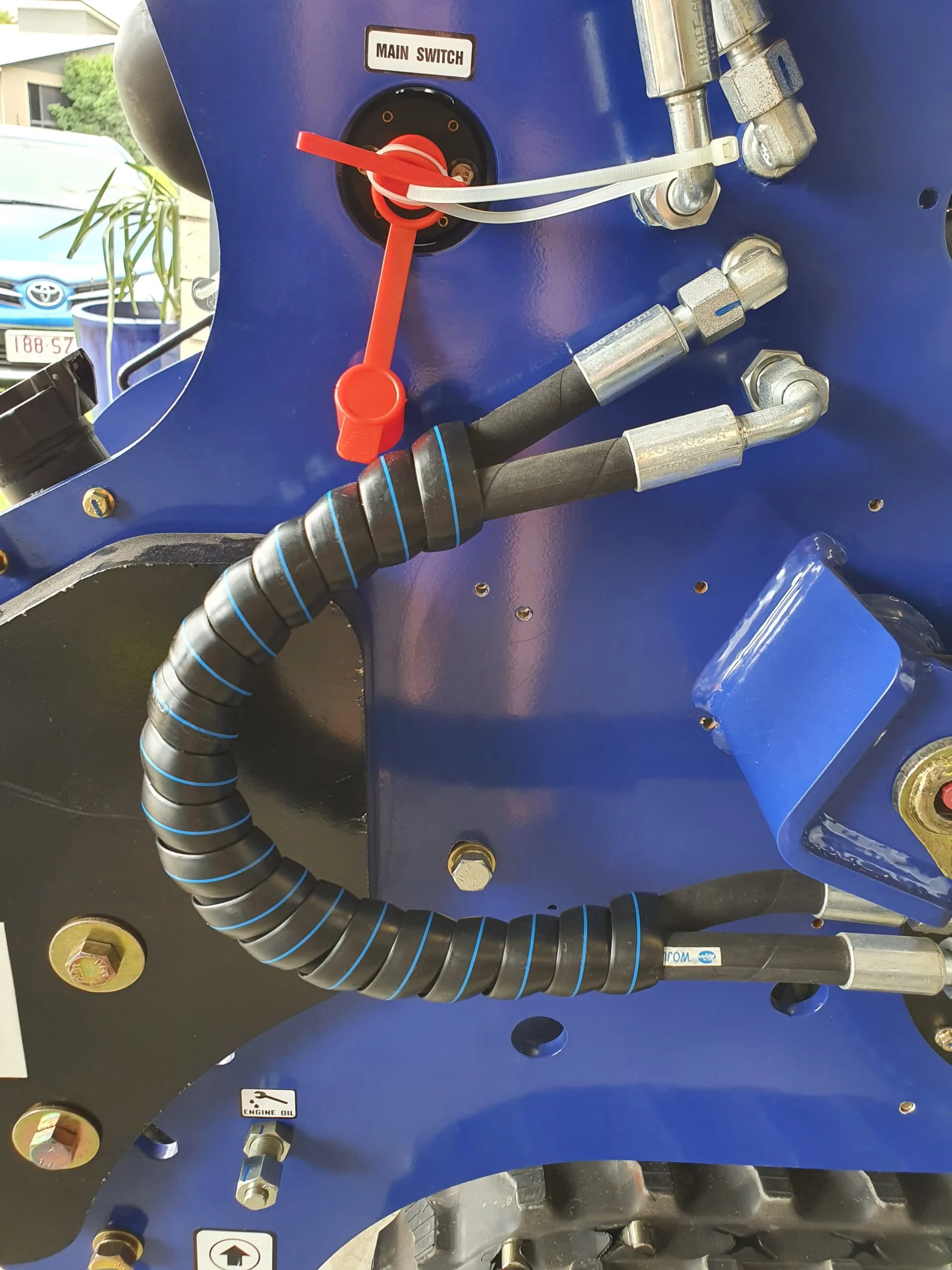

  • Battery Isolation Switch Prevents Battery Discharge
  • Italian 1/2 Inch Couplings
  • 4 Tie Down Locations for Transporting

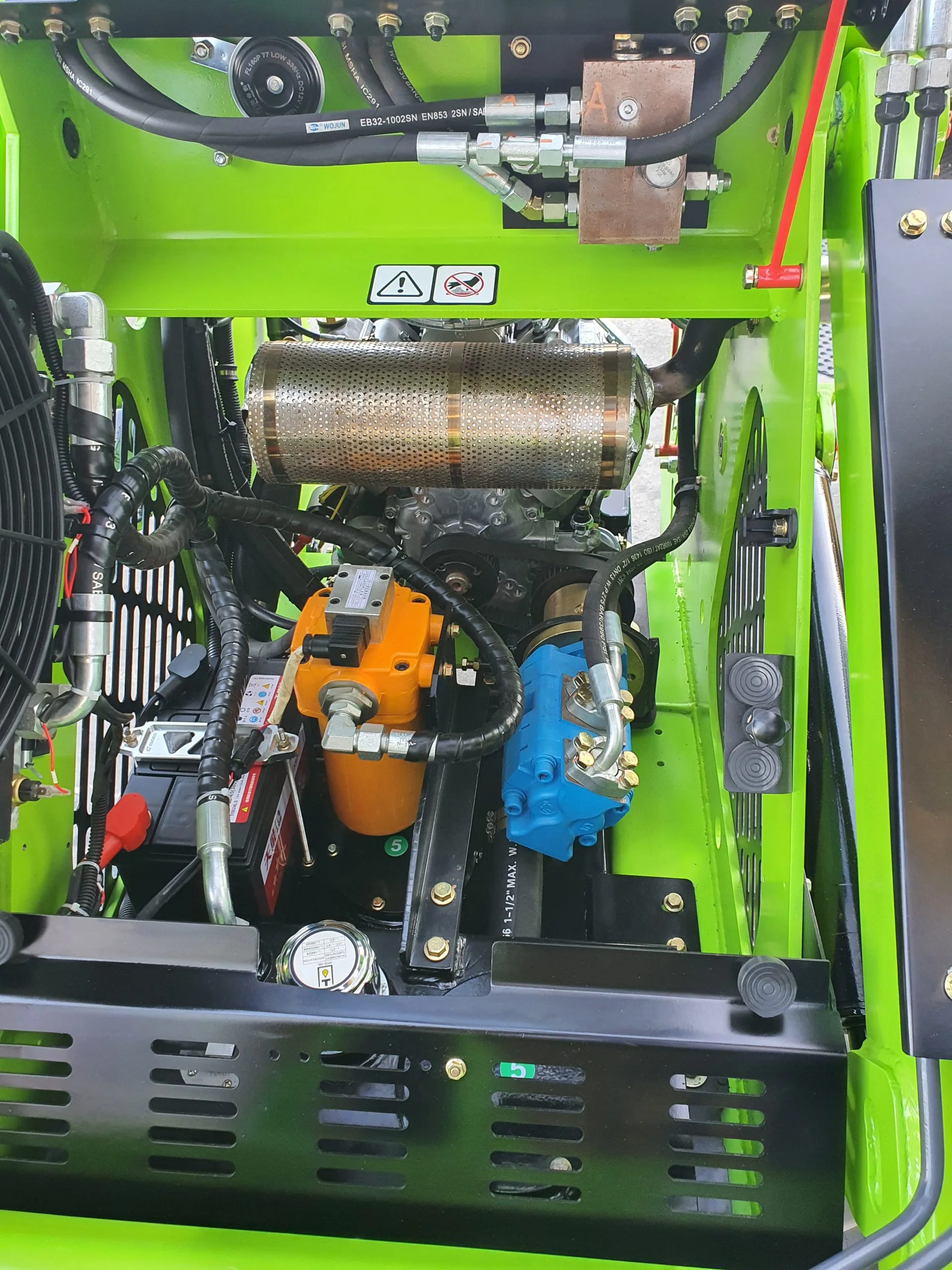

  • Super Easy Access to Components

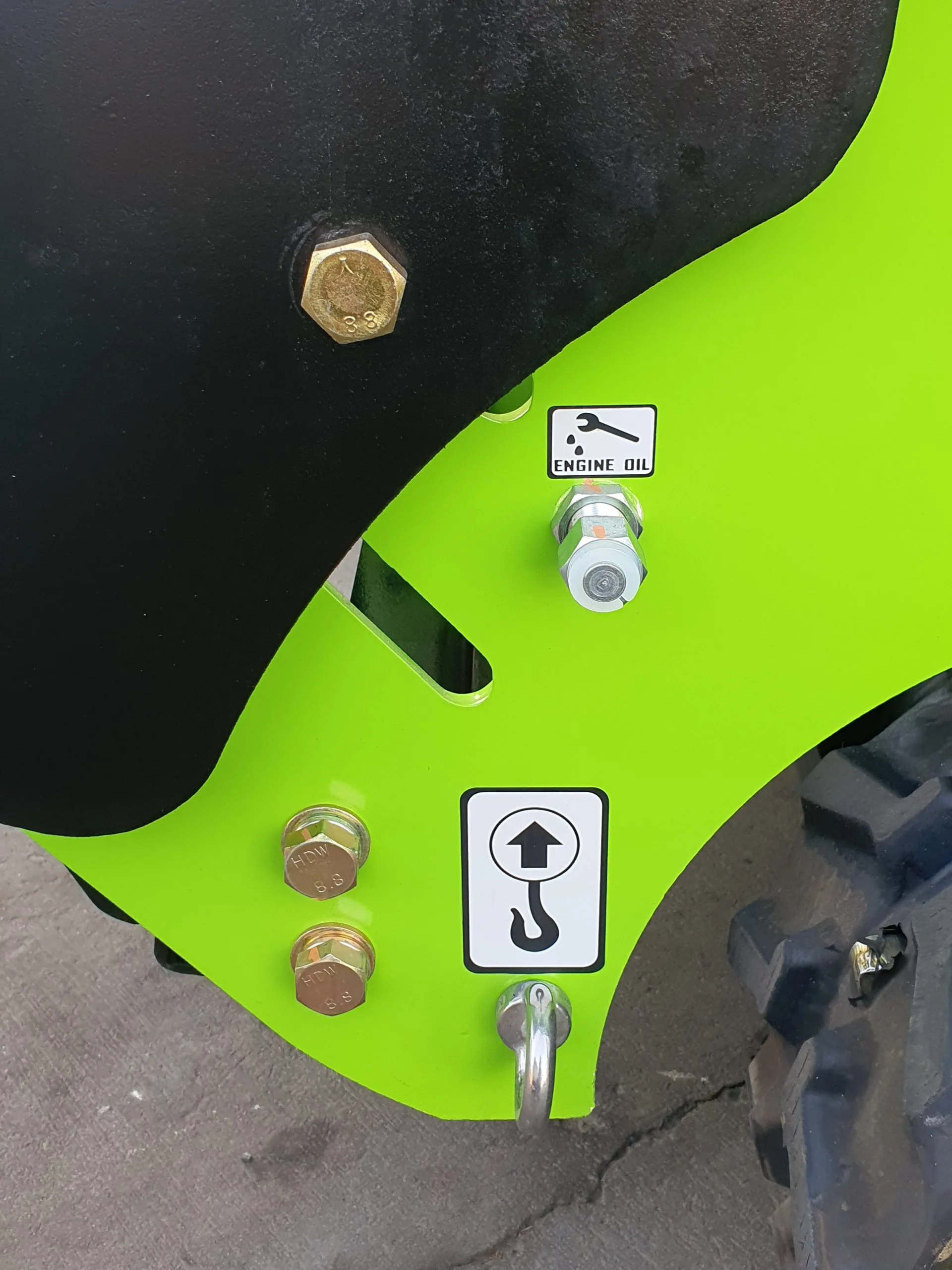

  • Remote Engine Oil Drain Hose

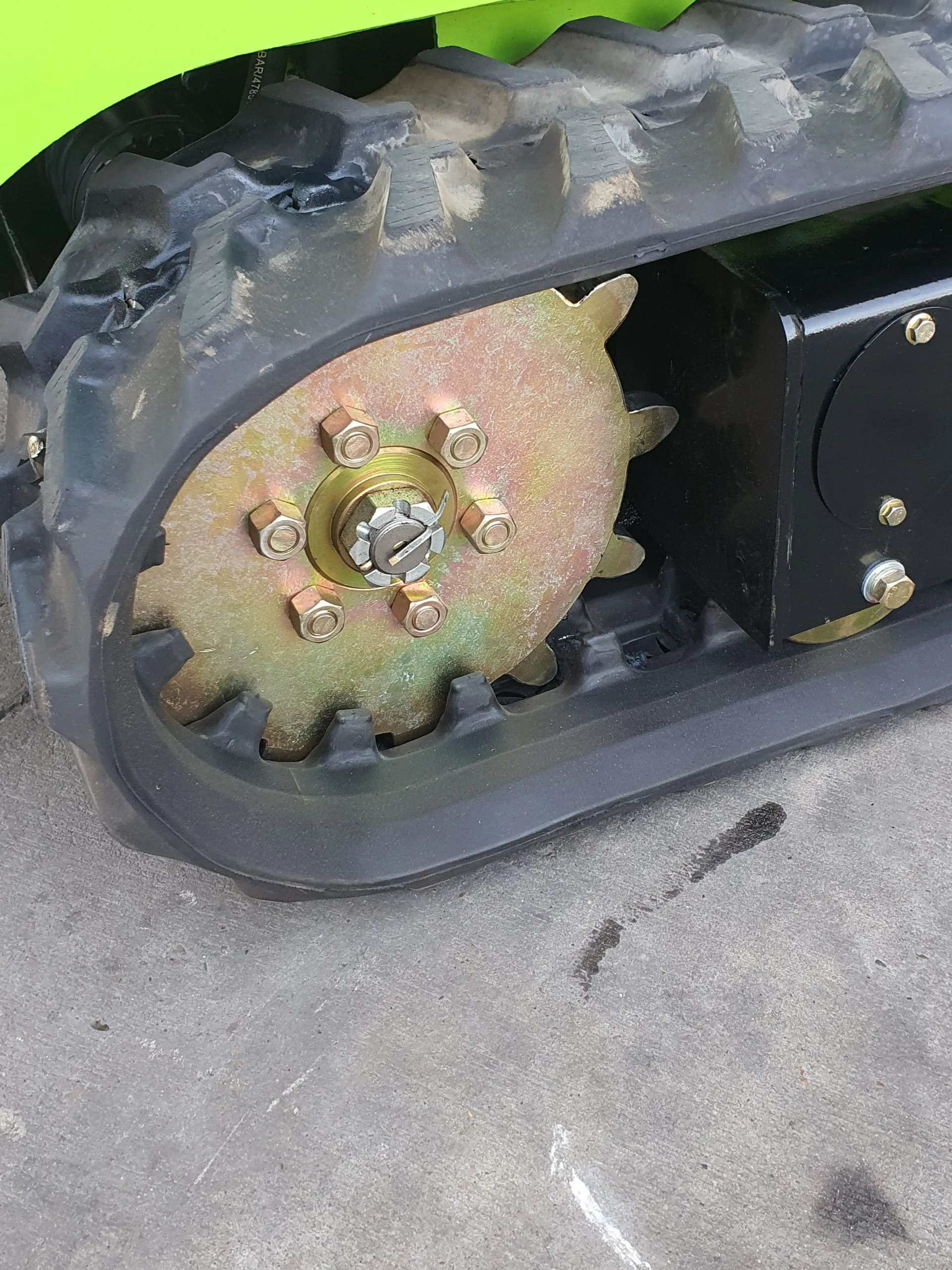

  • Anodized Heat Treated Sprockets Reduce Wear

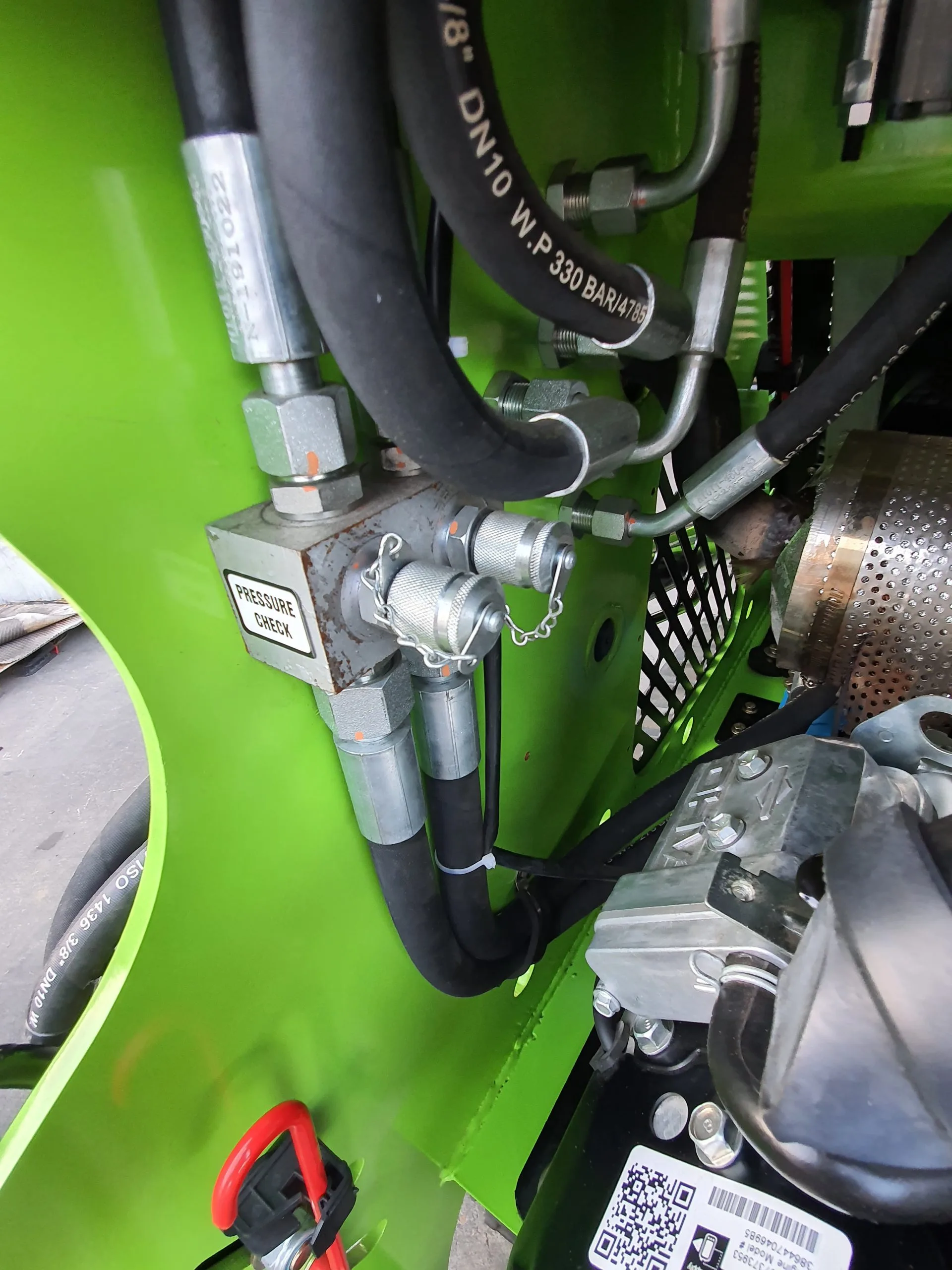

  • Diagnostic Test Pressure Points

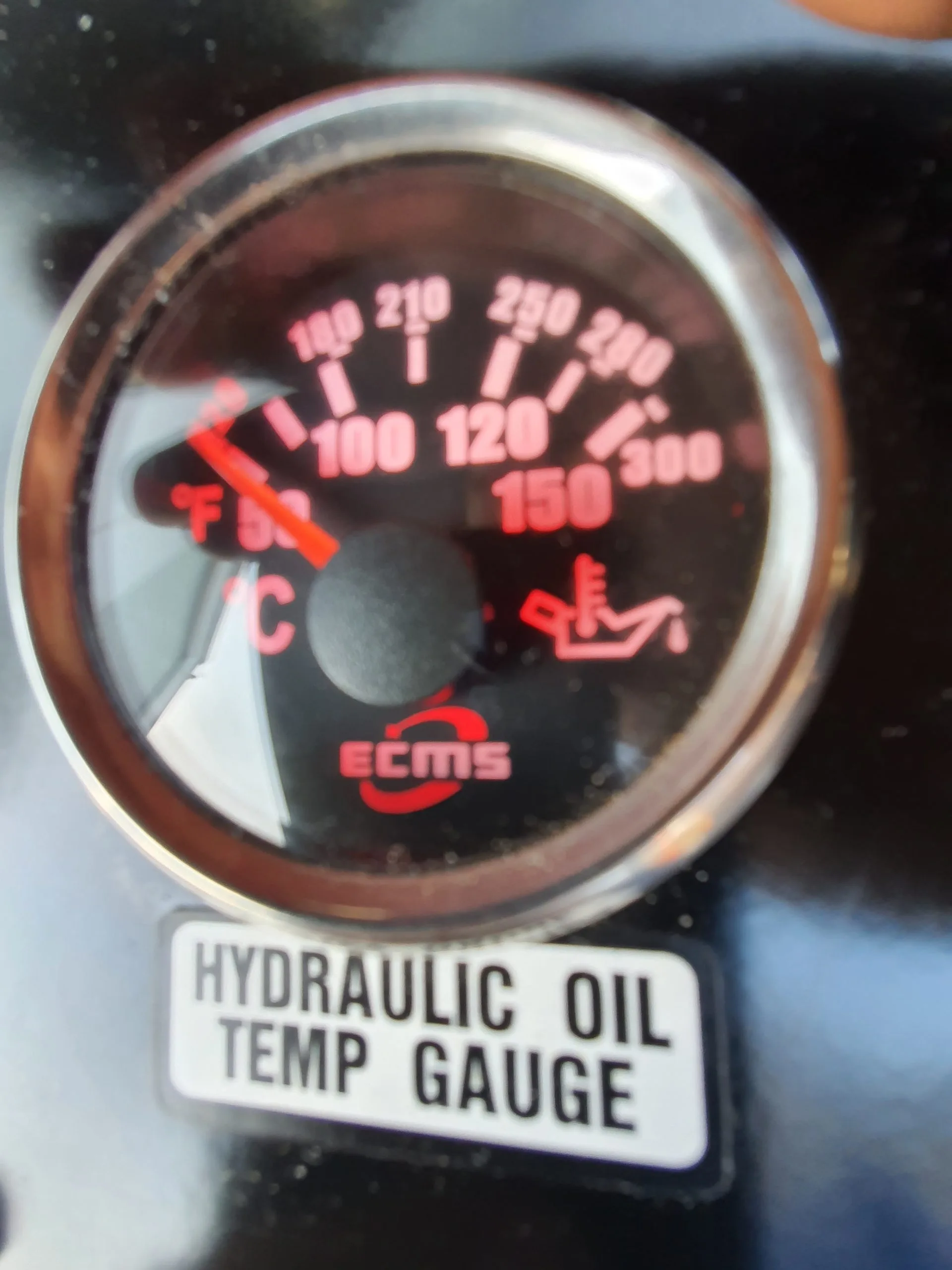

  • Hydraulic Oil Temp Gauge
  • Joystick Control
  • Lockable Bonnet and Fuel Caps
  • Craig Conducting a Factory Inspection
  • American B&S Engine – 3 year Warranty
  • Bronze Bushes for Bucket Arms
  • Crock Mesh Operators Platform – Reduces Dirt Build Up
  • Vertical Attachment Latch System
  • Precision Plasma Cut Components
  • One ‘Taskmaster’ for a Range of Tasks
  • Suspension Operators Platform

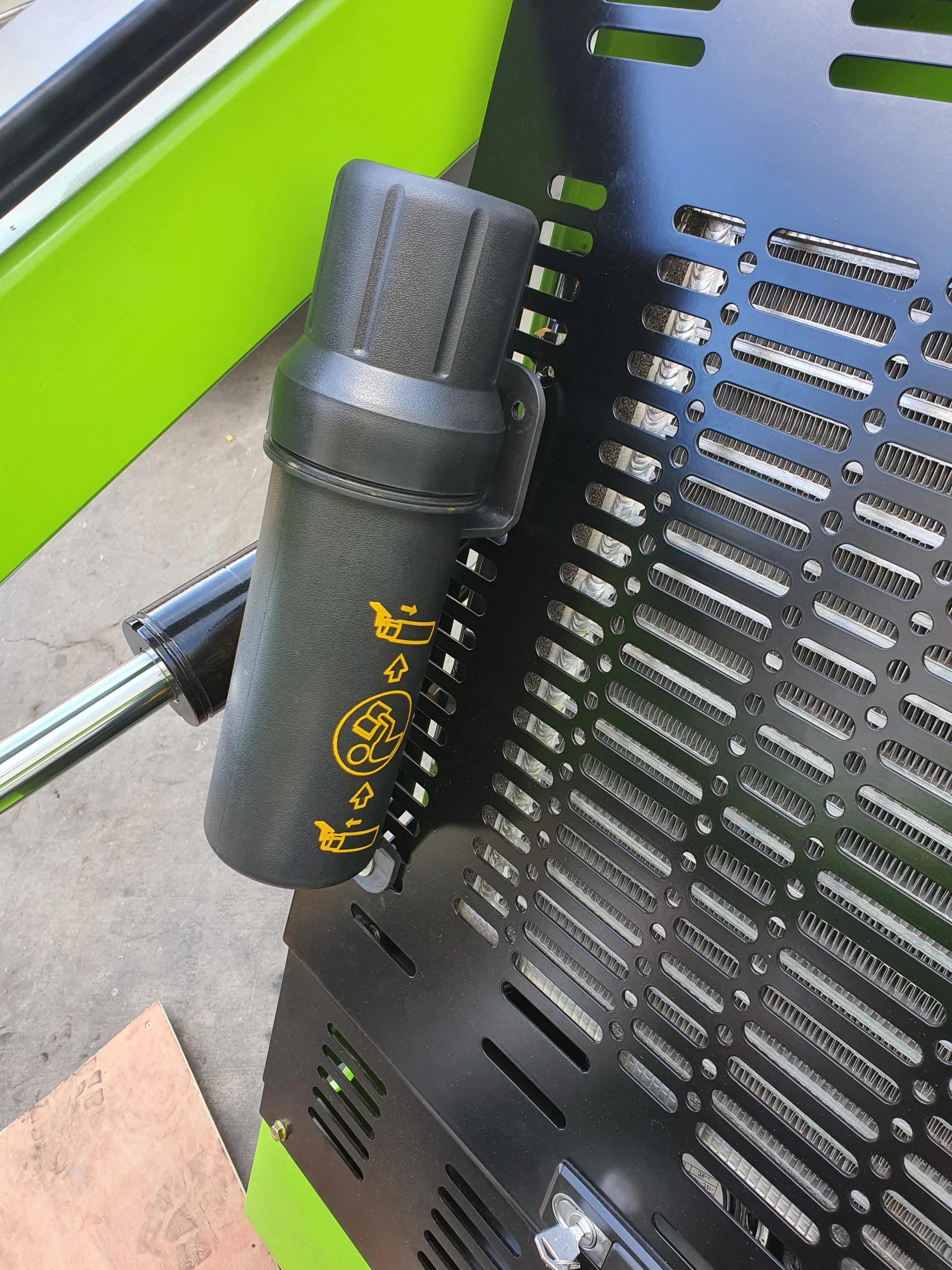

  • Service Manual Holder
  • 4 in 1 Bucket – Doze, Dig, Dump, Carry, Clamp, Grab, Optional Teeth
  • Lift Arm Float Control – Spread Soil Easily by Back Blading

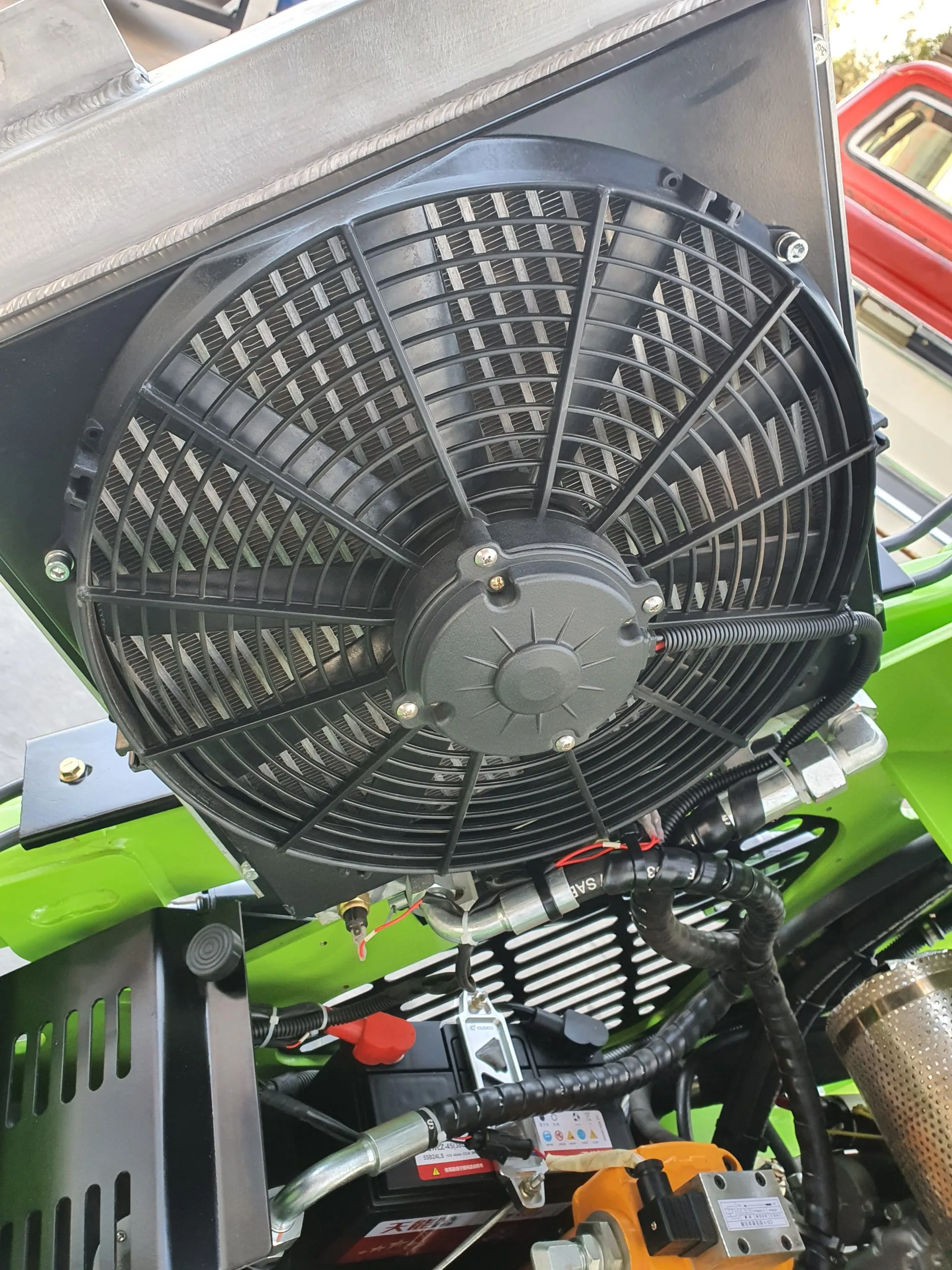

  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Engine and Hydraulic Oil
  • Joystick Steering Control – Manual (pilot joystick optional)
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check
  • Auxiliary Hydraulic Outputs – Operate Many Work Tools

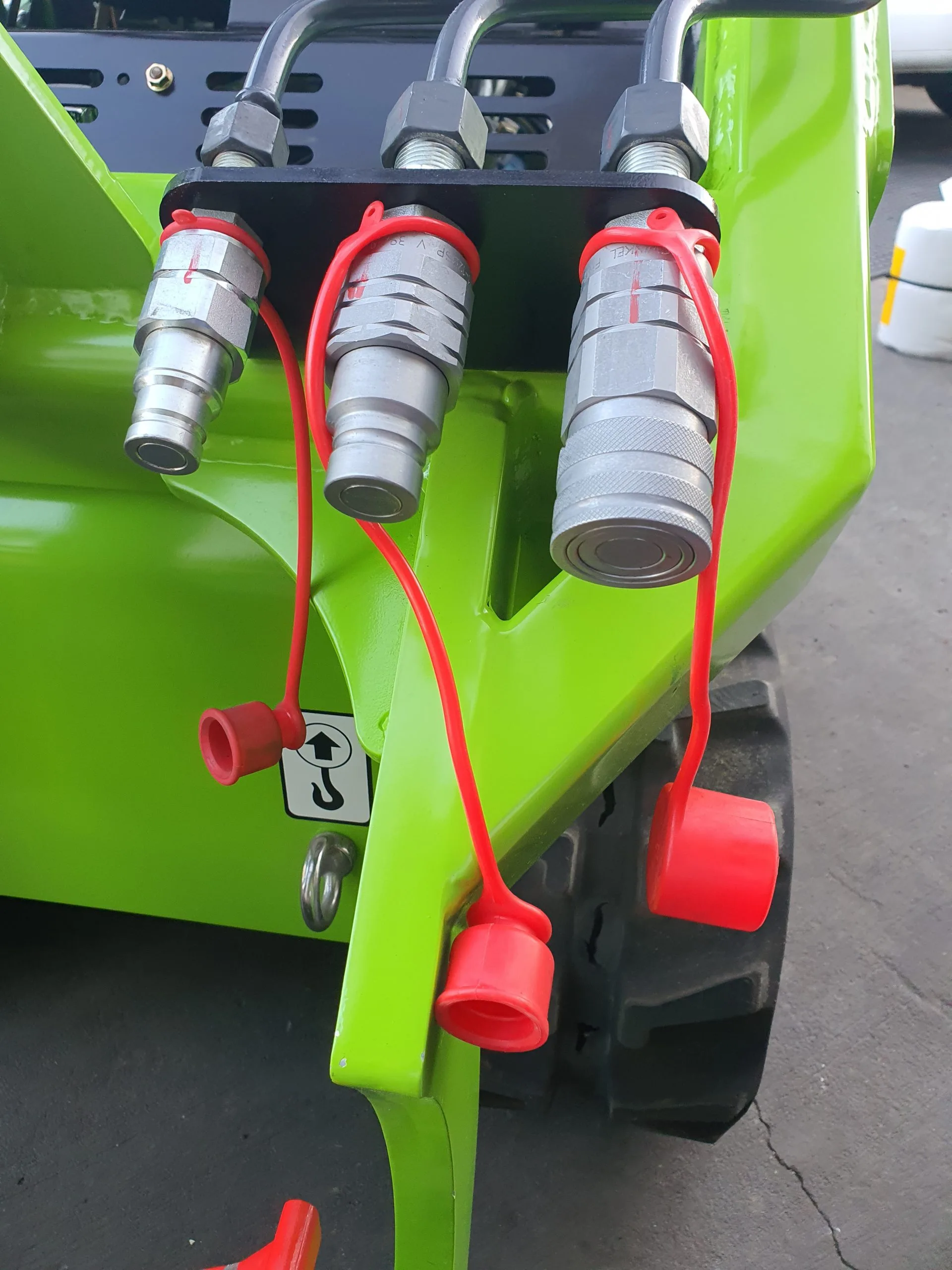

  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish
  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Muffler Insulation – Reduces Under Bonnet Temperature
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power

  • Standard Attachment Mounting Plate – Fits Most Common Attachments
  • Operator Platform Suspension – Provides Great Visibility and Operator Comfort
  • Counterweights – Added Lift Capacity
  • Gauges and Warning Lights – Machine Protection
  • Service Kit and Tools – Maintenance items

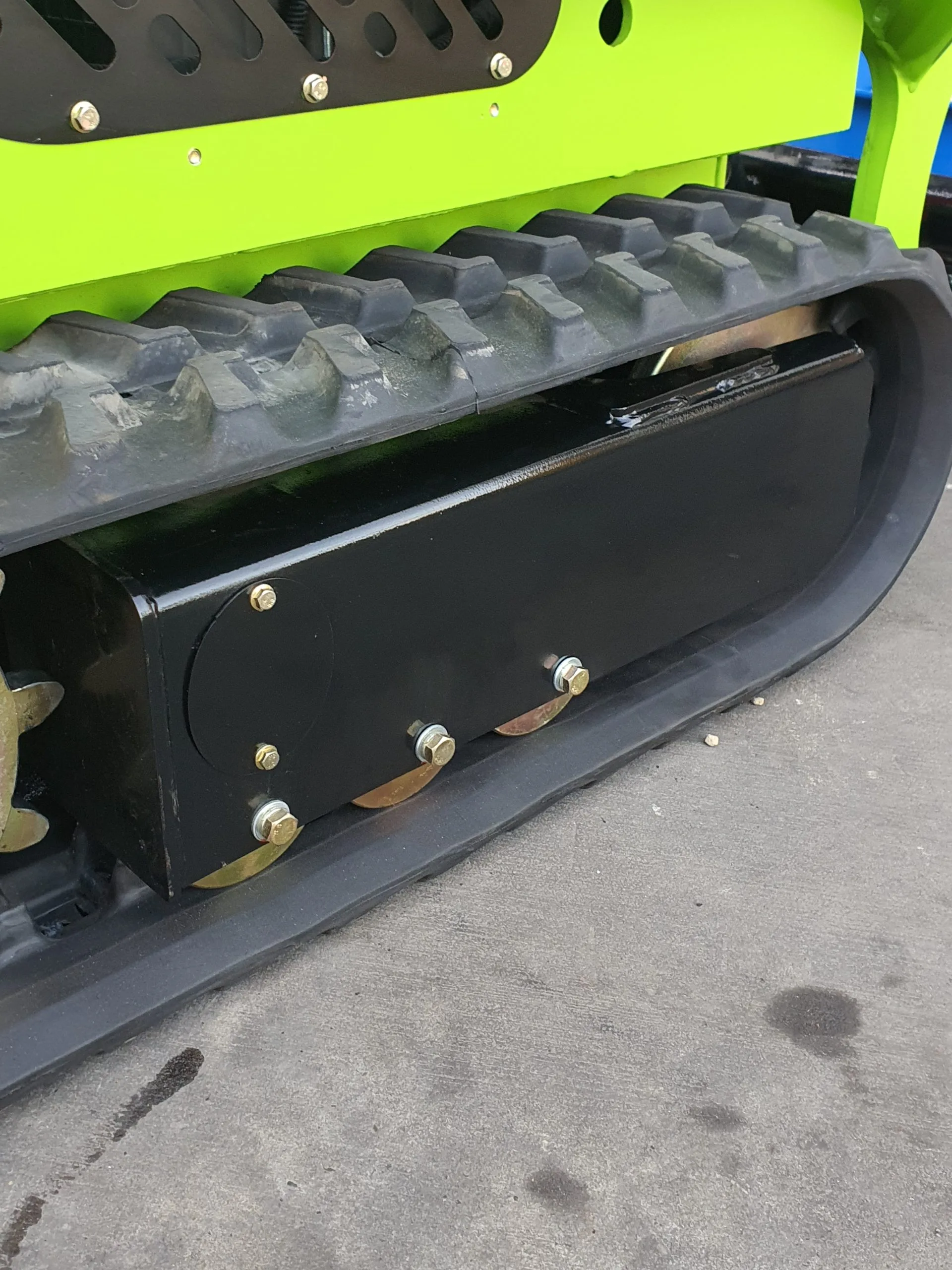

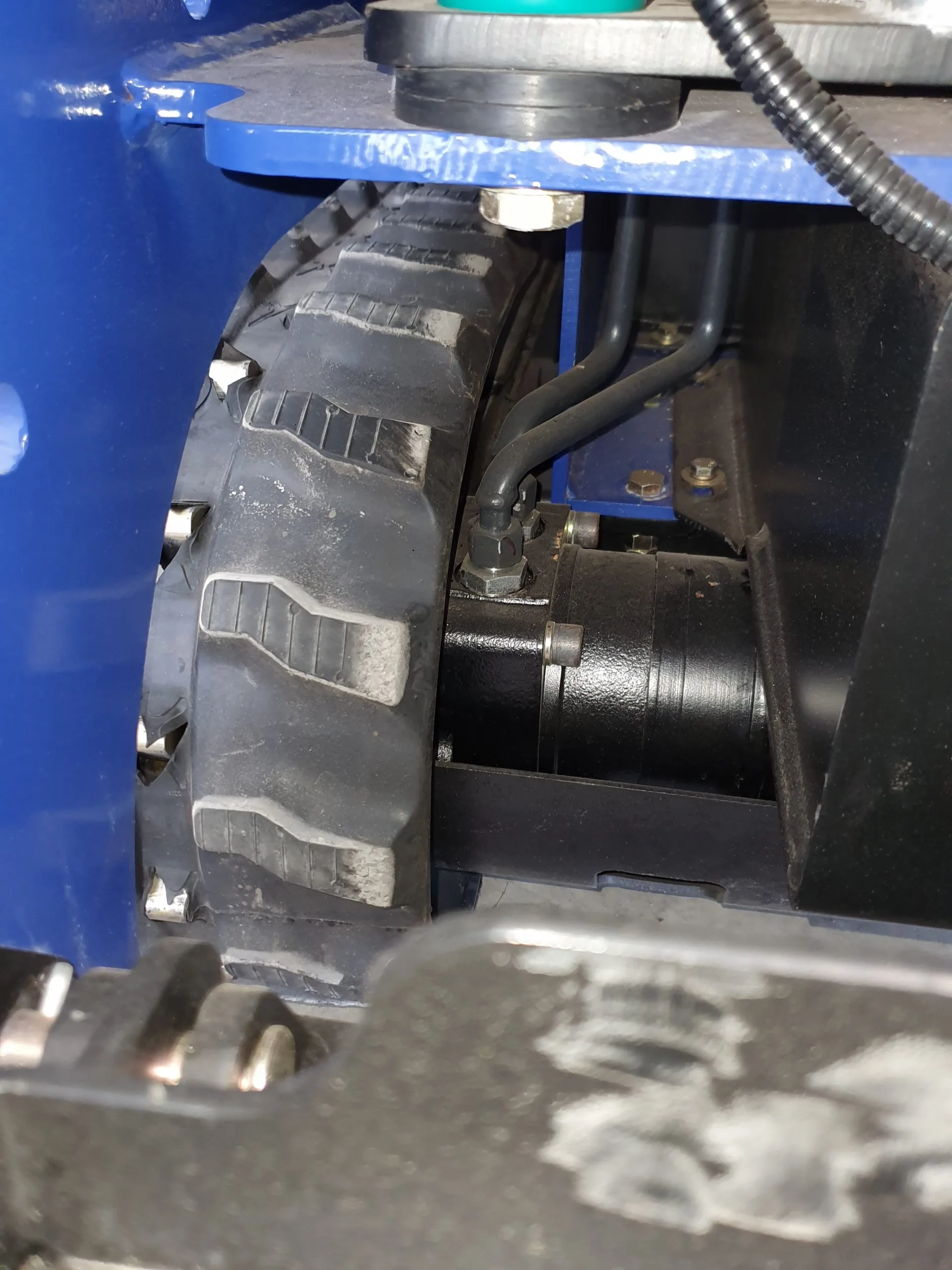

  • Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – More Traction and Lighter Foot Print
  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life
  • Tie Down Locations – Safe Security for Transporting

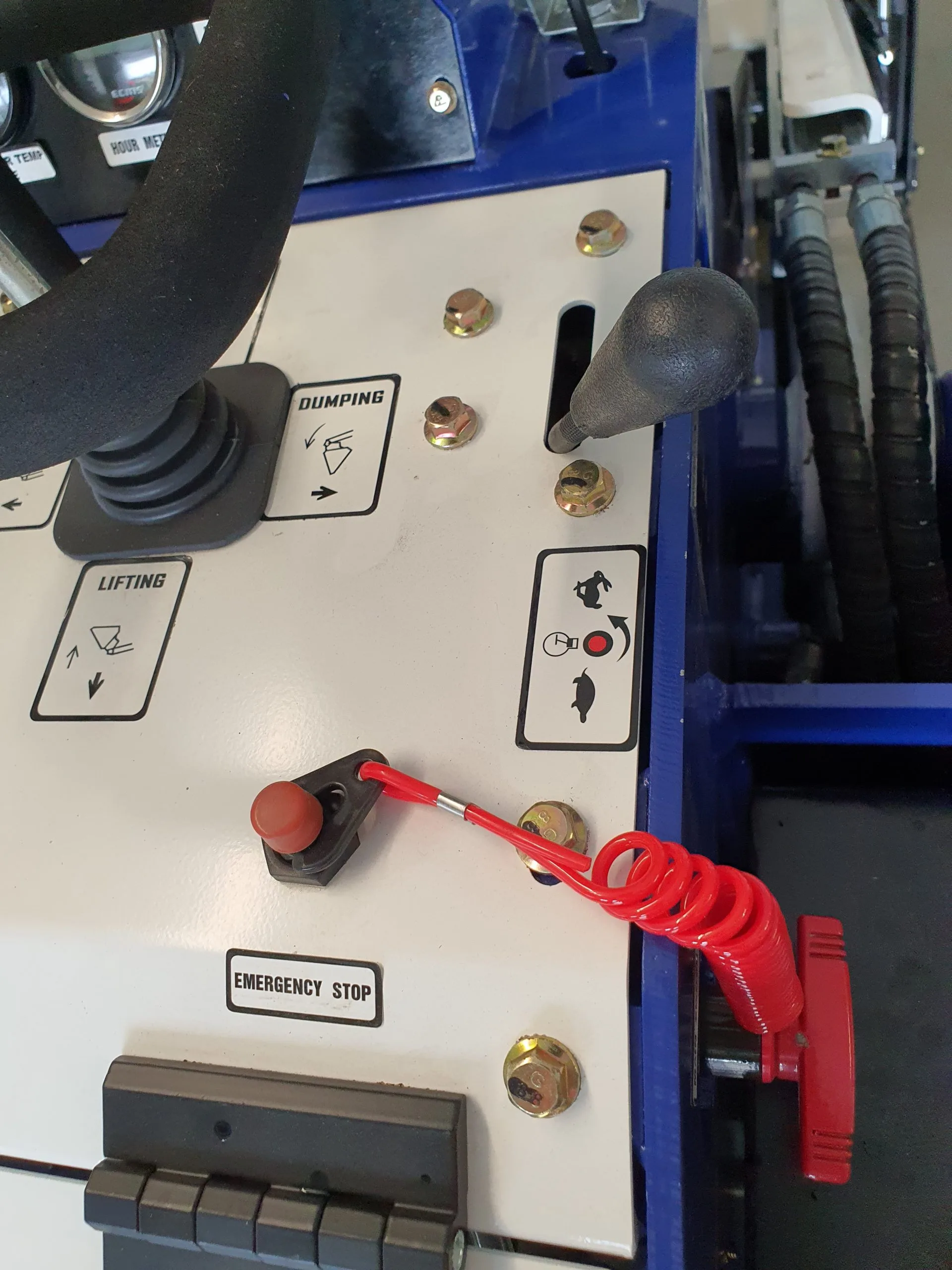

  • Emergency Stop Switch – Operator safety

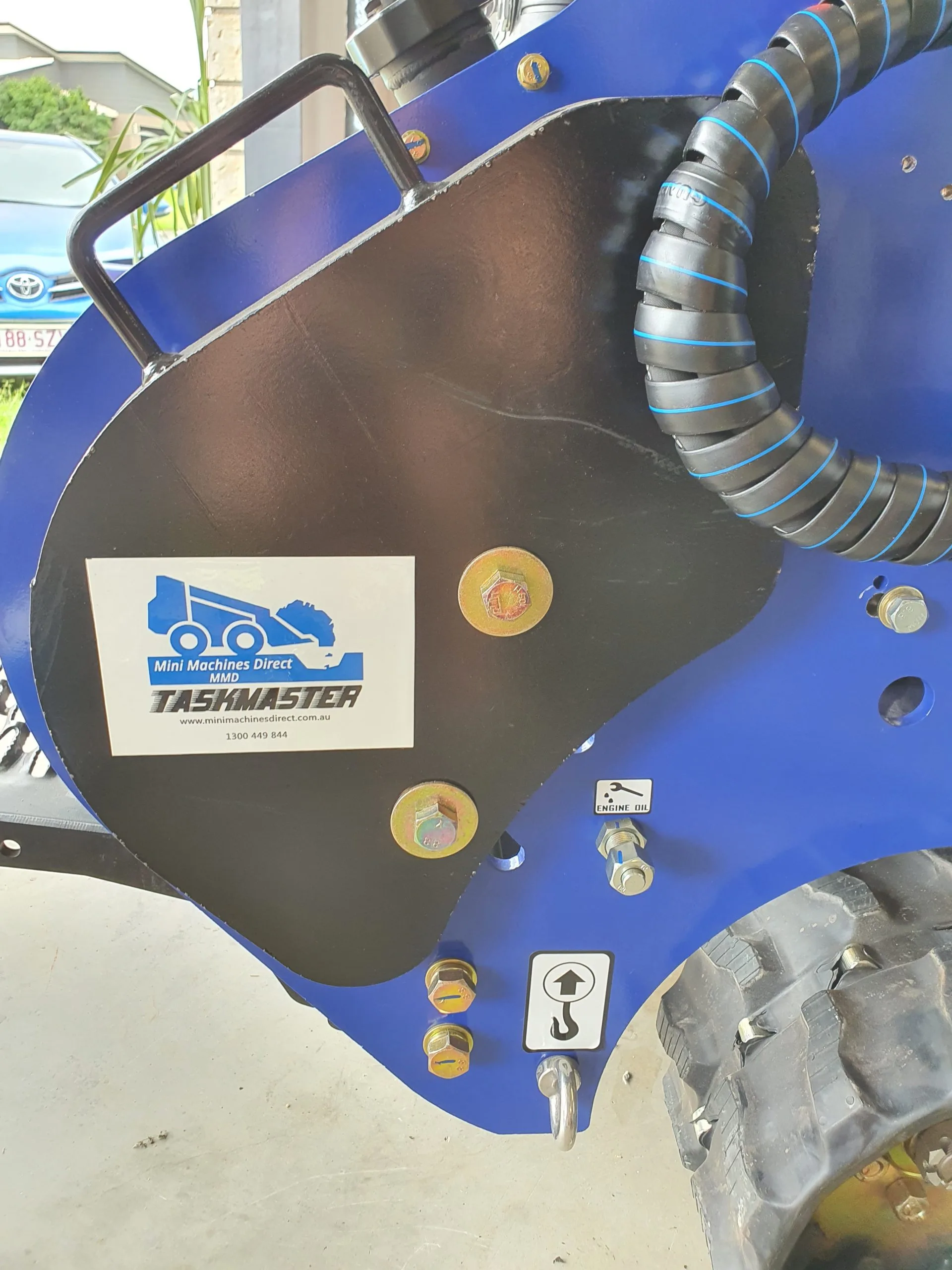

  • Lift Hook Locations – Safe Lifting of Machine
  • Key Locks on Access Panels and Fuel Caps – For Security
  • Operators Manual – Water Proof Holder for Safety and Protection
  • Reverse Stop Panel – Operator Safety
  • LED Lights – Day and Night Vision

SPECIFICATIONS:

DIMENSIONS:

ENGINE
Engine MakeBriggs and Stratton Vanguard ‘V’ Twin (USA)
Fuel TypePetrol
Rated Power23 hp (17.1 kw)
Electrical12 Volt
HYDRAULUIC SYSTEM
Pump BrandPermco (USA)
Valve BrandHydro Control Joystick (Italian)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
CoolerAlloy Radiator
DRIVING SYSTEM
Motor BrandDanfoss (Danish)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
Speed6 Km/h
AUX CIRCUIT
Valve BrandTrinity Flat Faced Couplers (Italian)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
FLUID CAPACITIES
Fuel 30 L Diesel
Hydraulic Oil30 L
Engine Oil1.5 L
Coolant
RATED LOAD
50% of Tip Capacity300 kg (Optional Counter Weight 600 kg)
35% of Tip Capacity240 kg (Optional Counter Weight 420 kg)

DIMENTIONS
Height to Bucket Hinge Pin1914 mm
Width840 mm
Weight870 kg
Height Max2452 mm
Height Min 1370 mm
Length with Bucket 2170 mm
Length without Bucket1740 mm
Wheelbase720 mm
Ground Clearance92 mm
Angle of Departure26 deg

Custom Options

  • Different Tire options available depending on the work site. General Purpose, Mud, Narrow, Turf, Solid.
  • Attachments – Massive Range Ask Us !!
  • Custom Colour.

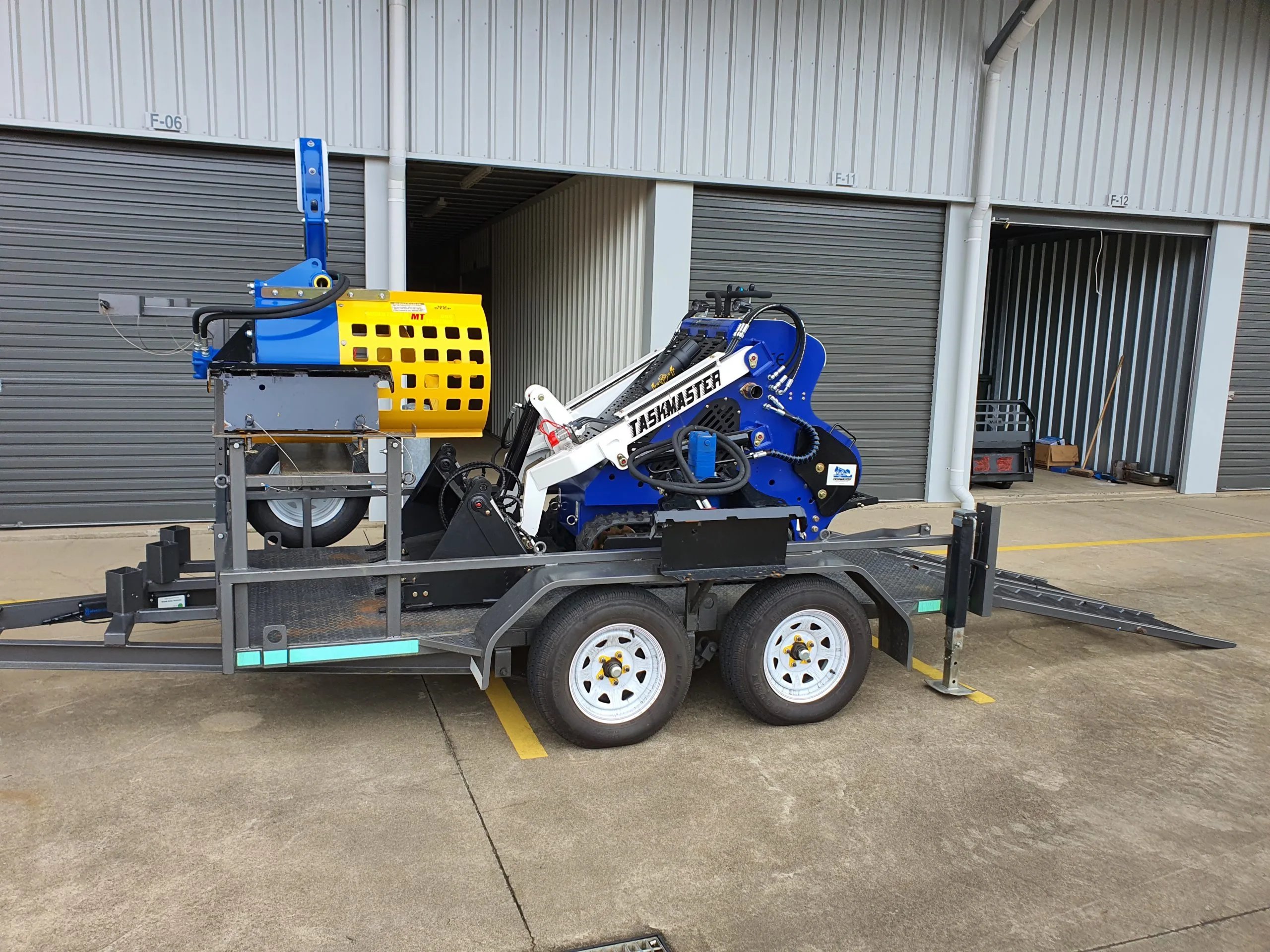

  • Ready to go Machine / Trailer / Work Tool Packages
  • Counter Weights – For Extra Capacity
