Ultimate in Tight Access Loader – 740mm Wide

Designed for Narrow Access!

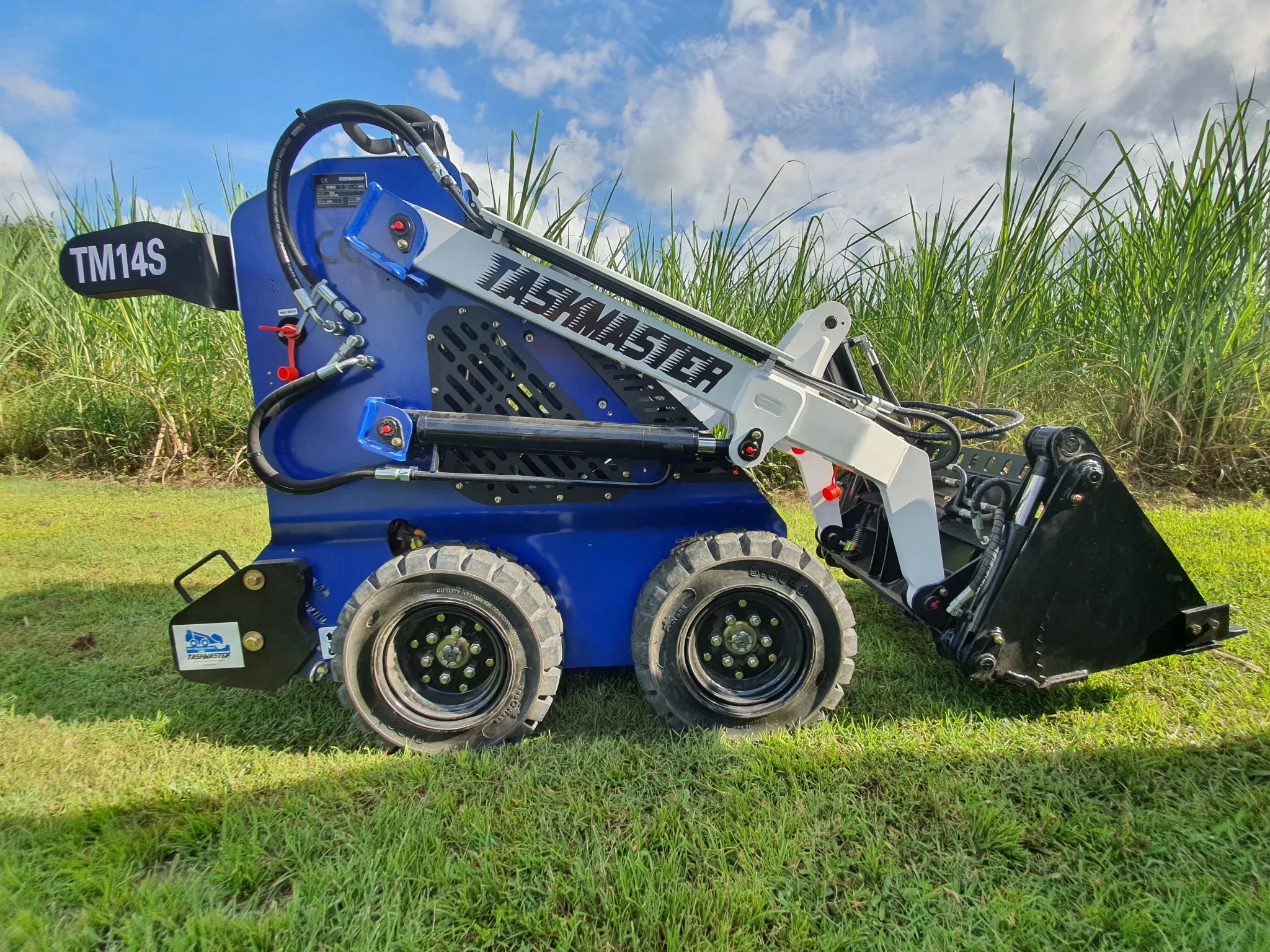

Wheeled 14HP Briggs and Stratton Petrol Engine TM14S

$ 17,000 Including GST
Including 4/1 Bucket ! (Optional Teeth)
*RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

  • TM14S
  • Four Individual Hydraulic Motors

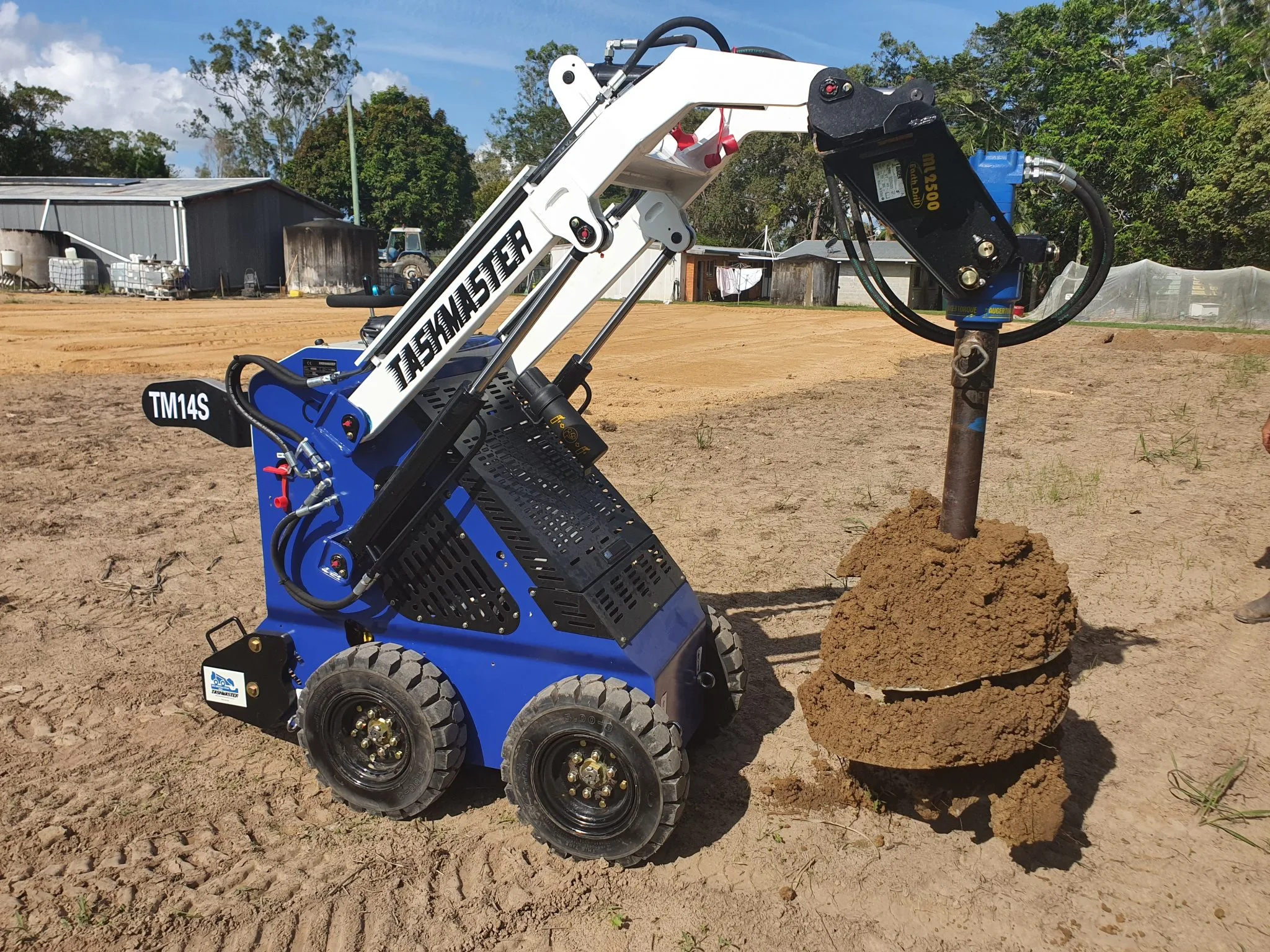

  • 600mm Auger
  • Bucket With Teeth
  • MT900 Trencher
  • Powerful But Small !!
  • Auger Drive No Worries
  • 1850mm Hinge Pin Height
  • 4 in 1 Bucket
  • Only 740mm Wide

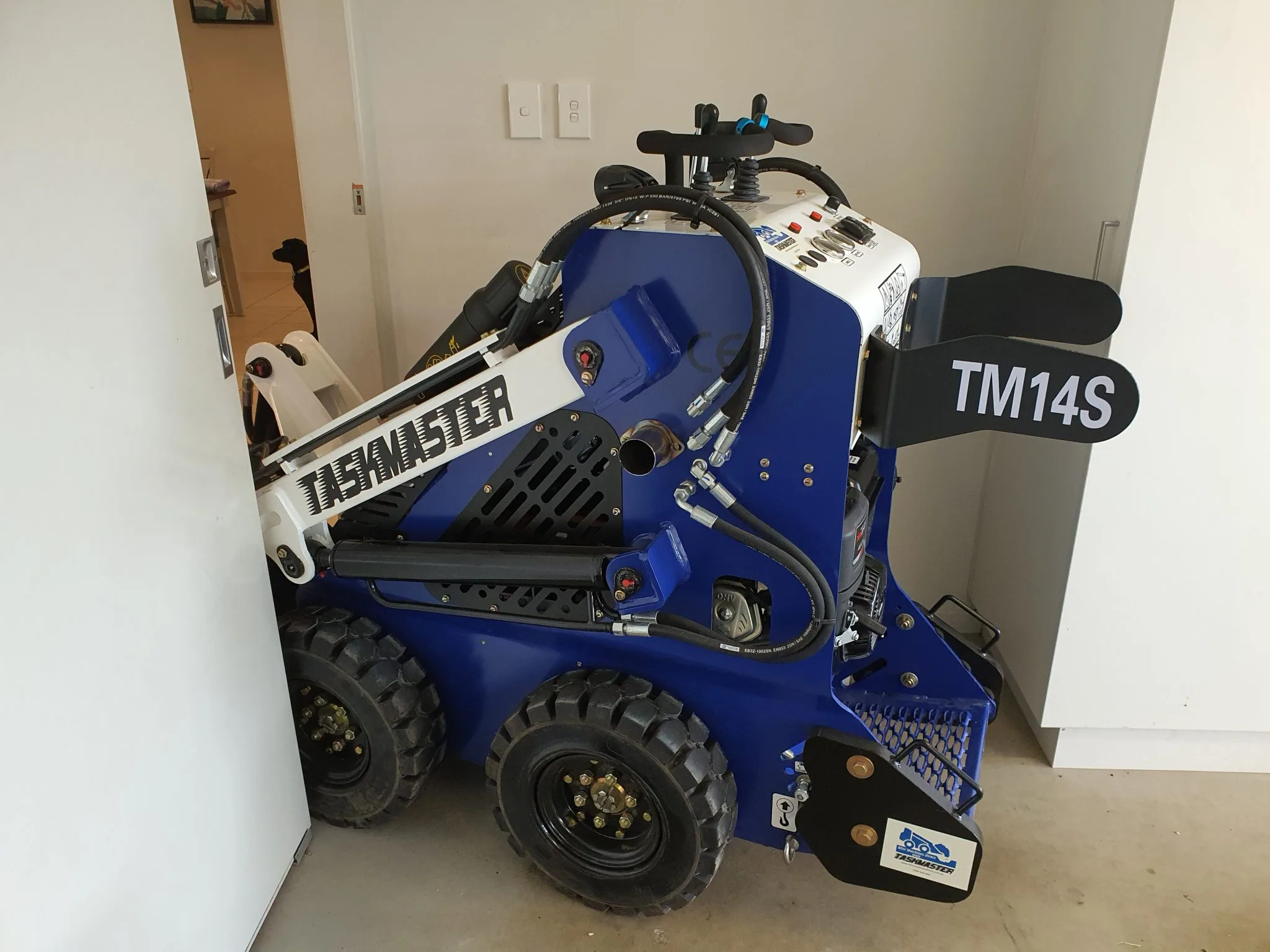

  • Through Narrow Doorways
  • Easy to Operate
  • Quality Valves – Bucket Self Leveling

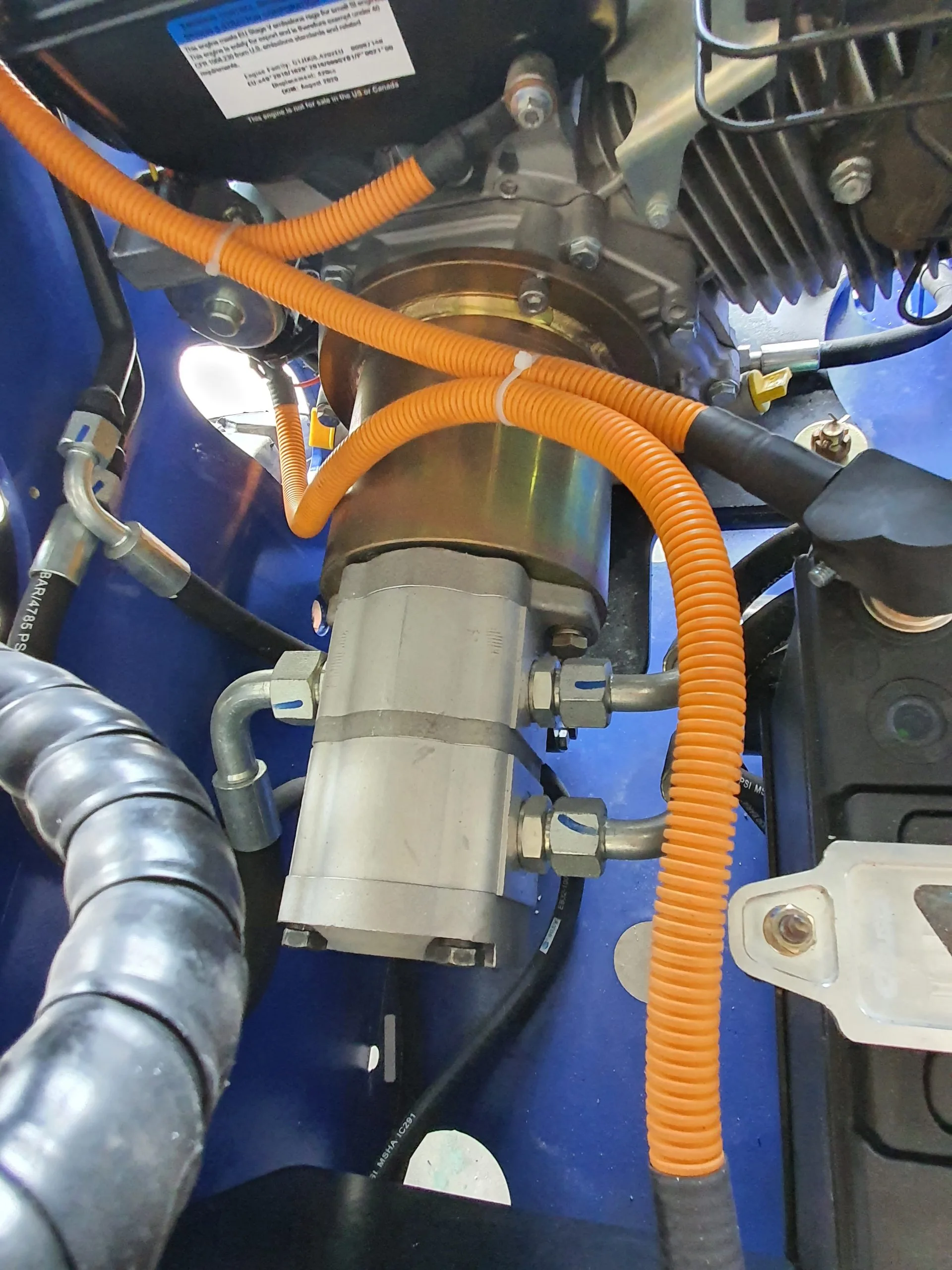

  • Direct Coupling Pump

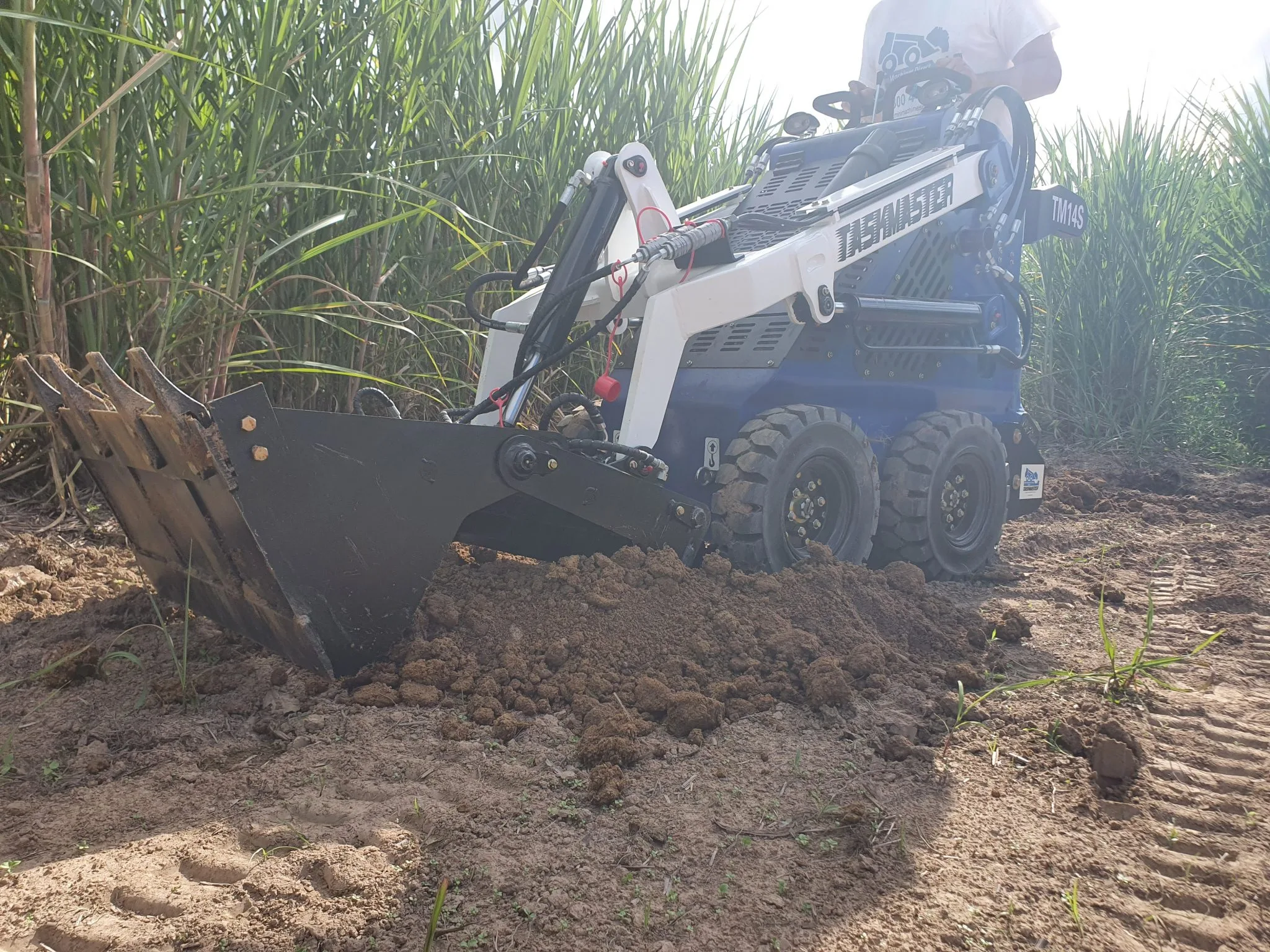

  • Down On The Farm
  • Plenty Of Pushing Power
  • Easy To Operate
  • Counterweights / Oil Drain / Tie Down Points

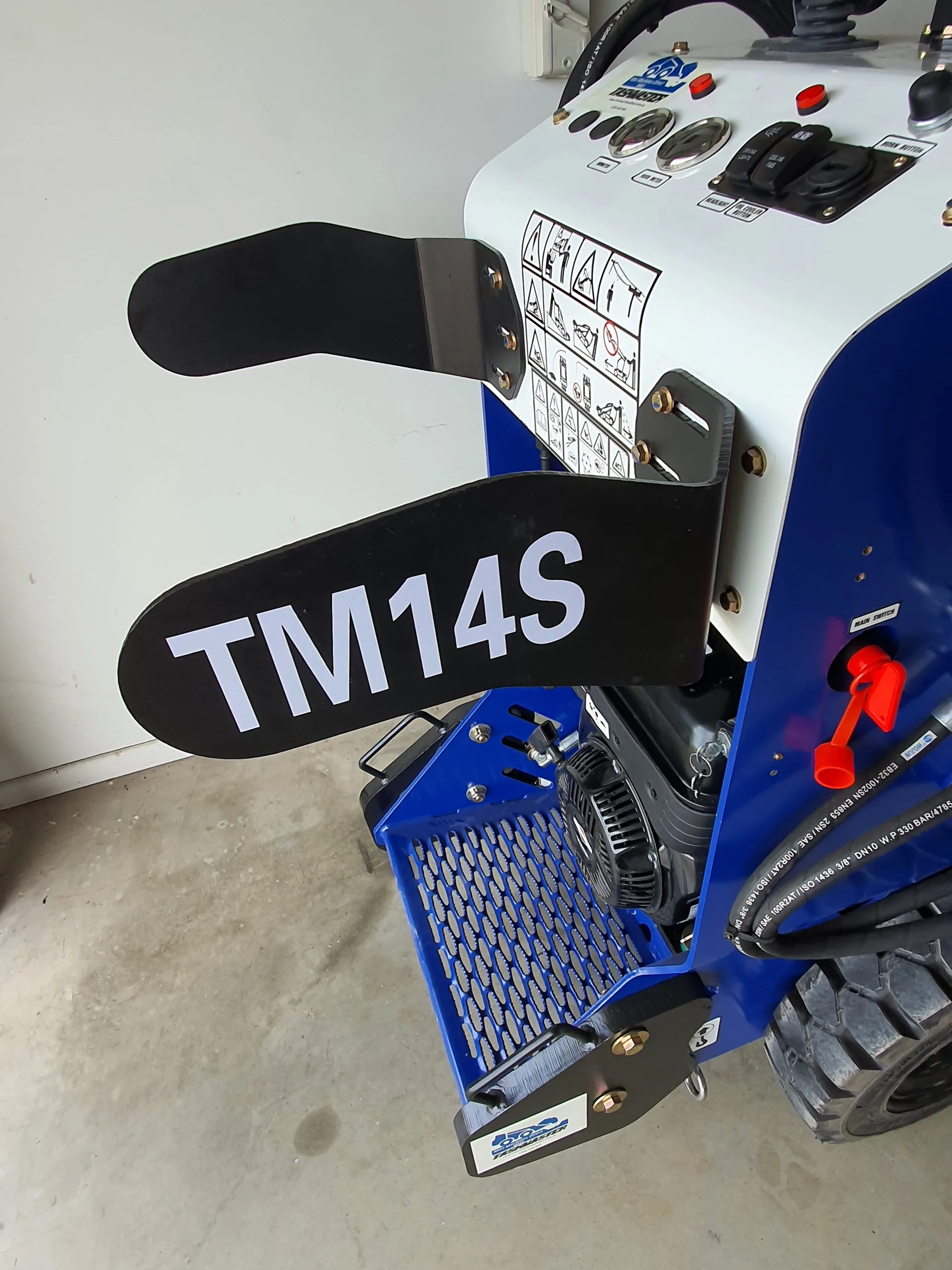

  • Hip Protectors With Padding
  • Reliable Proven B&S USA Engine
  • 4 x 4 Hydraulic Drive
  • Puncher Proof Tyres

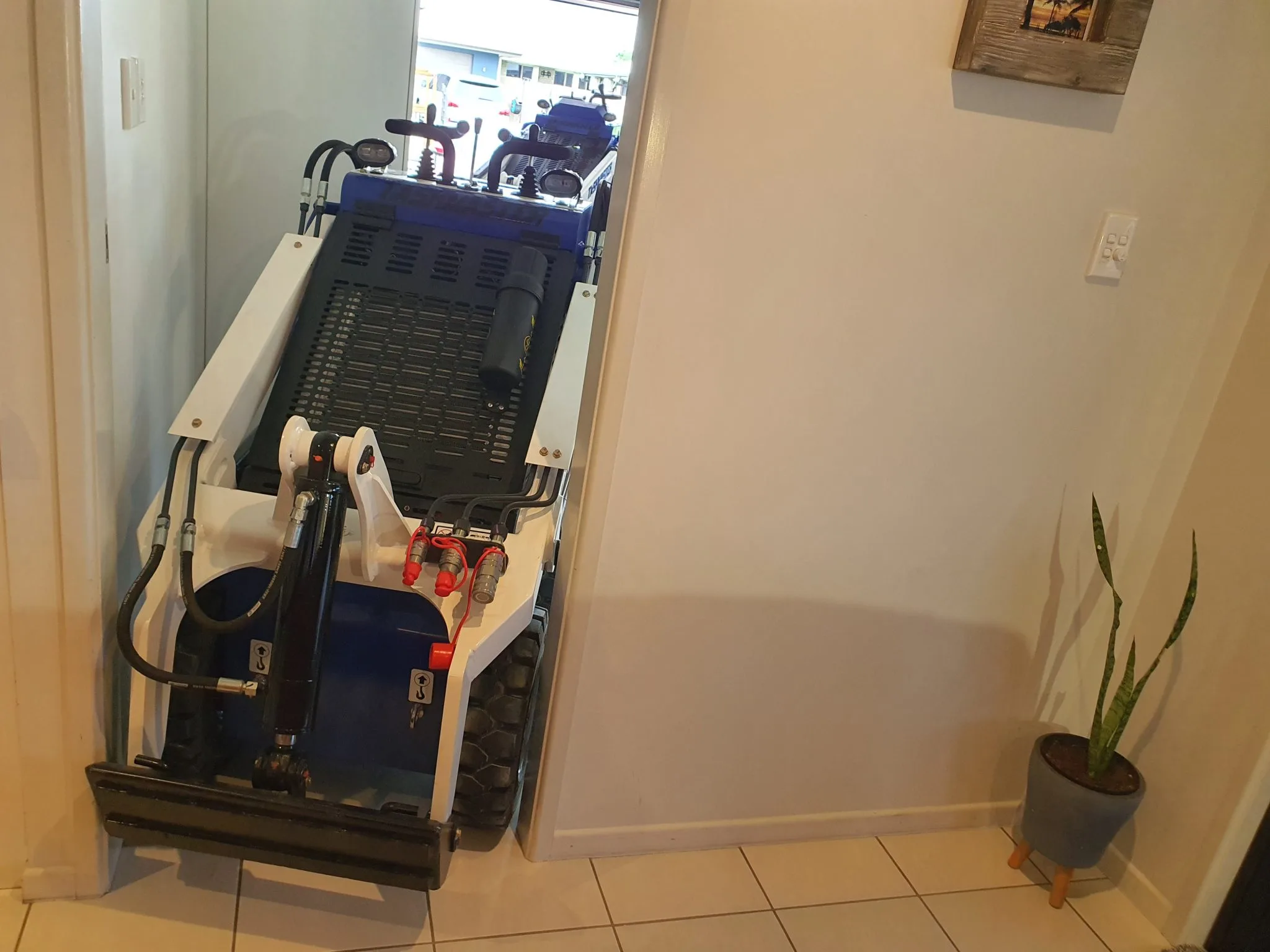

  • 740mm Wide – with fit though Internal Door

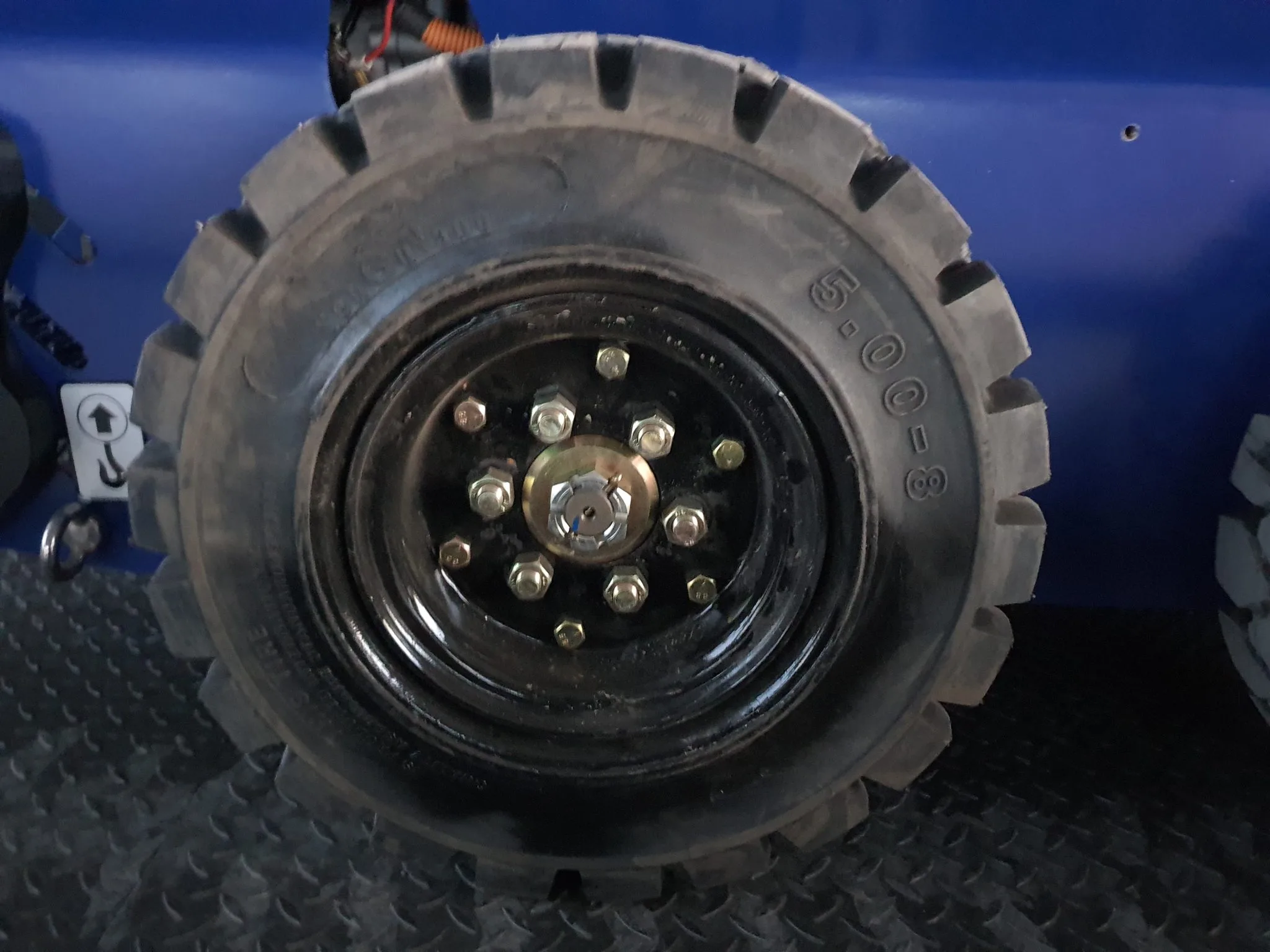

  • Solid Tyres – Puncher Proof and Stable

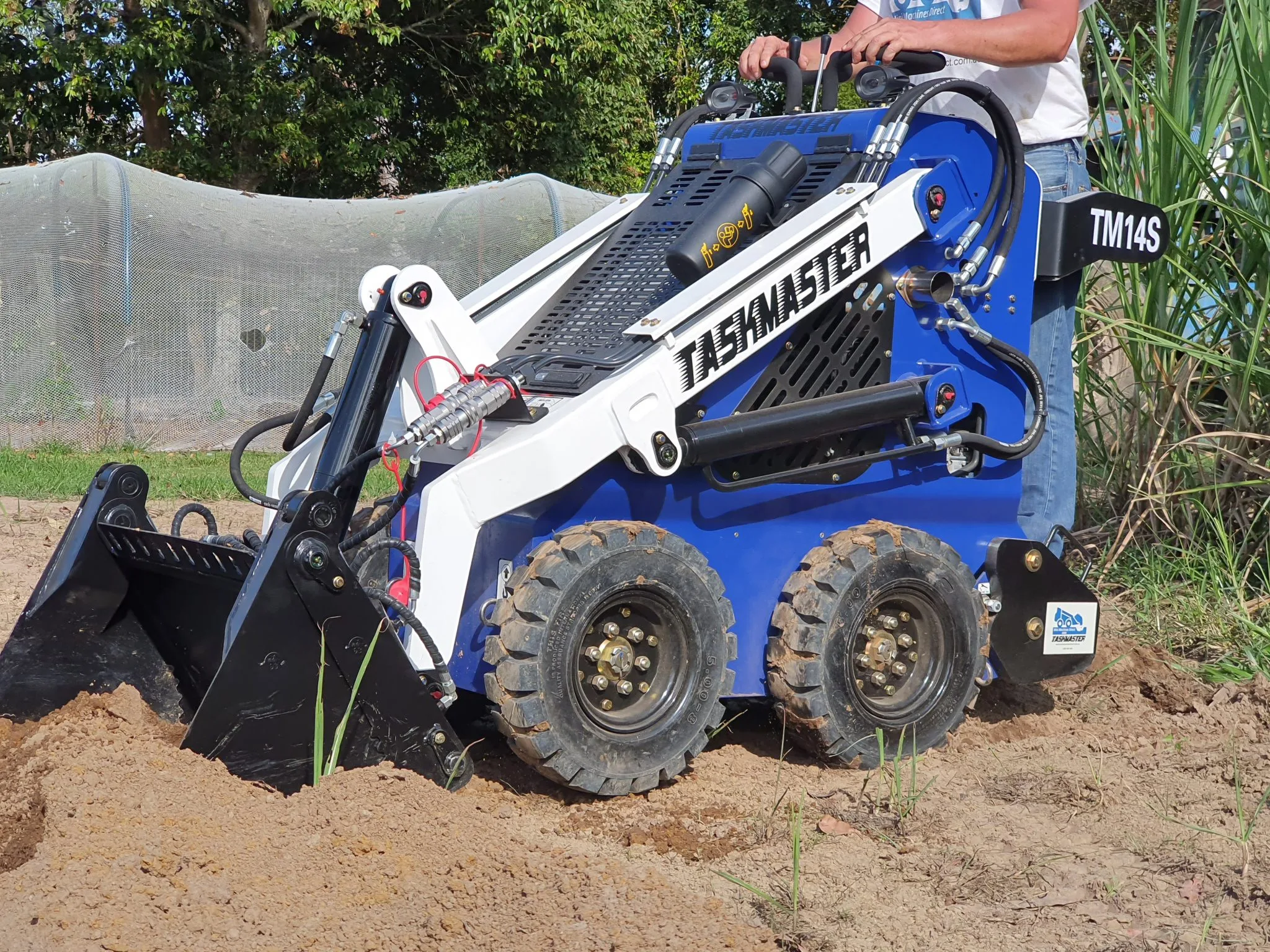

  • 4 in 1 Bucket – Doze, Dig, Dump, Carry, Clamp, Grab, Optional Teeth

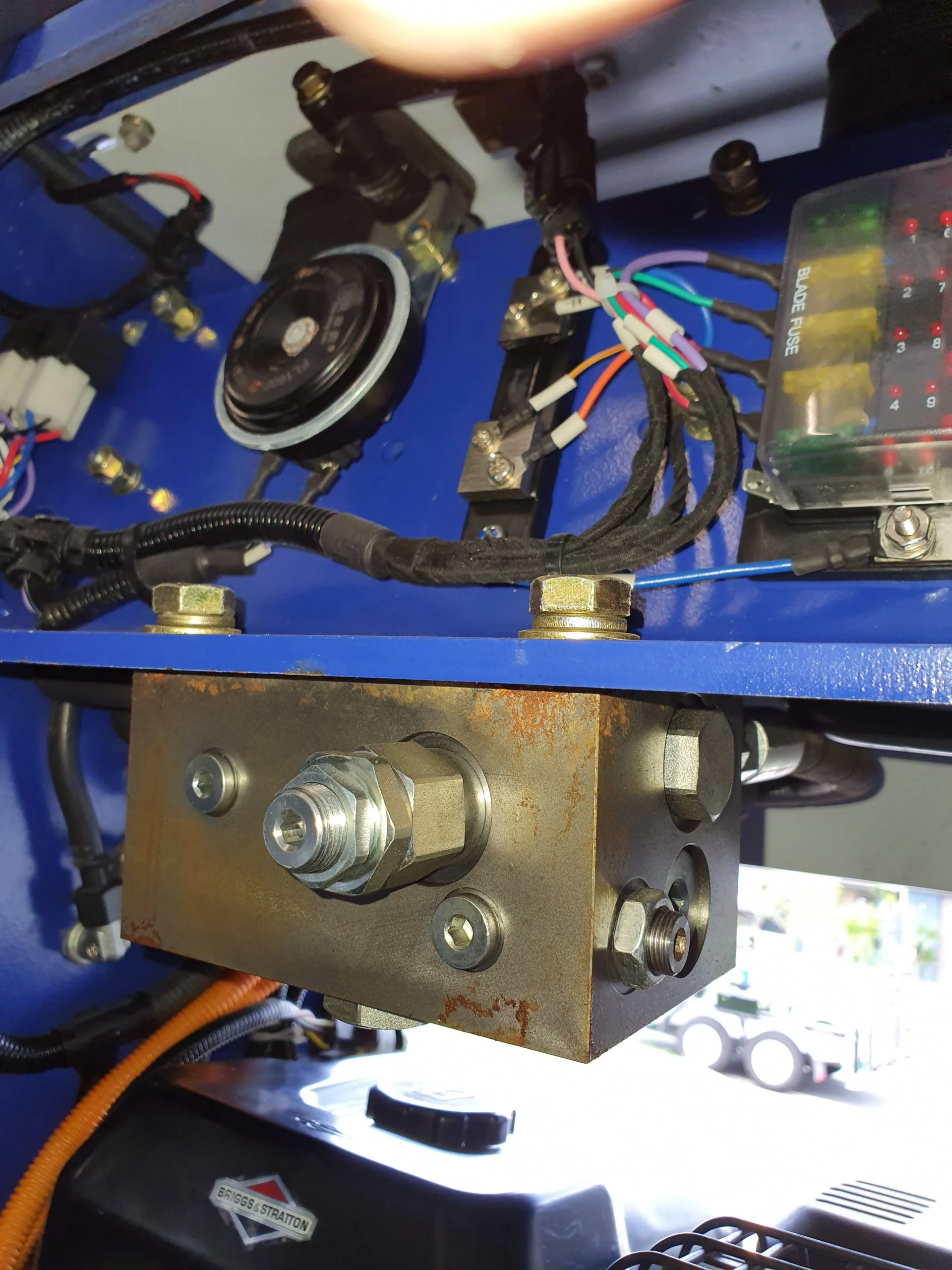

  • Leveling Valve – Keeps the Bucket Level when Lifting the Arm
  • Joystick Steering Control – Manual
  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Engine and Hydraulic Oil

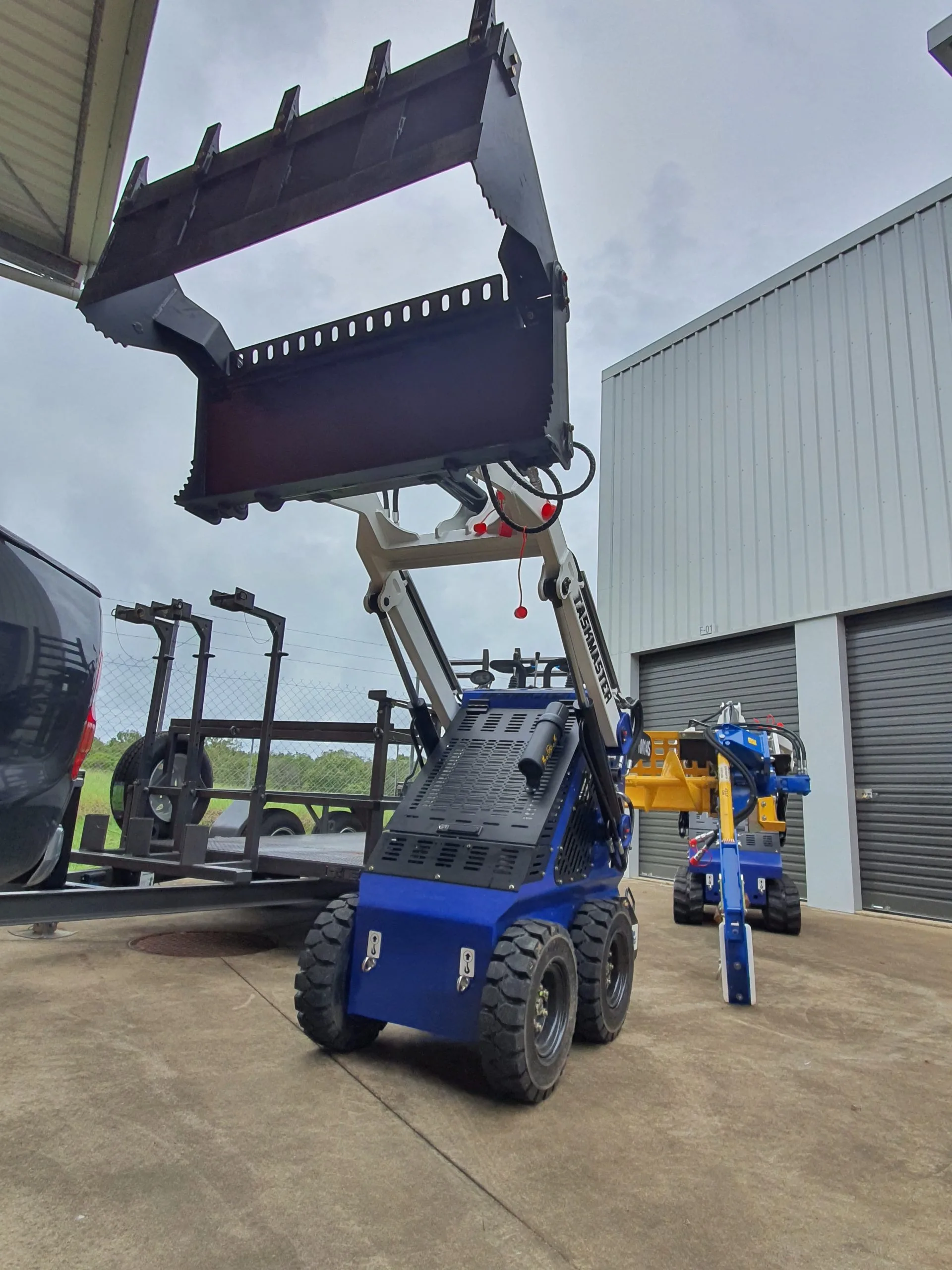

  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check
  • Auxiliary Hydraulic Outputs – Operate Many Work Tools
  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish
  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power
  • Muffler Insulation – Reduces Under Bonnet Temperature

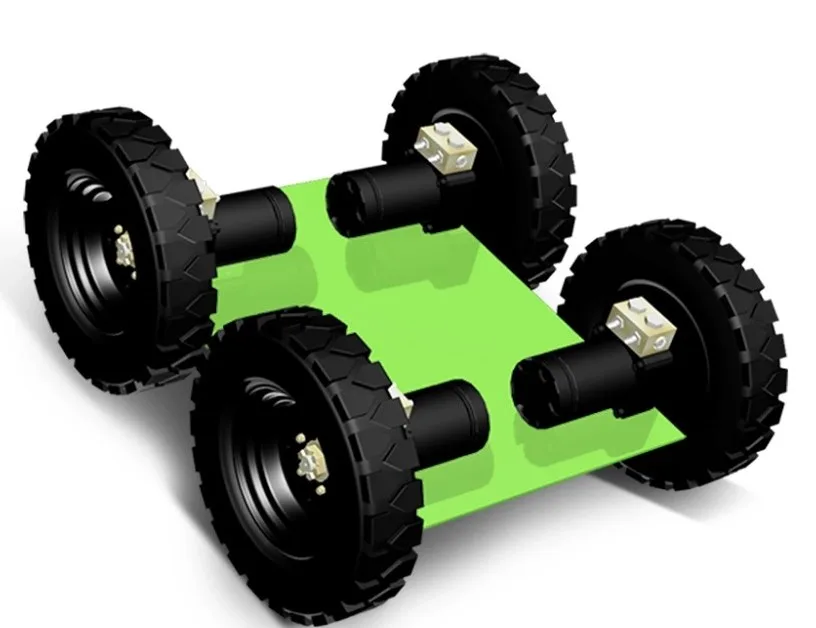

  • 4 Drive Motors – No Chains to Adjust, Faster Travel, and Tighter Turning Due to Shorter Wheelbase
  • Standard Attachment Mounting Plate – Fits Most Common Attachments
  • Operator Platform – Provides Great Visibility

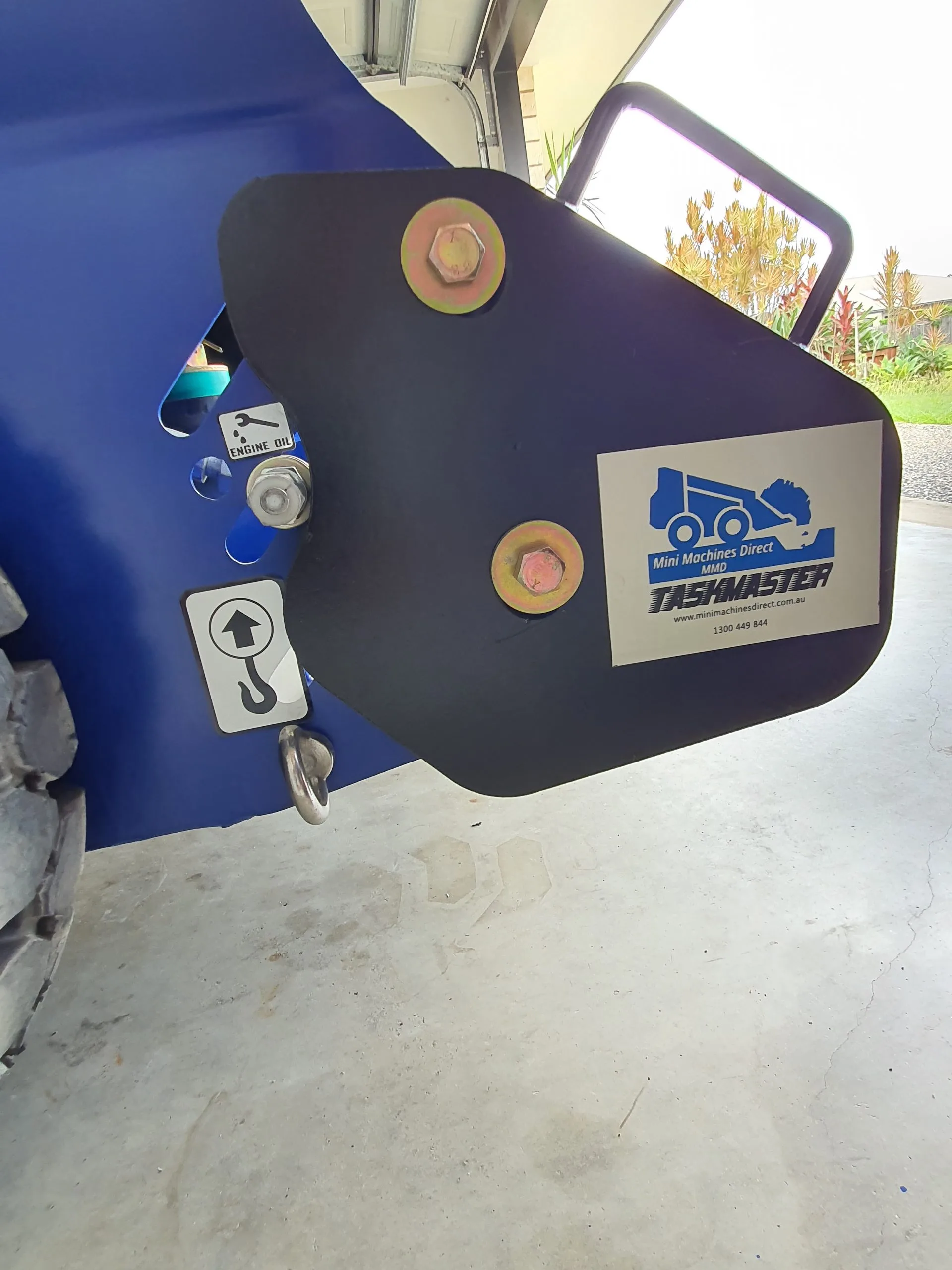

  • Counterweights – Added Lift Capacity

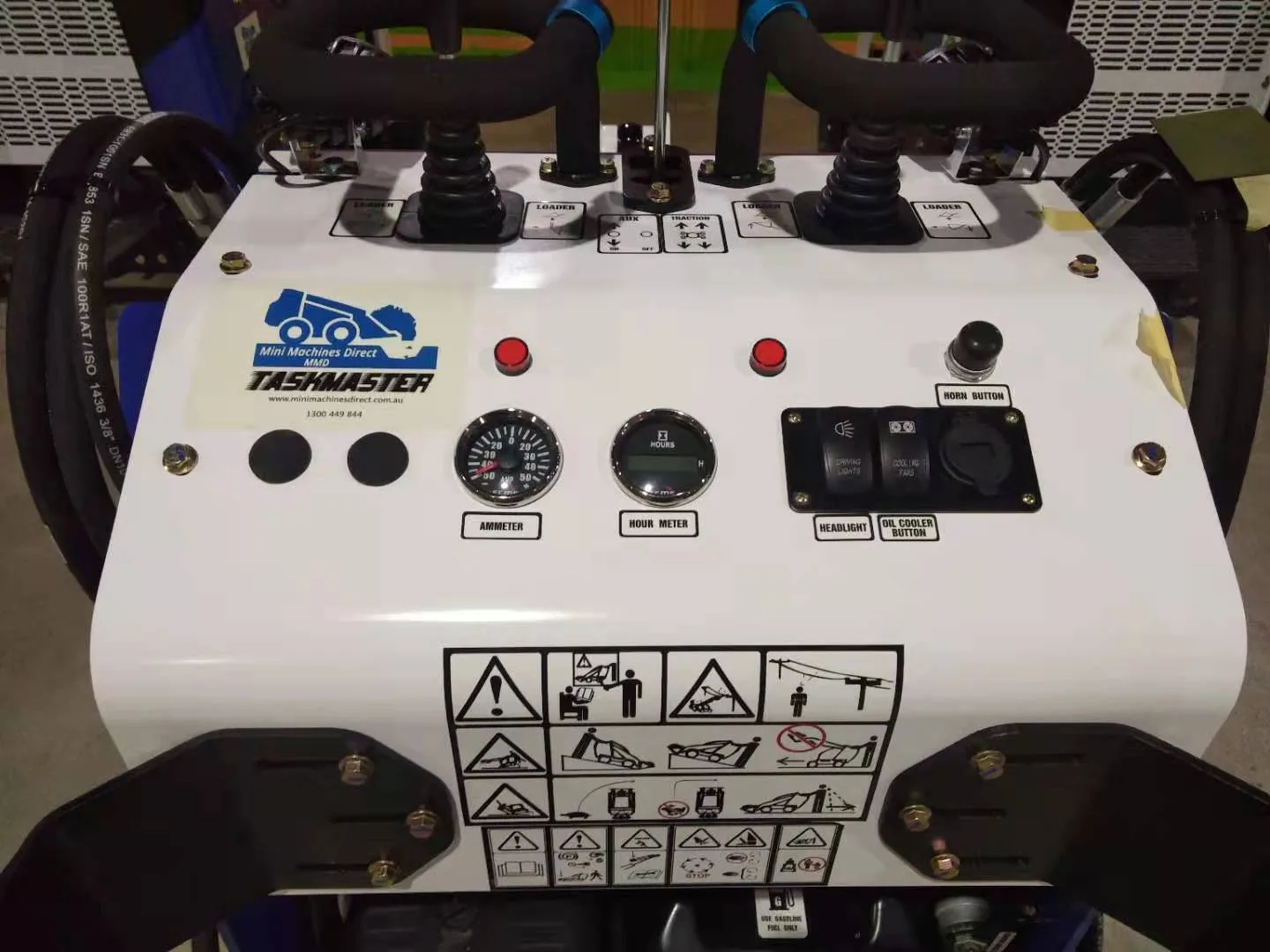

  • Gauges and Warning Lights – Machine Protection
  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life
  • Tie Down Locations – Safe Security for Transporting
  • Lift Hook Locations – Safe Lifting of Machine
  • Key Locks on Access Panels and Fuel Caps – For Security
  • Service Kit and Tools – Maintenance items
  • Emergency Stop Switch – Operator safety
  • Operators Manual – Water Proof Holder for Safety and Protection
  • Reverse Stop Panel – Operator Safety
  • LED Lights – Day and Night Vision

SPECIFICATIONS:

DIMENSIONS:

ENGINE

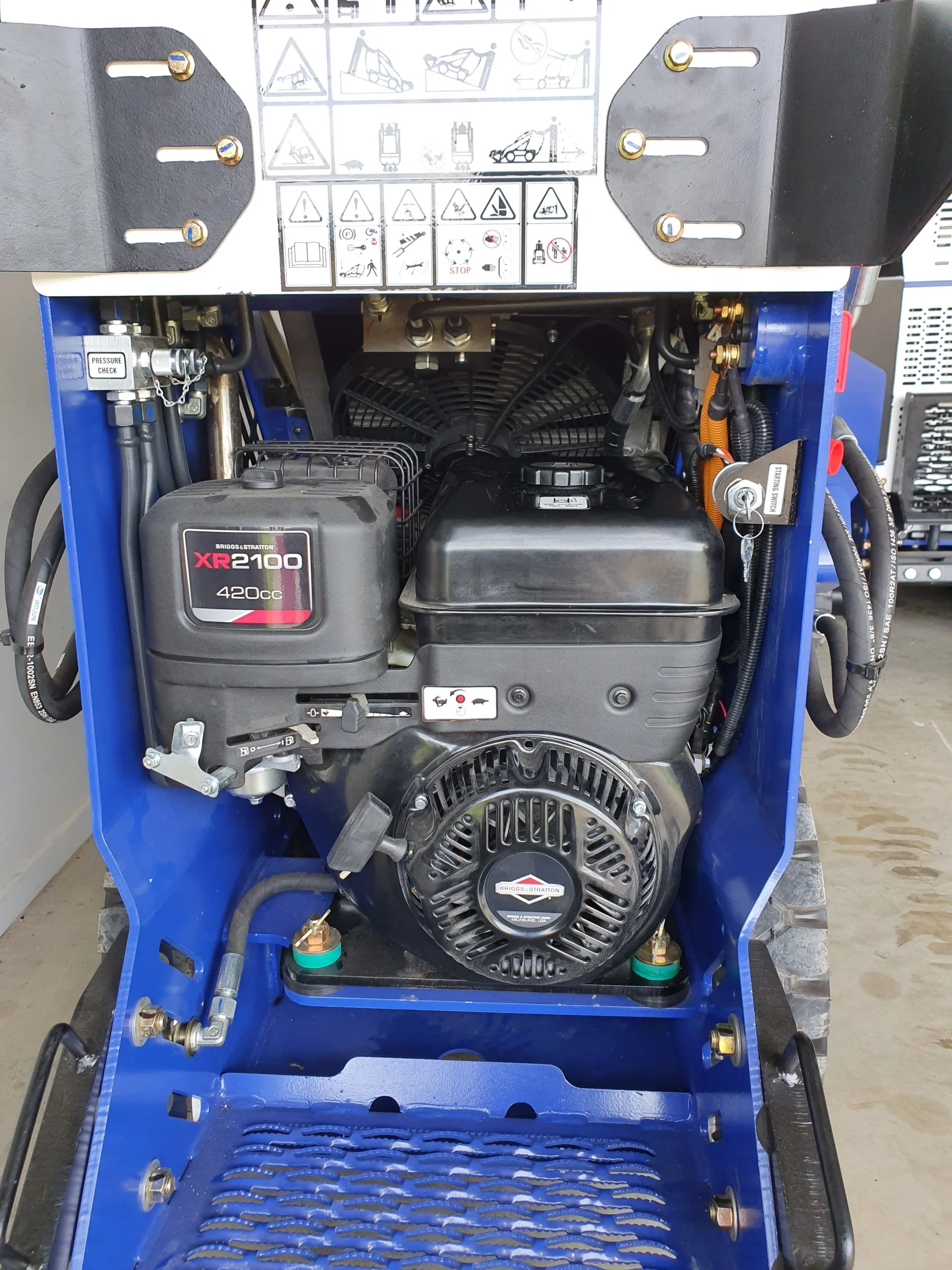

Engine MakeBriggs and Stratton XR2100 (USA)
Fuel TypePetrol
Rated Power14 hp (10.4 kw)
Electrical12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump BrandPermco (USA)
Valve BrandHydro Control Joystick (Italian)
Pressure 2610 PSI (180 Bar)
Flow 21 L/Min
CoolerAlloy Cooling Radiator
DRIVING SYSTEM
Pressure2610 PSI (180 Bar)
Flow 21 L/Min
Speed 6.8 Km/h
AUX CIRCUIT
Valve BrandTrinity Flat Faced Couplers (Italian)
Pressure 2610 PSI (180 Bar)
Flow 21 L/Min
FLUID CAPACITIES
Fuel 6.6 L Petrol
Hydraulic Oil L
Engine Oil L
Coolant
RATED LOAD
50% of Tip Capacity 150 kg (Optional Counterweights)
35% of Tip Capacity100 kg (Optional Counterweights)
*see our Lift Demo Video! – Will Lift 300kg @ 600mm 😎

DIMENTIONS
Height to Bucket Hinge Pin 1850 mm
Width740 mm
Weight650 kg
Height Max 2450 mm
Height Min 1390 mm
Length with Bucket 2150 mm
Length without Bucket1650 mm
Wheelbase 600 mm
Ground Clearance 135 mm
Angle of Departure18 deg

Custom Options

  • Different Tire options available depending on the work site. General Purpose, Mud, Narrow, Turf, Solid.
  • Attachments – Massive Range Ask Us !!
  • Custom Colour.
  • Ready to go Machine / Trailer / Work Tool Packages
  • Counter Weights – For Extra Capacity
