Joystick Steering Control – Soft Touch for Less Operator Fatigue

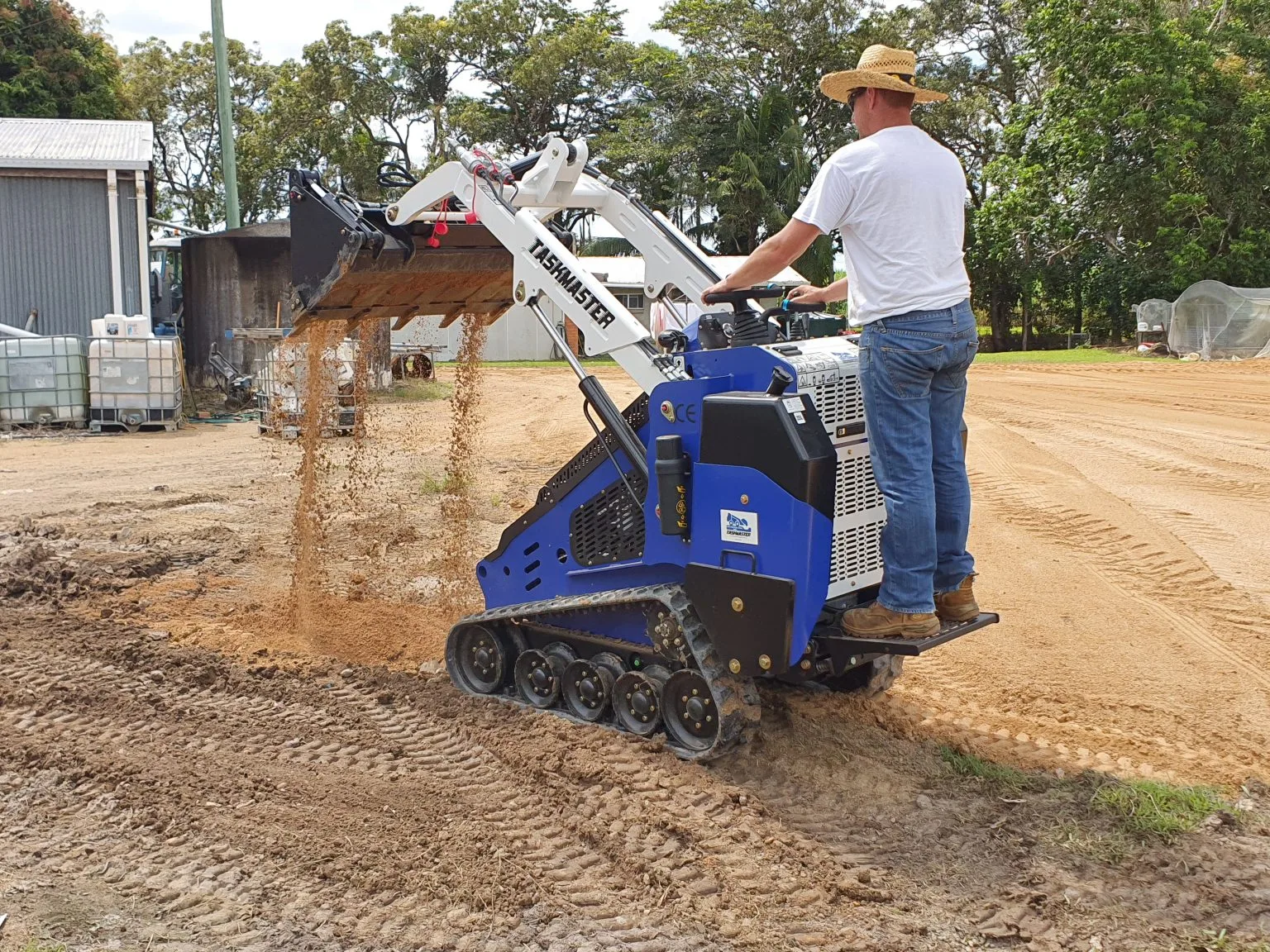

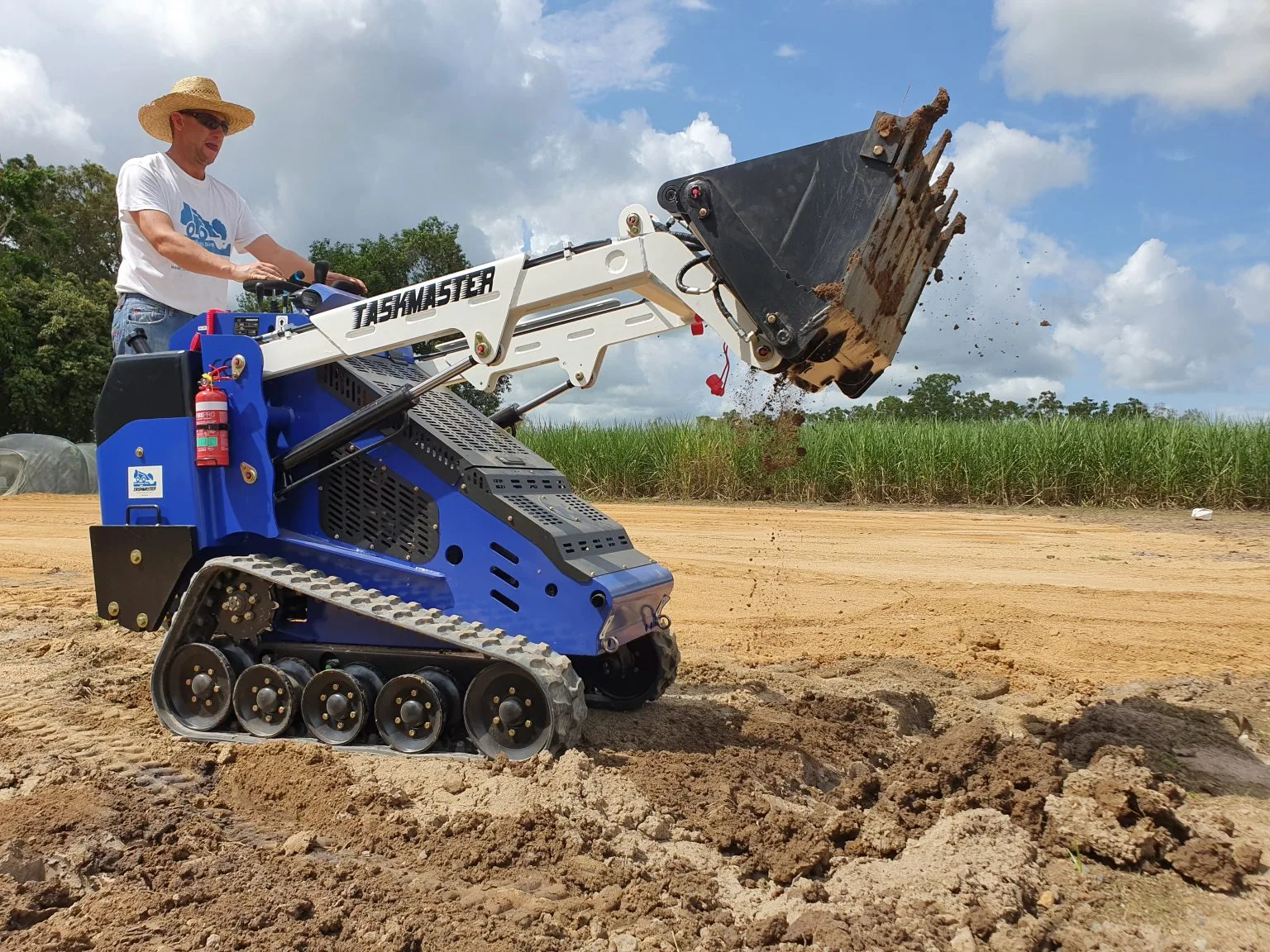

Lift Arm Float Control – Spread Soil Easily by Back Blading
Large Alloy Radiator with Cooling Fan – Efficient Cooling of Diesel Engine and Hydraulic Oil
The ‘Elevated Drive Sprocket’ (as seen on most caterpillar dozers) – Keeps the Drive Mechanism Further Out of the Dirt Reducing Wear – Allows the Drive System to Concentrate on Rotational Forces Without Having to Support the Weight of the Machine – Gives Much Smoother Ride for the Operator
3 Hydraulic Pump System – For Efficient Separation of Power to Attachments, Bucket Controls, and Wheels
Hydraulic Oil Cooler – Keeps Oil Temperature In Check
CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish

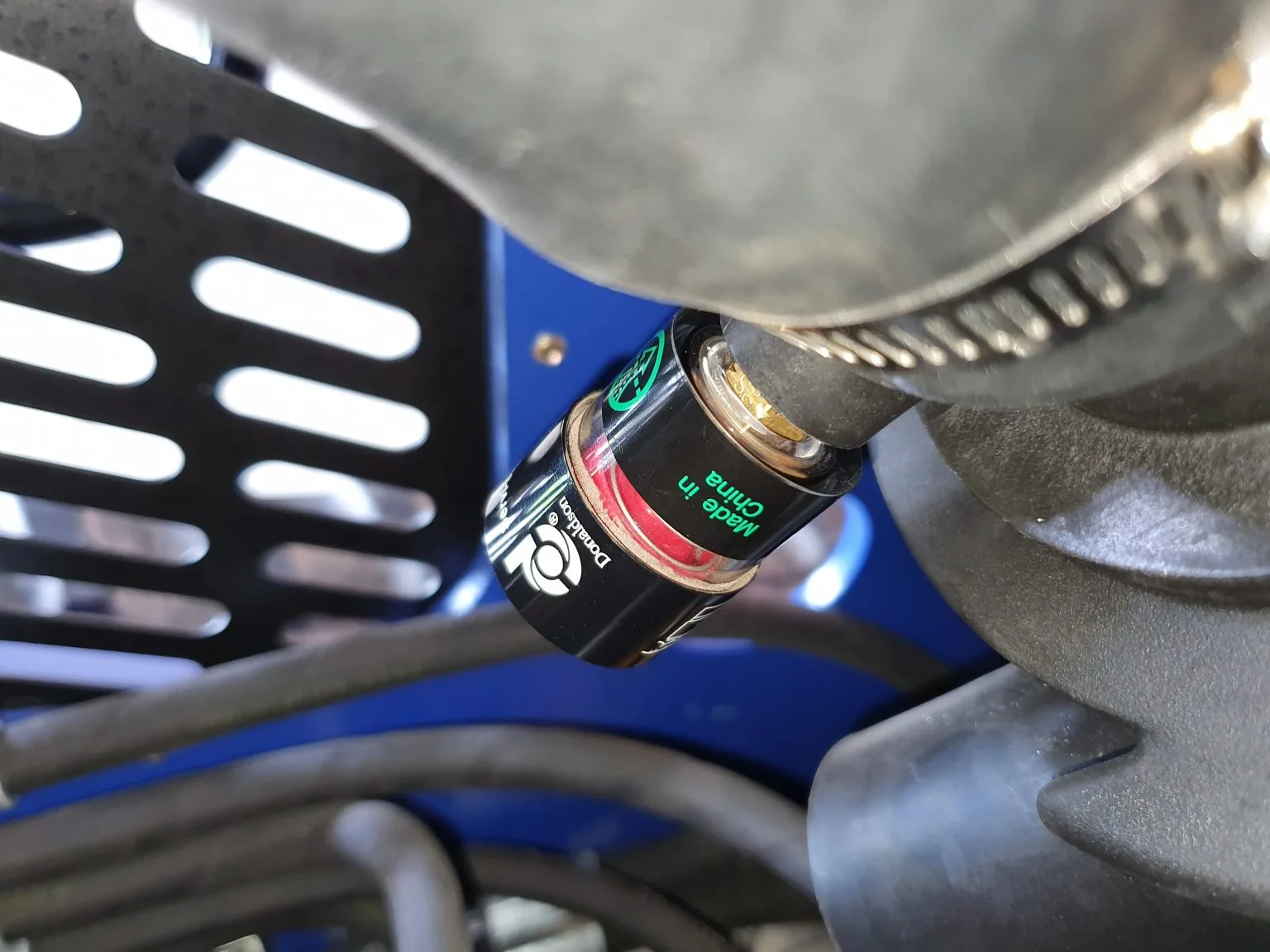

Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
Auxiliary Hydraulic Outputs – Operate Many Work Tools
Hose Quick Coupler Fittings – Italian Made Illuminates Dirt Entry and Leakage

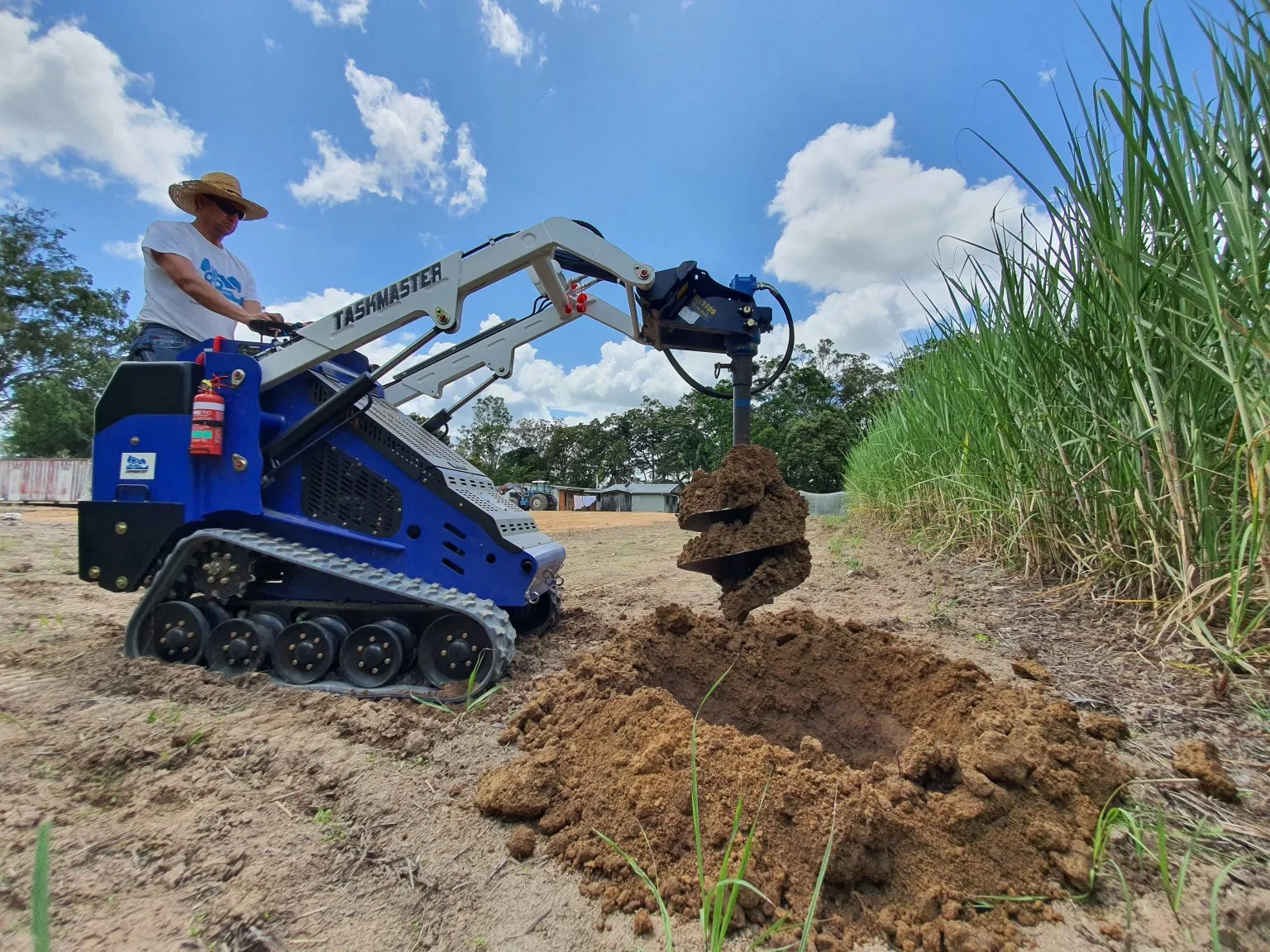

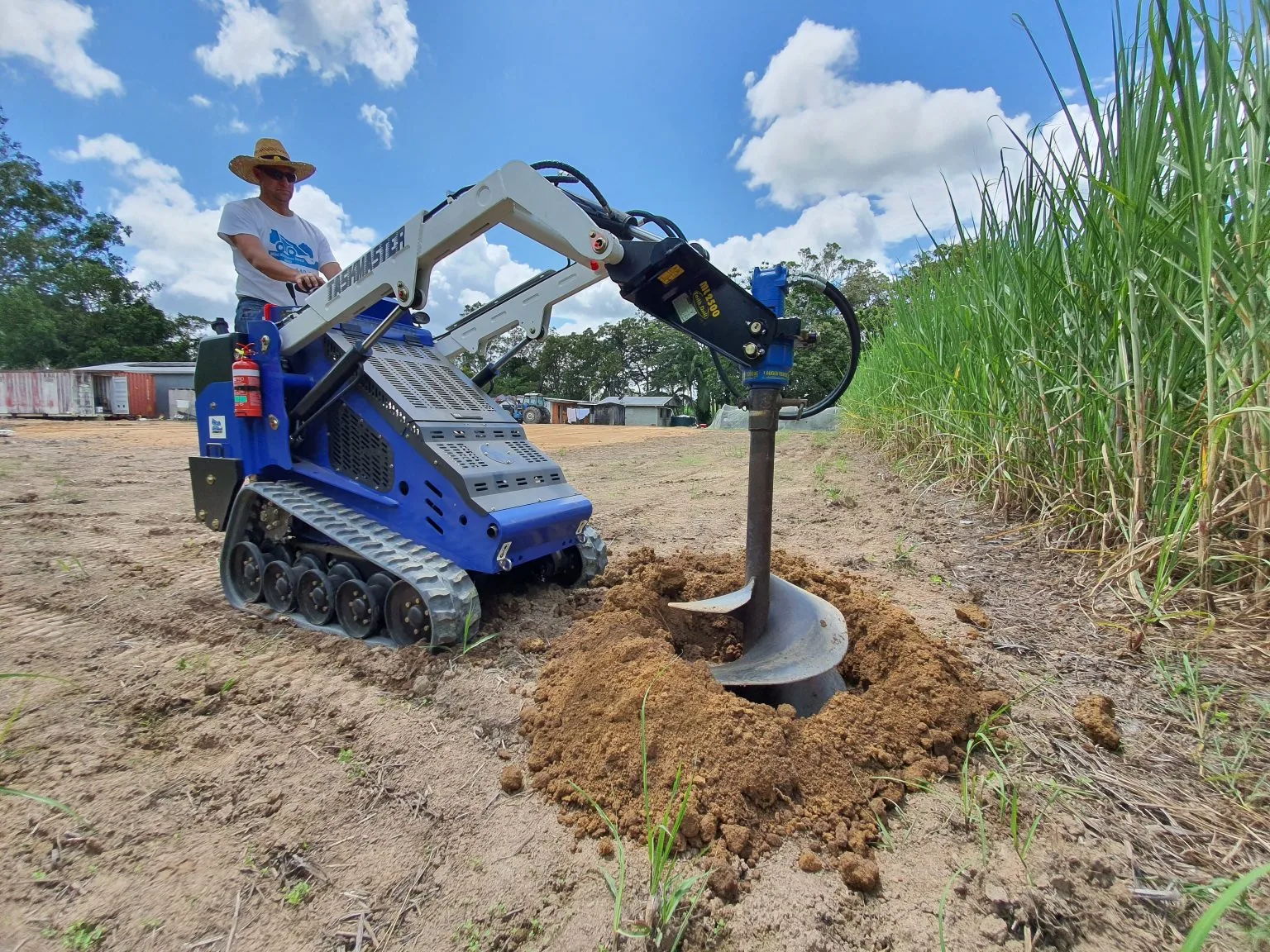

Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
Hydrostatic Drive Train System – Benefits of Hydraulic Power
Japanese NSK Bearings and Grade 60H Chains – For Longer Life
Muffler Insulation – Reduces Under Bonnet Temperature
Standard Attachment Mounting Plate – Fits Most Common Attachments
Operator Platform Suspension – Provides Great Visibility and Operator Comfort

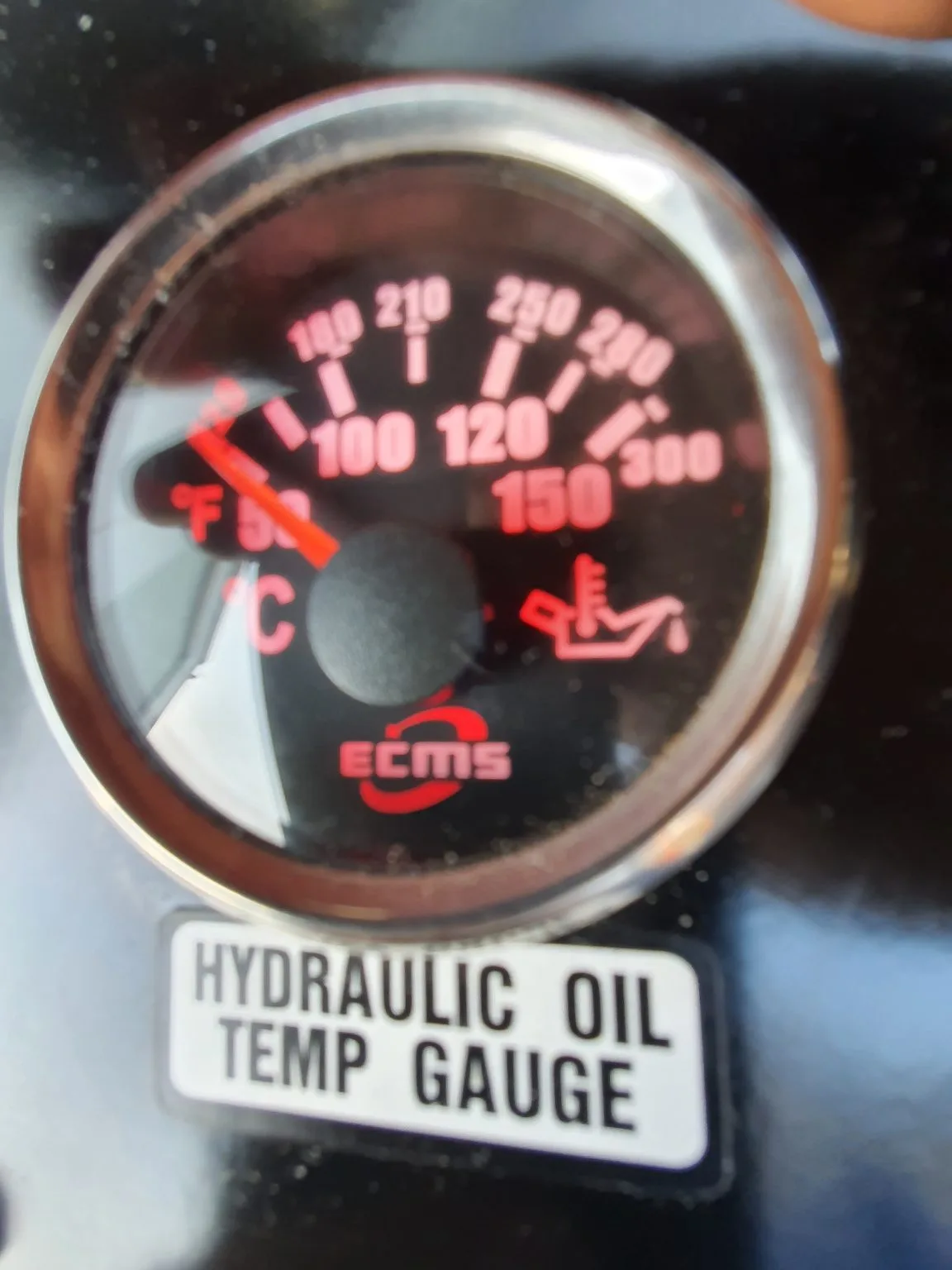

Gauges and Warning Lights – Machine Protection
Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – More Traction and Lighter Foot Print
Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life
Tie Down Locations – Safe Security for Transporting
Key Locks on Access Panels and Fuel Caps – For Security
Lift Hook Locations – Safe Lifting of Machine
Service Kit and Tools – Maintenance items
Lift Arm Safety Support – Operator Safety
Operators Manual – Safety and Protection
Reverse Stop Panel – Operator Safety

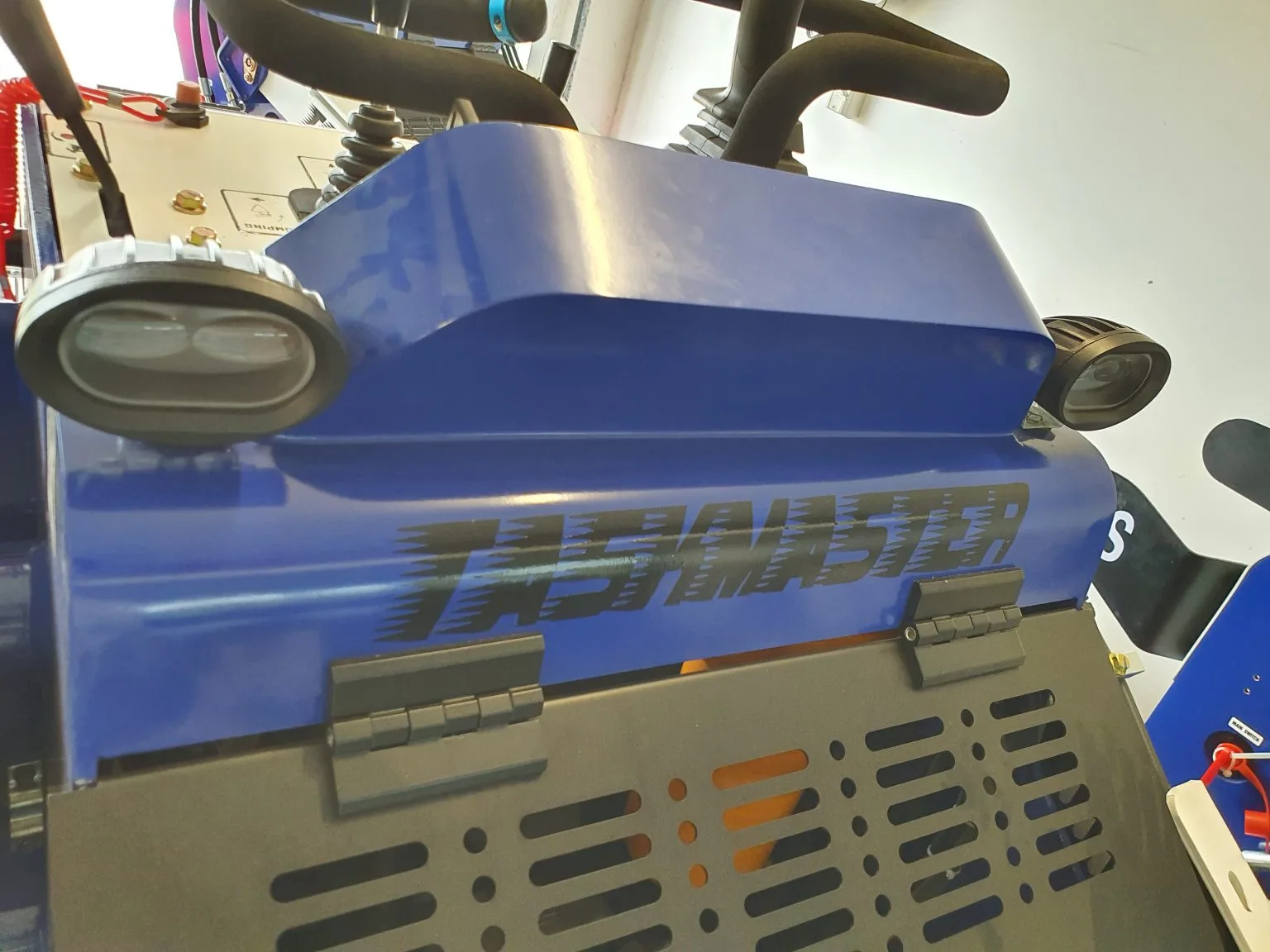

LED Lights – Day and Night Vision
Emergency Stop Switch – Operator safety
Brake System – Operator Safety
Digital Display Machine Monitor

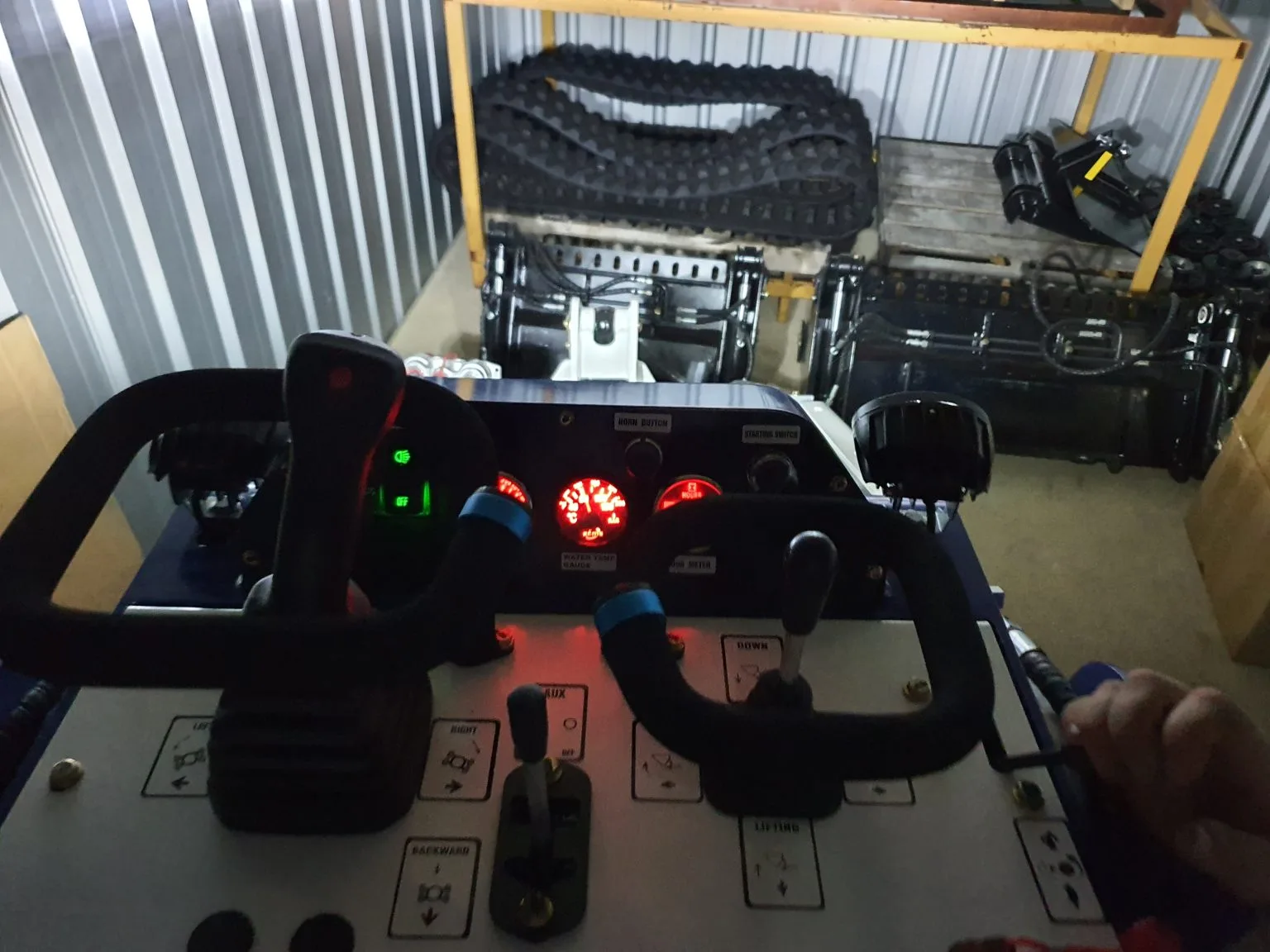

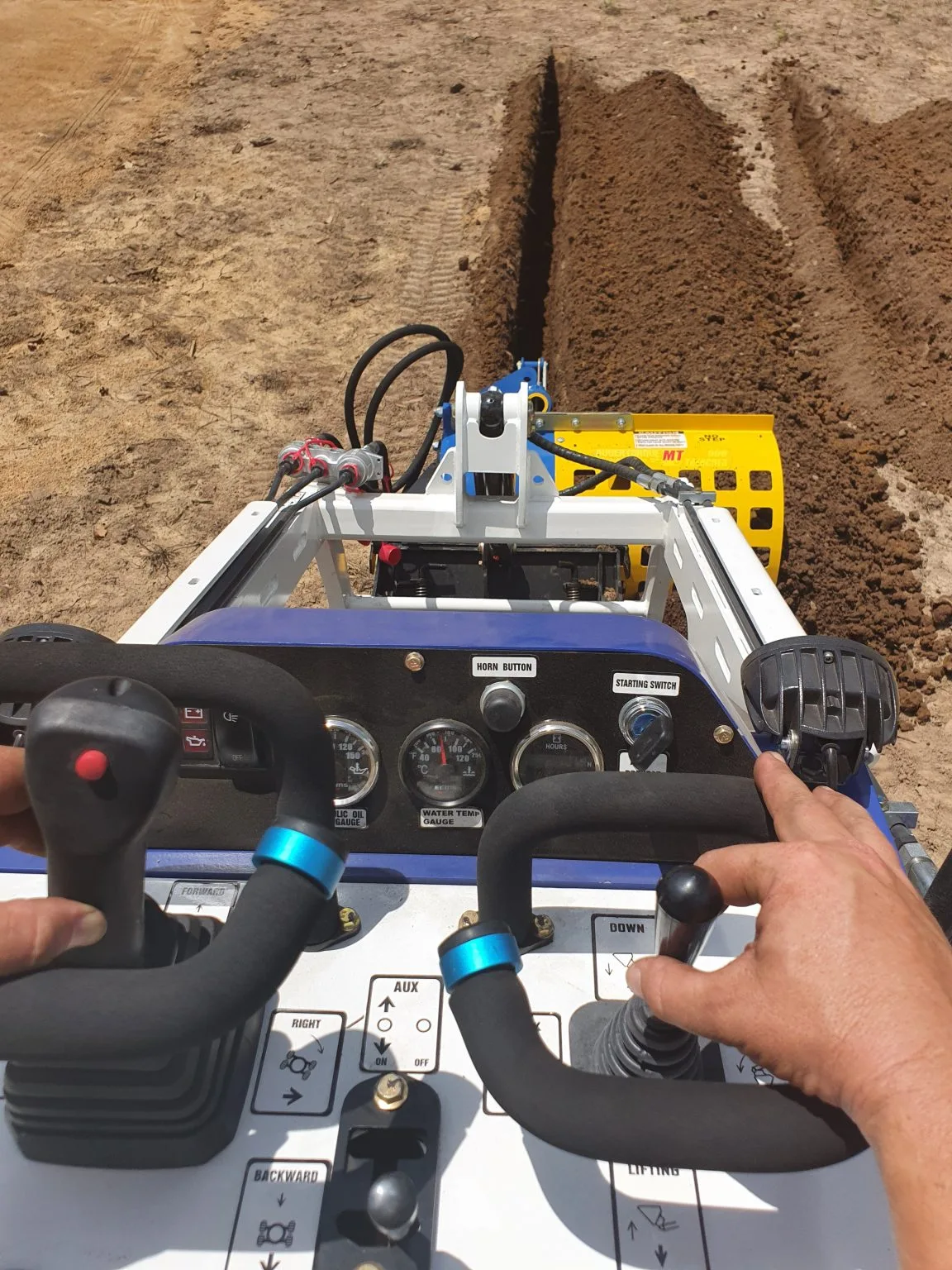

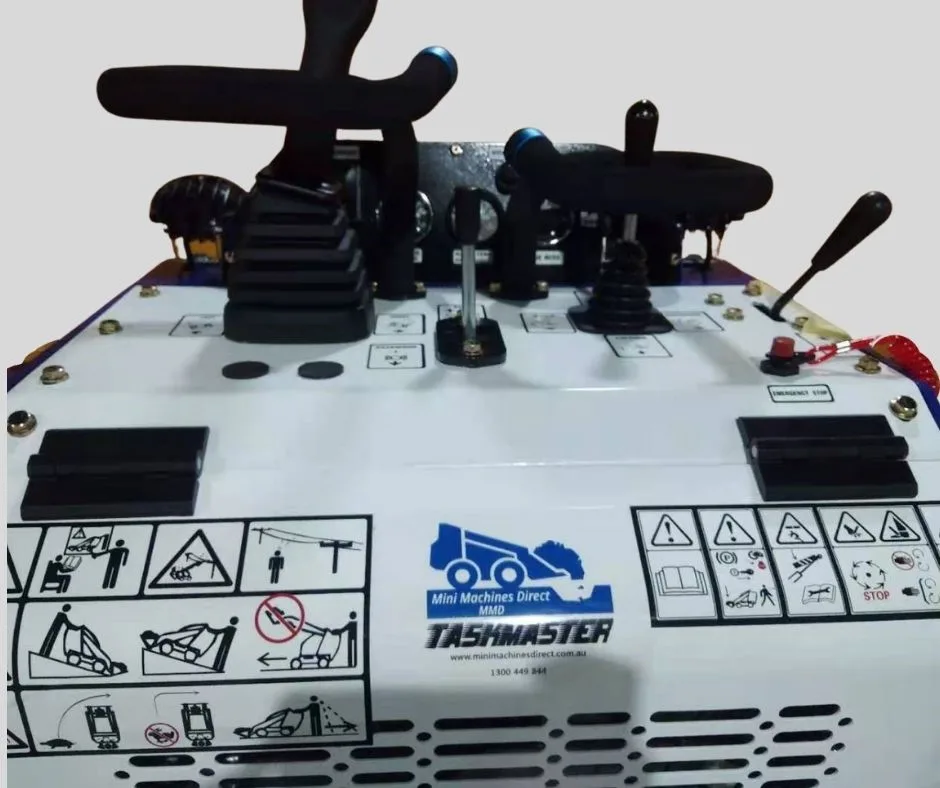

Pilot Operated Joystick Controls

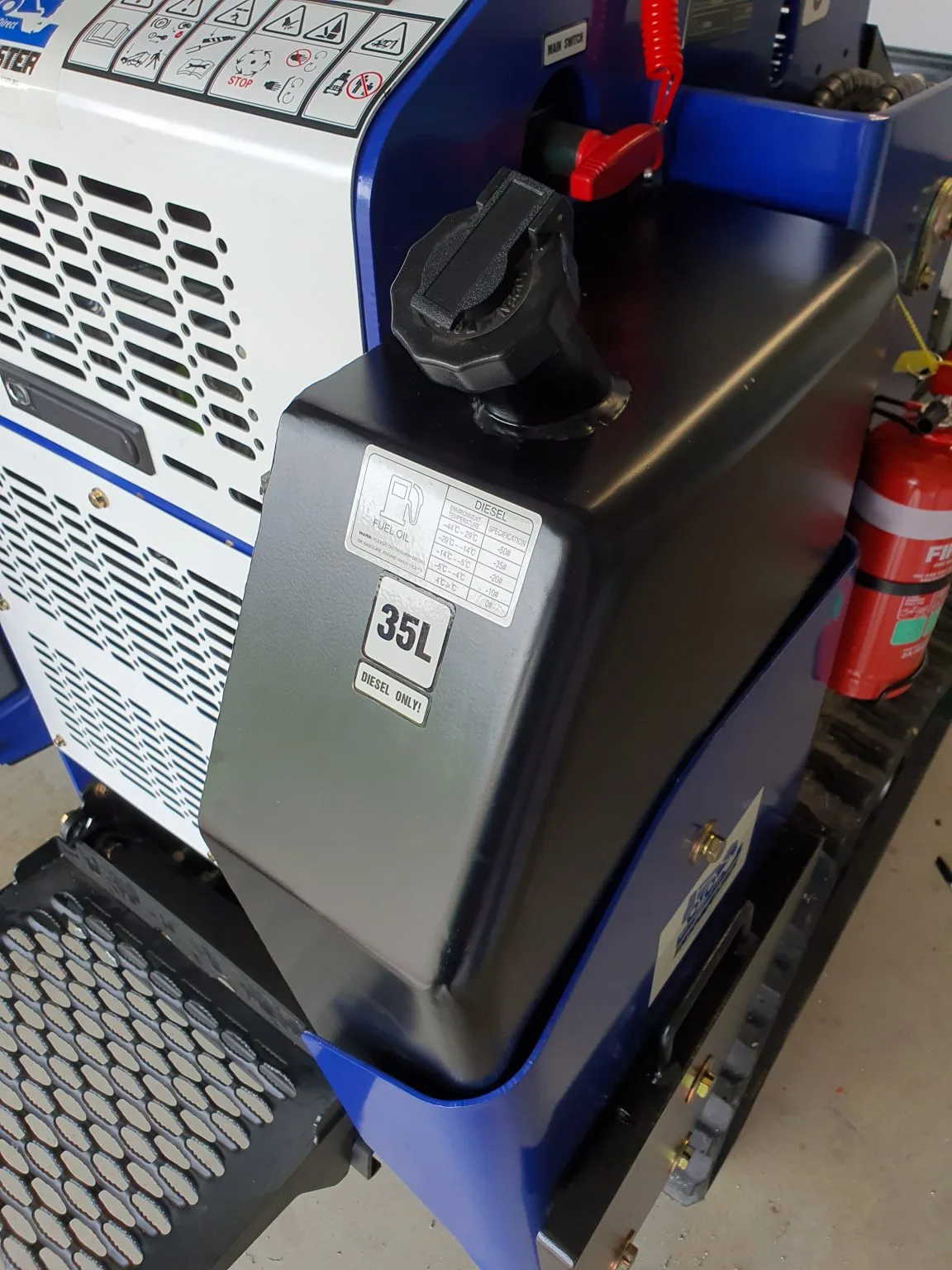

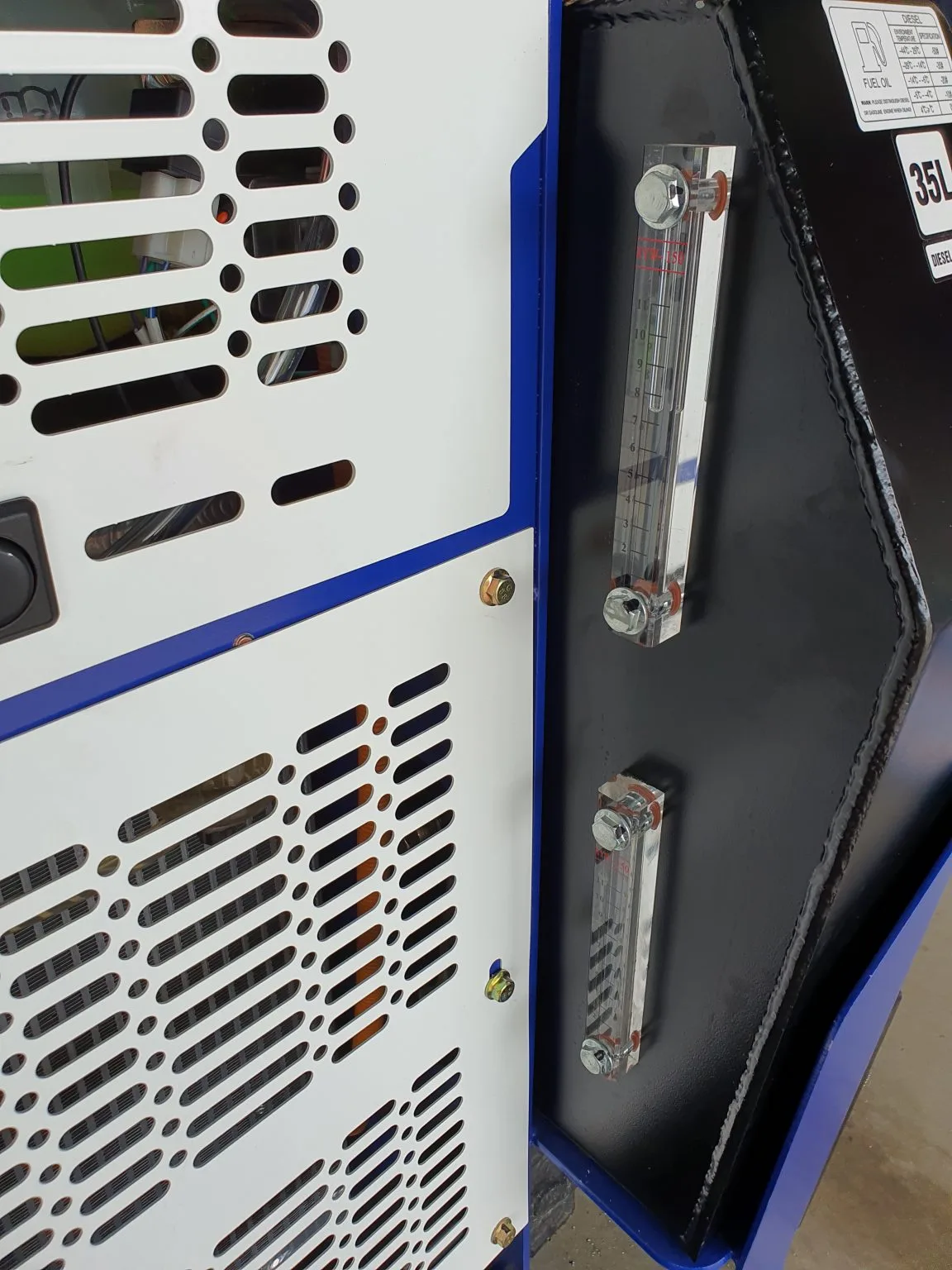

Steel Hydraulic Oil and Fuel Tanks

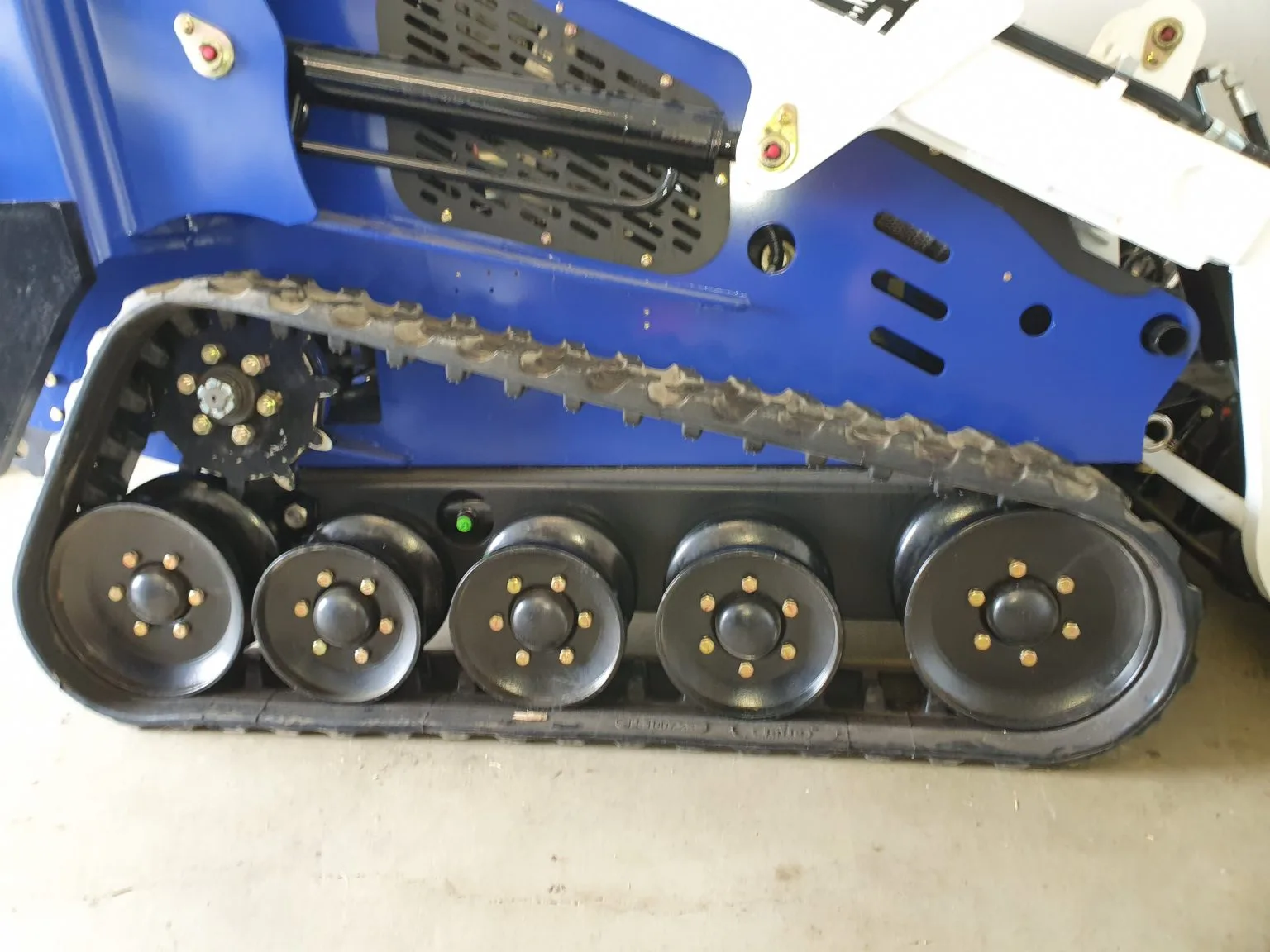

High Drive Sprocket Track System – Ask Us Why?

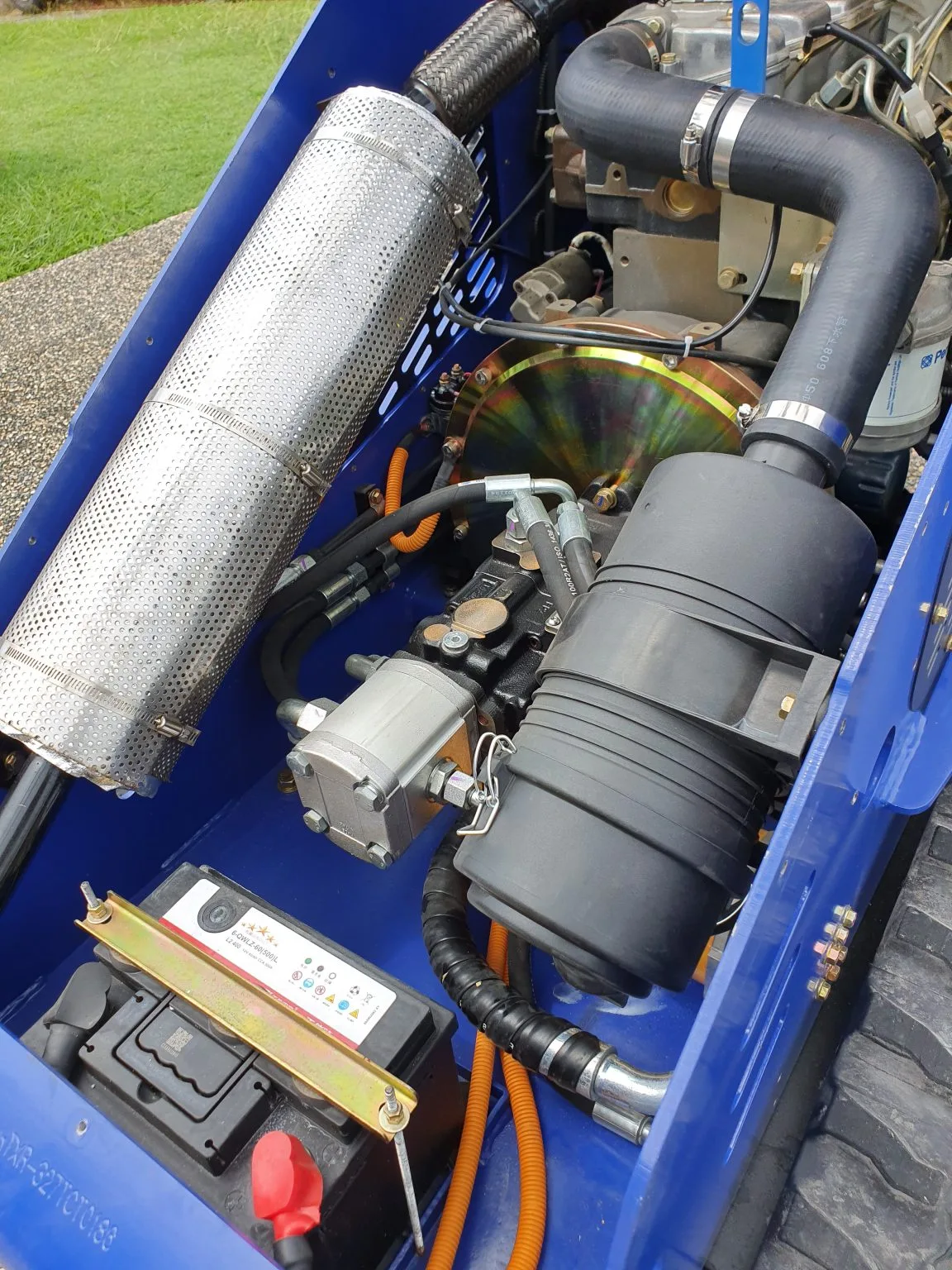

Easy Access for Servicing
Suspension Operators Platform

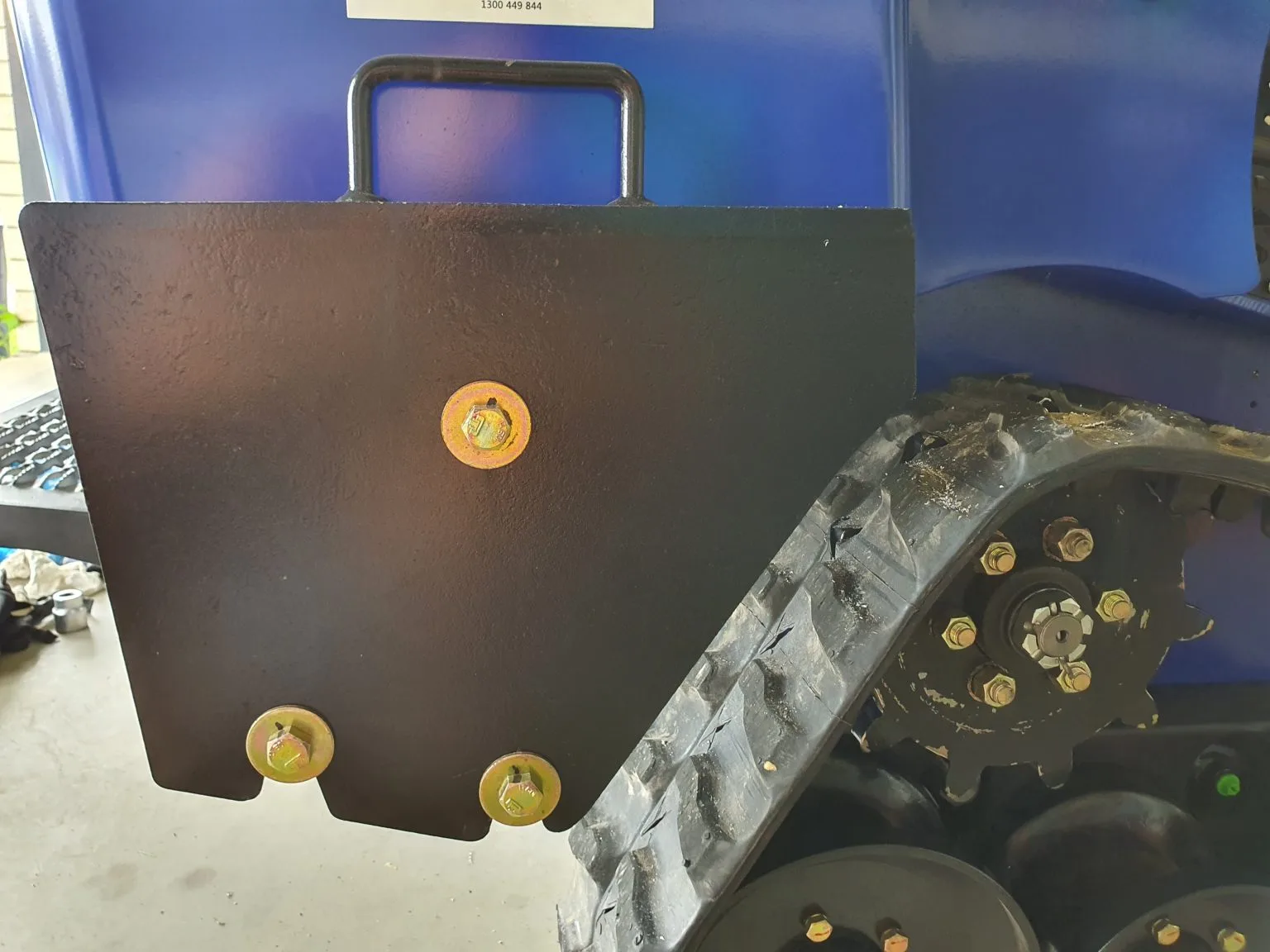

Optional Counterweights for Increasing Lift Capacity

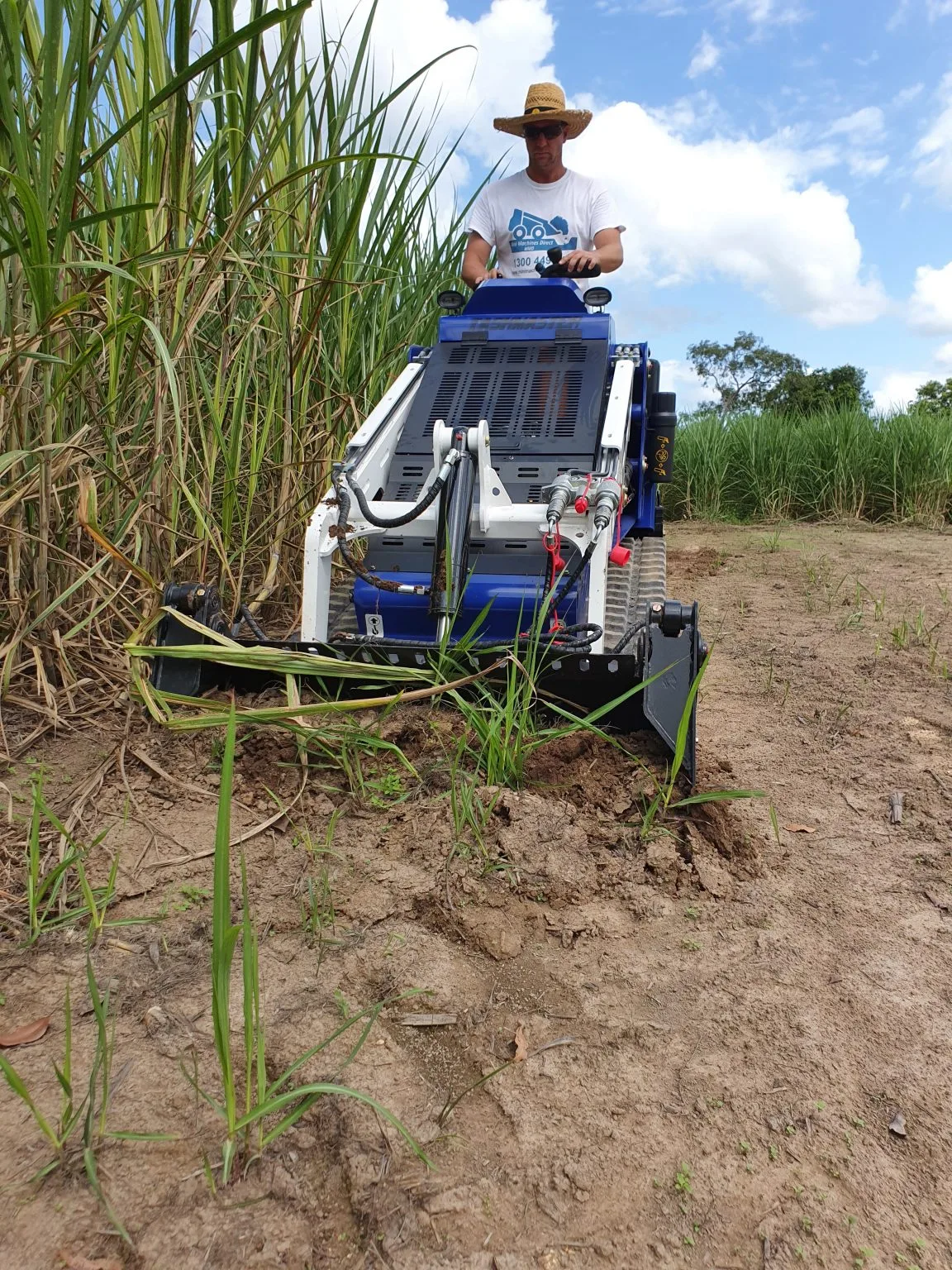

TM30T Saves Manual Labour

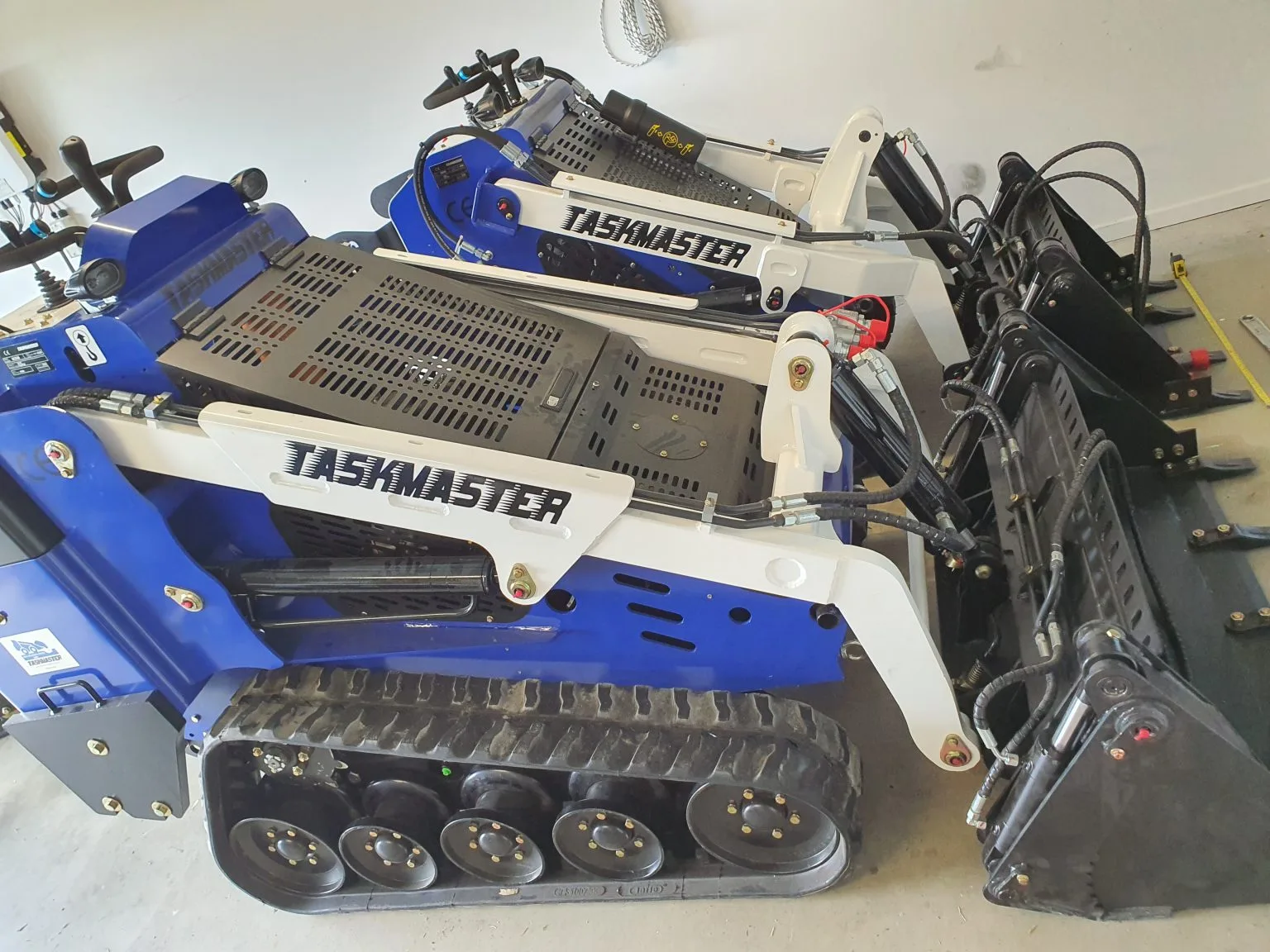

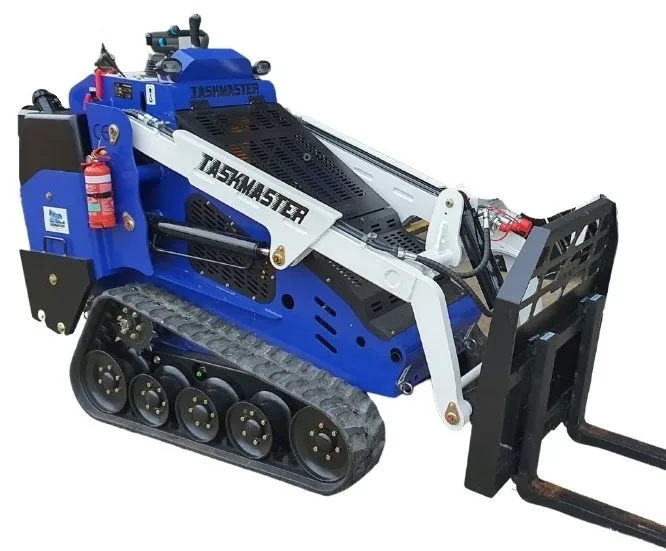

Reliable and Versatile TM30T

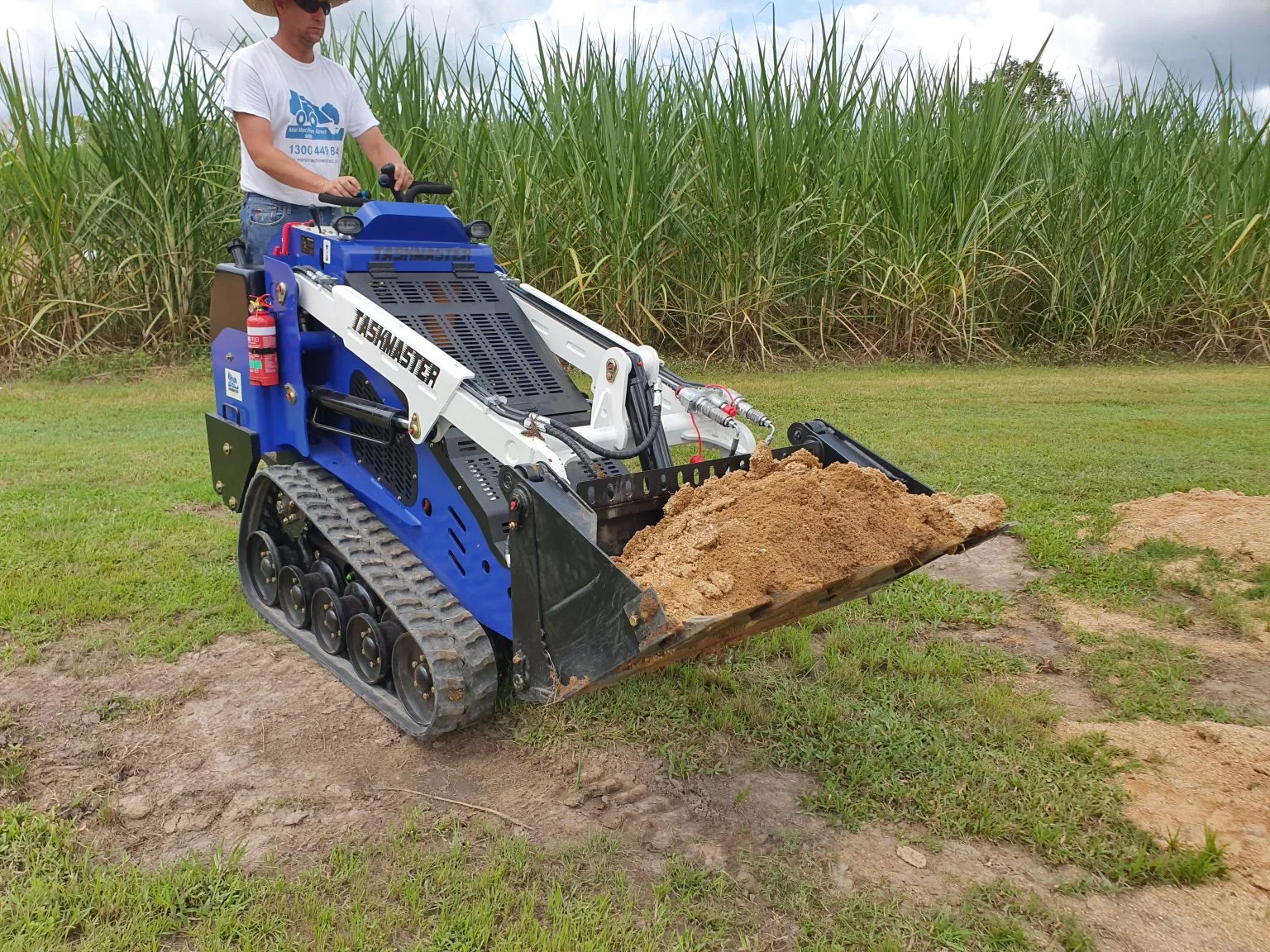

High Lift Bucket

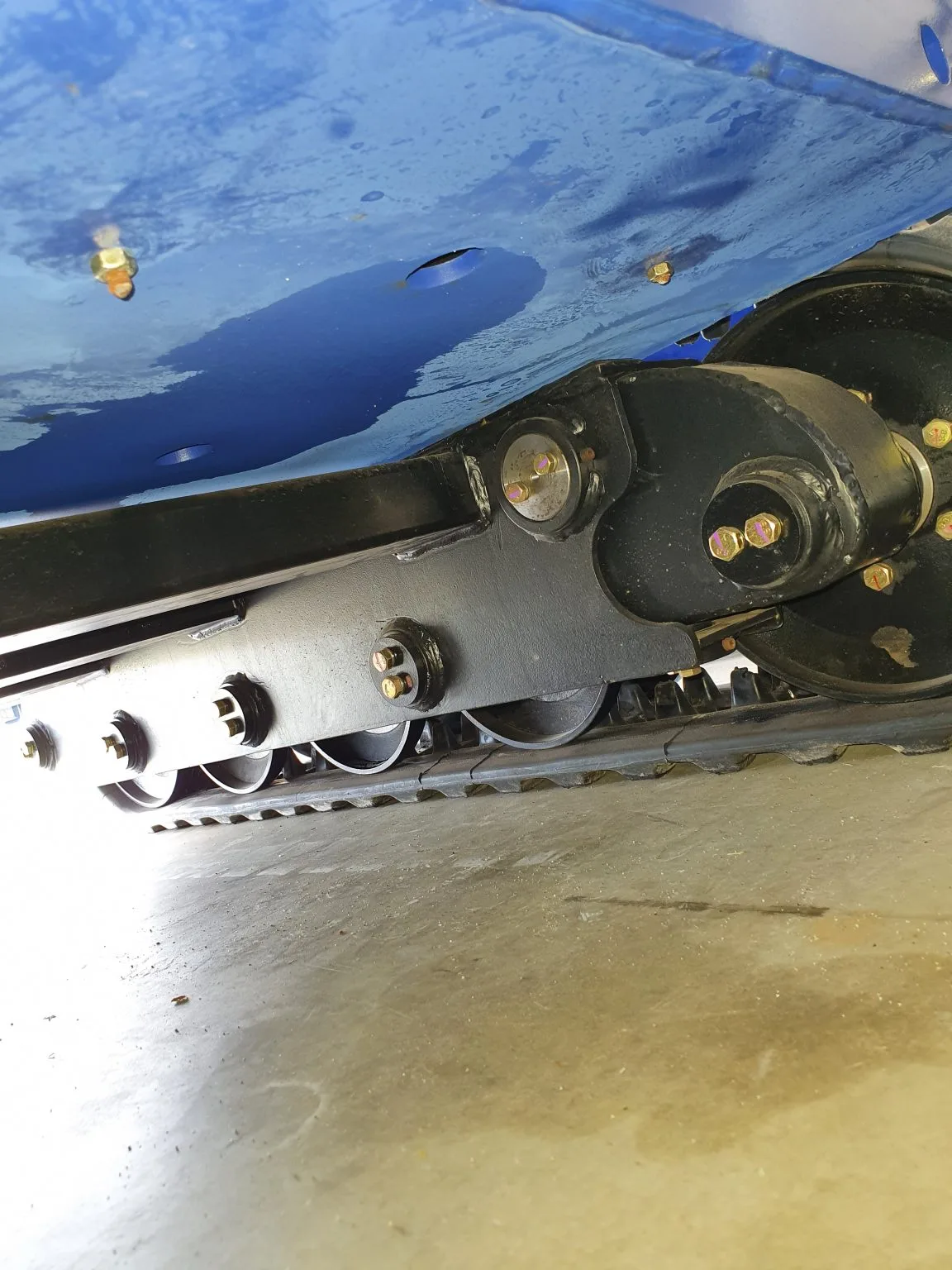

Load Rollers Reduce Ground Pressure

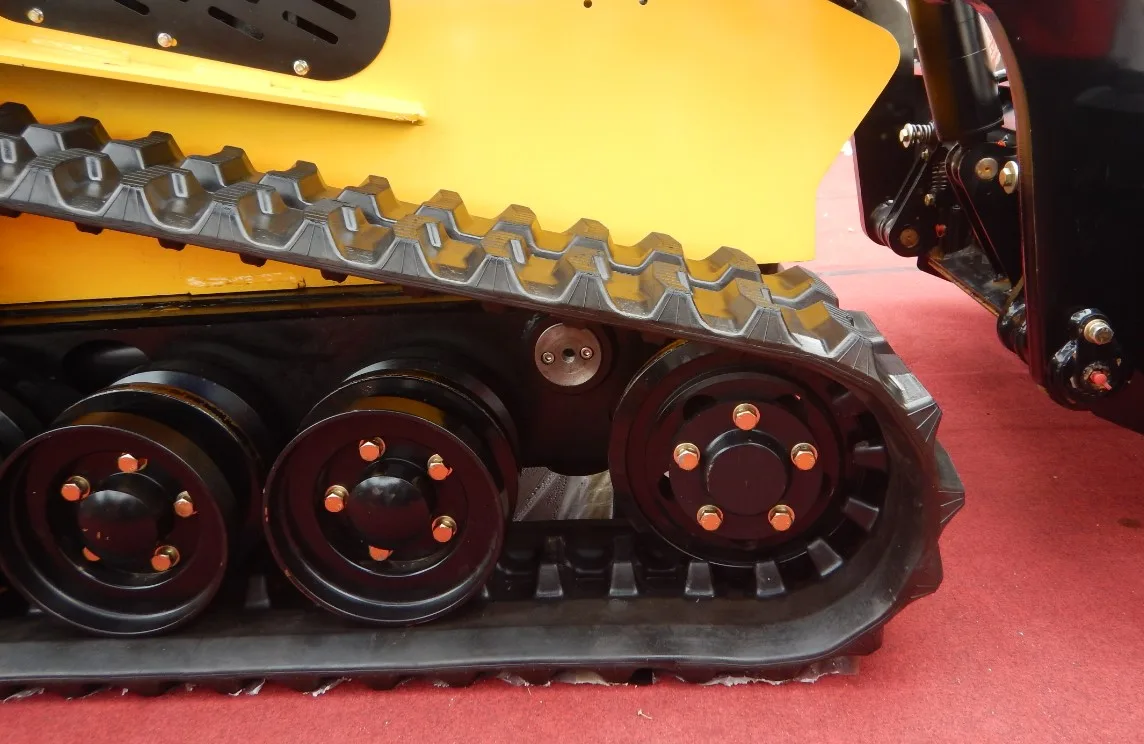

Front Idler Recoil Spring to Reduce Shock

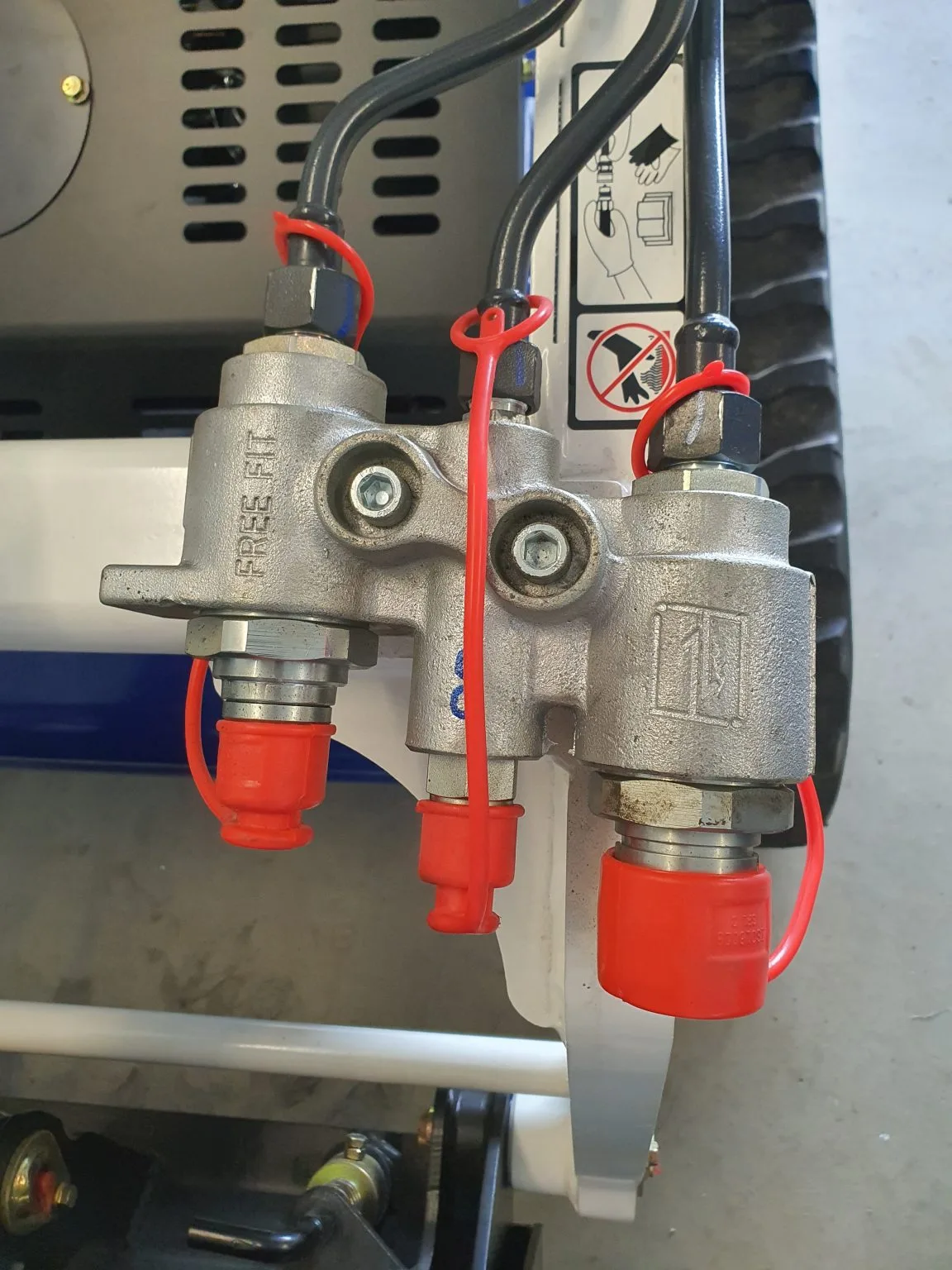

Couplings
Bronze Bushes for Bucket Arms
SPECIFICATIONS:
DIMENSIONS:
ENGINE
Engine Make
Perkins (Europe)
Fuel Type
Diesel
Rated Power
30 hp (22.4 kw)
Electrical
12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump Brand
Hansa TMP (Italian) x 3
Valve brand
Hydra Control Joystick (Italian)
Pressure
2610 PSI (180 Bar)
Flow
36 L/Min
Cooler
Alloy Radiator
DRIVING SYSTEM
Motor Brand
Danfoss (Denmark)
Pressure
3625 PSI (250 Bar)
Flow
62.4 L/Min
Speed
8 Km/h
AUX CIRCUIT
Valve Brand
Trinity Flat Faced Couplers (Italian)
Pressure
2610 PSI (180 Bar)
Flow
36 L/Min
FLUID CAPACITIES
Fuel
40 L Diesel
Hydraulic Oil
40 L
Engine Oil
4.7 L
Coolant
RATED LOAD
50% of Tip Capacity
400 kg (Optional Counter Weight 600 kg)
35% of Tip Capacity
280 kg (Optional Counter Weight 420 kg)
DIMENTIONS
Height to Bucket Hinge Pin
2000 mm
Width
1070 mm
Weight
1330 kg
Height Max
2694 mm
Height Min
1496 mm
Length with Bucket
2695 mm
Length without Bucket
2067 mm
Wheelbase
1080 mm
Ground Clearance
100 mm
Angle of Departure
23 deg
Custom Options
Attachments – Massive Range Ask Us !!
Custom Colour.
Ready to go Machine / Trailer / Work Tool Packages
Counter Weights – For Extra Capacity
