Get Higher Ground Clearance & Faster Travel Speed!

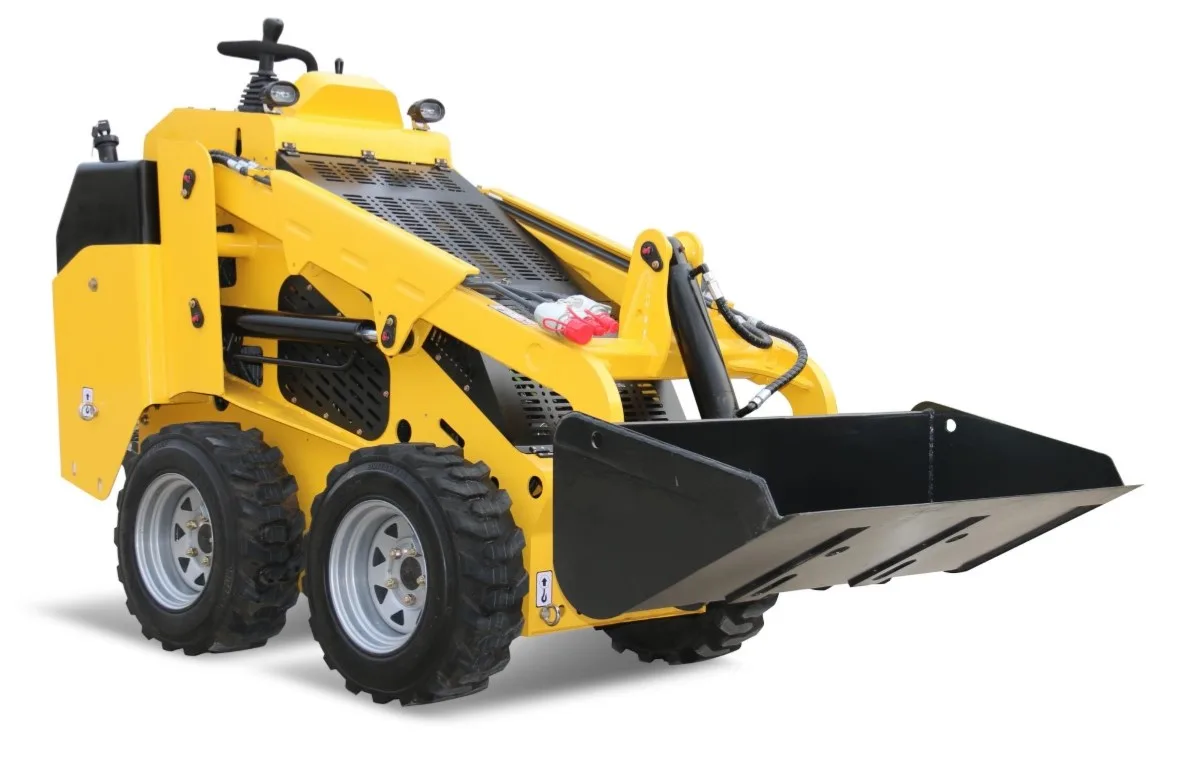

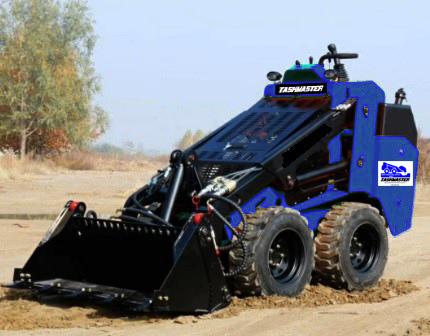

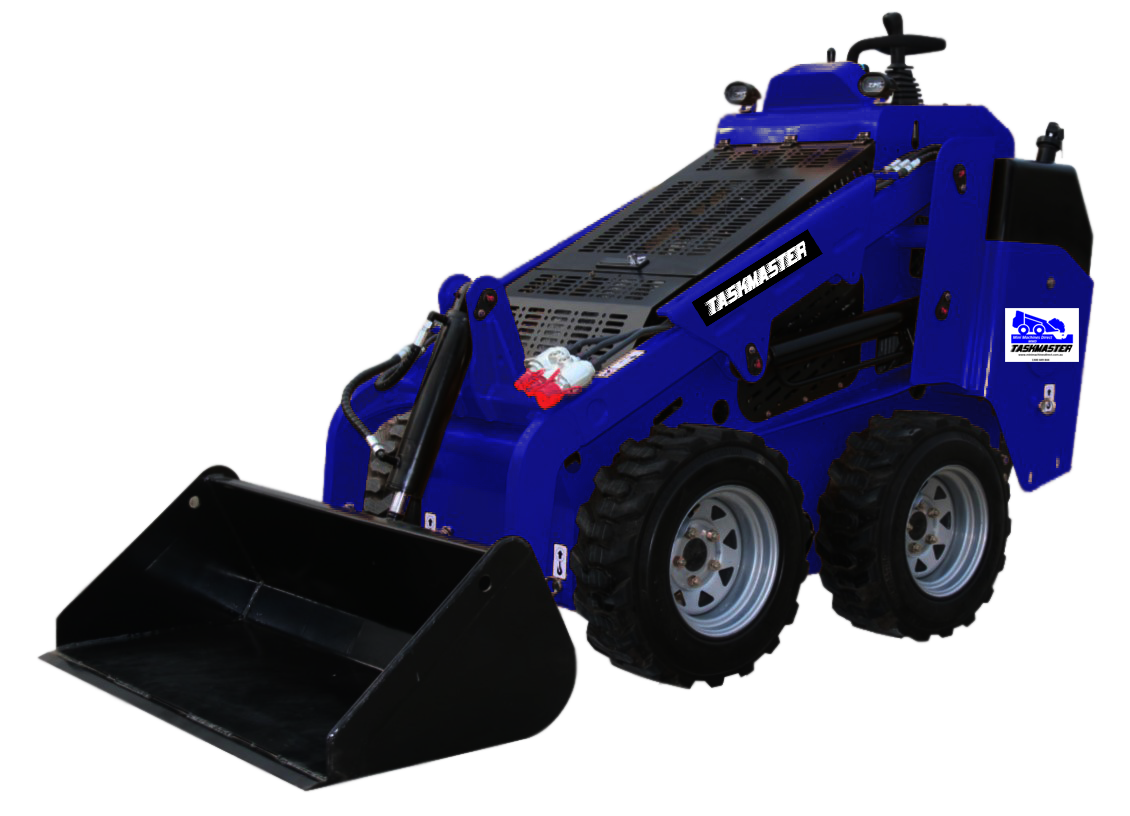

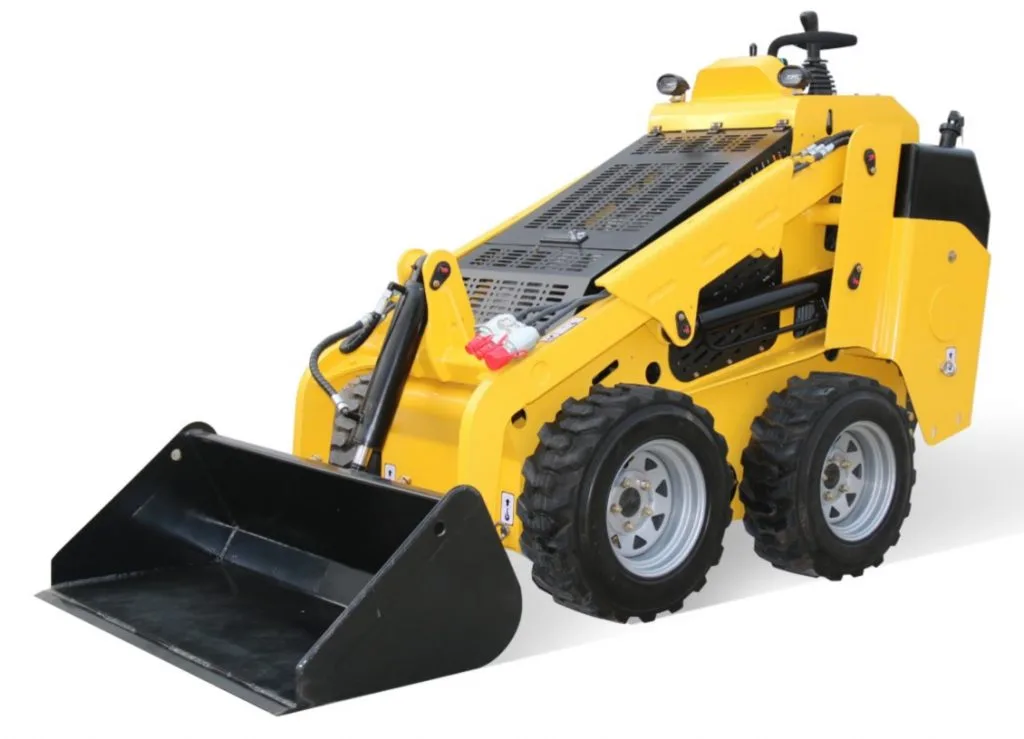

Wheel Drive – 30hp Perkins Diesel Engine TM30W

$ 30,000 including gst
Includes 4/1 Bucket (teeth) !!
*RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

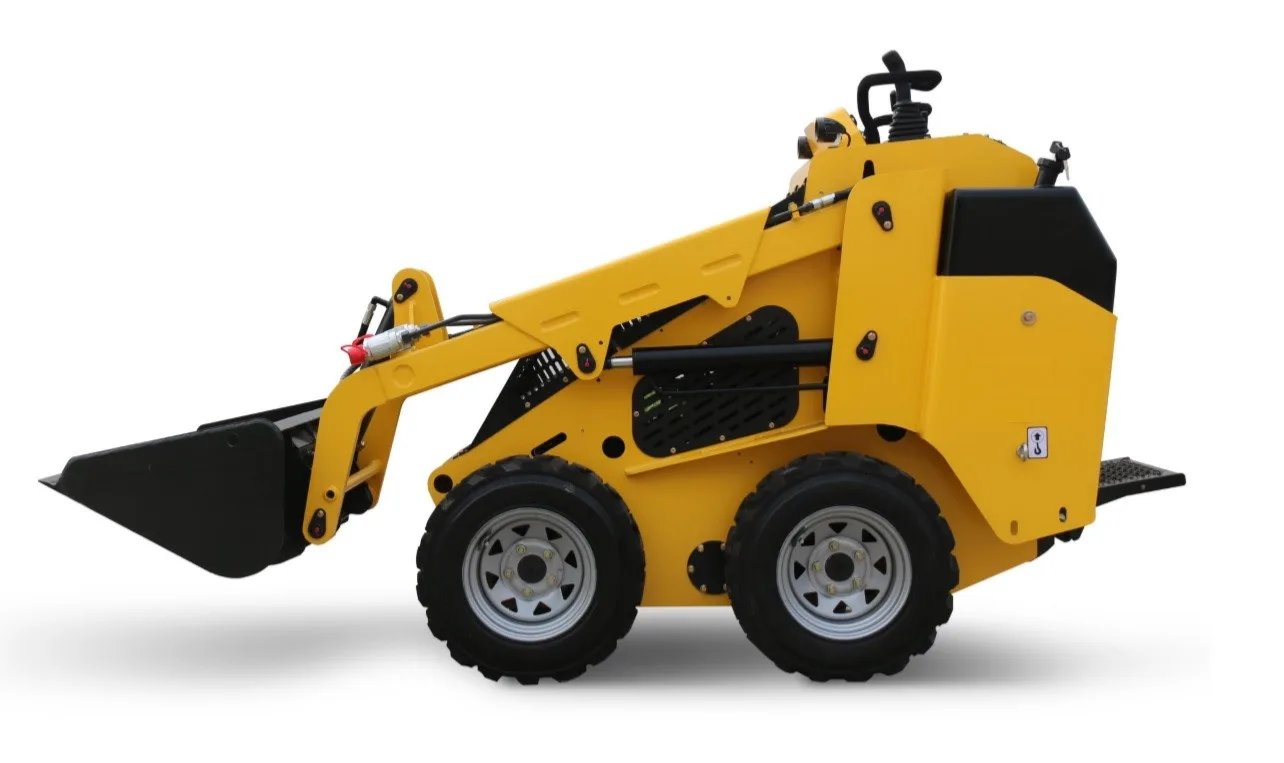

  • Right View

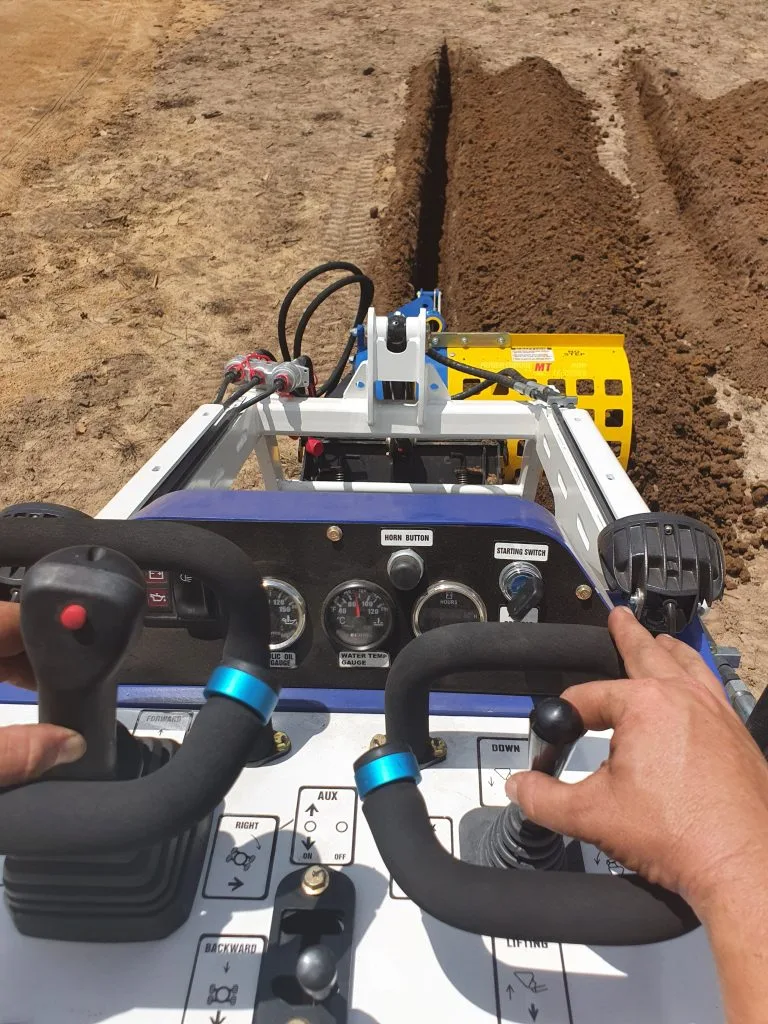

  • Pilot Operated Joystick
  • LH View
  • Digital Display Machine Monitoring
  • Lockable Rear Access Panel
  • Super High Reach
  • 12 inch Tires
  • New Machine Line Up

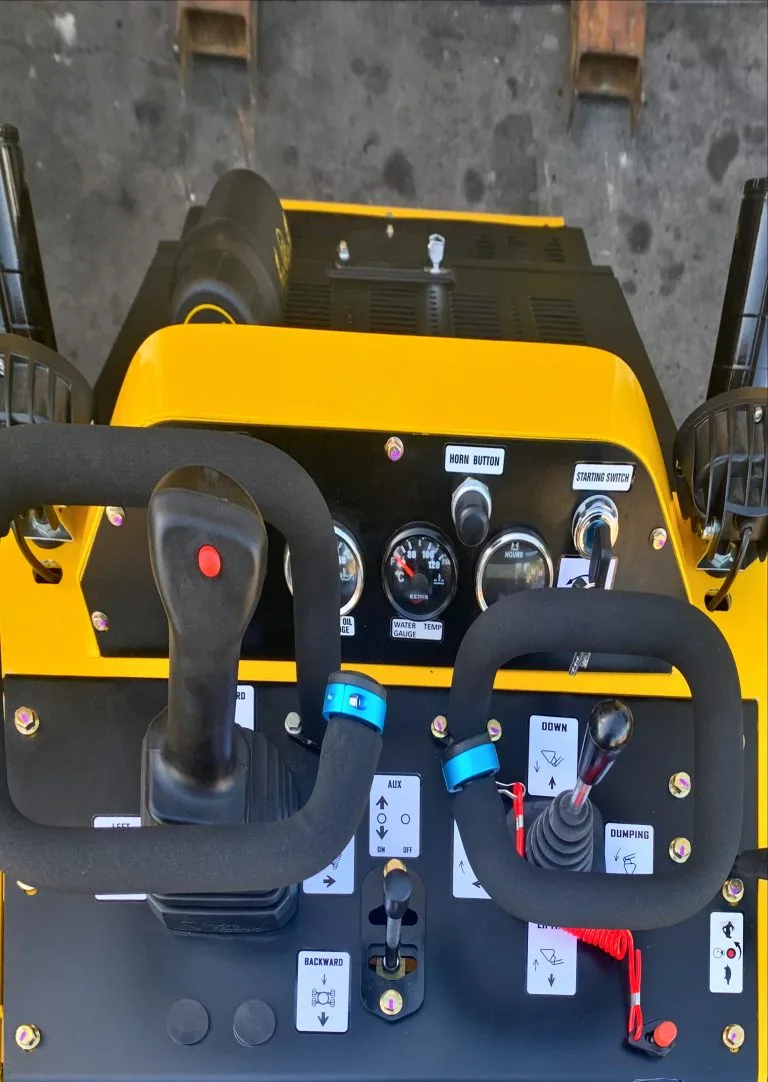

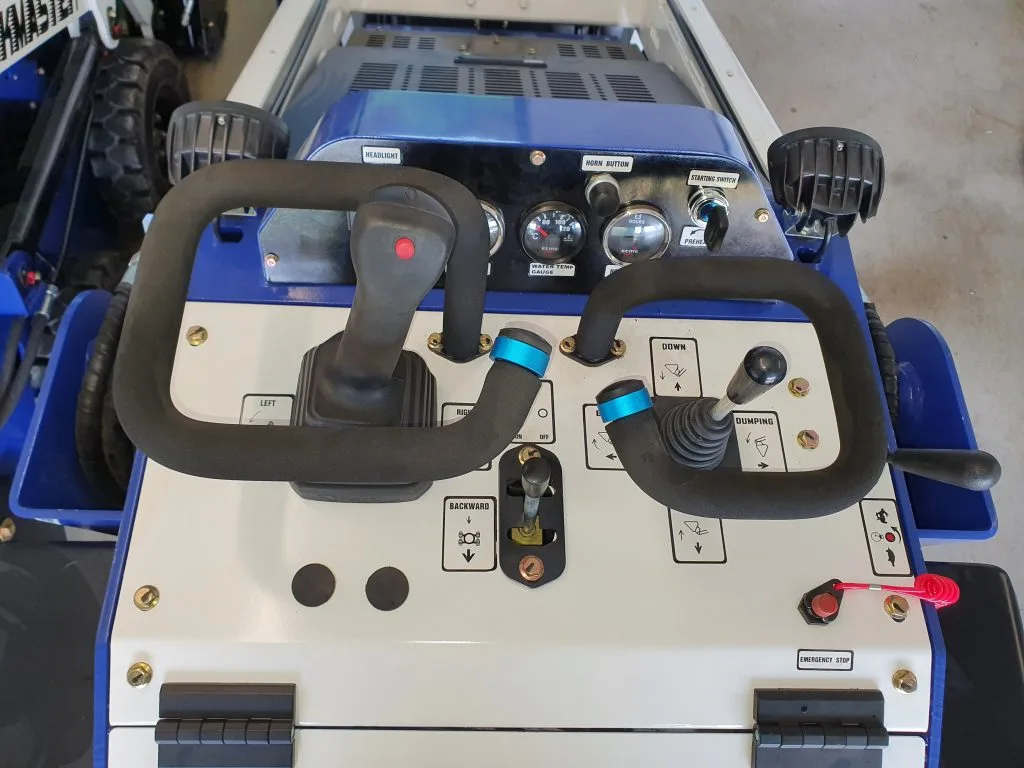

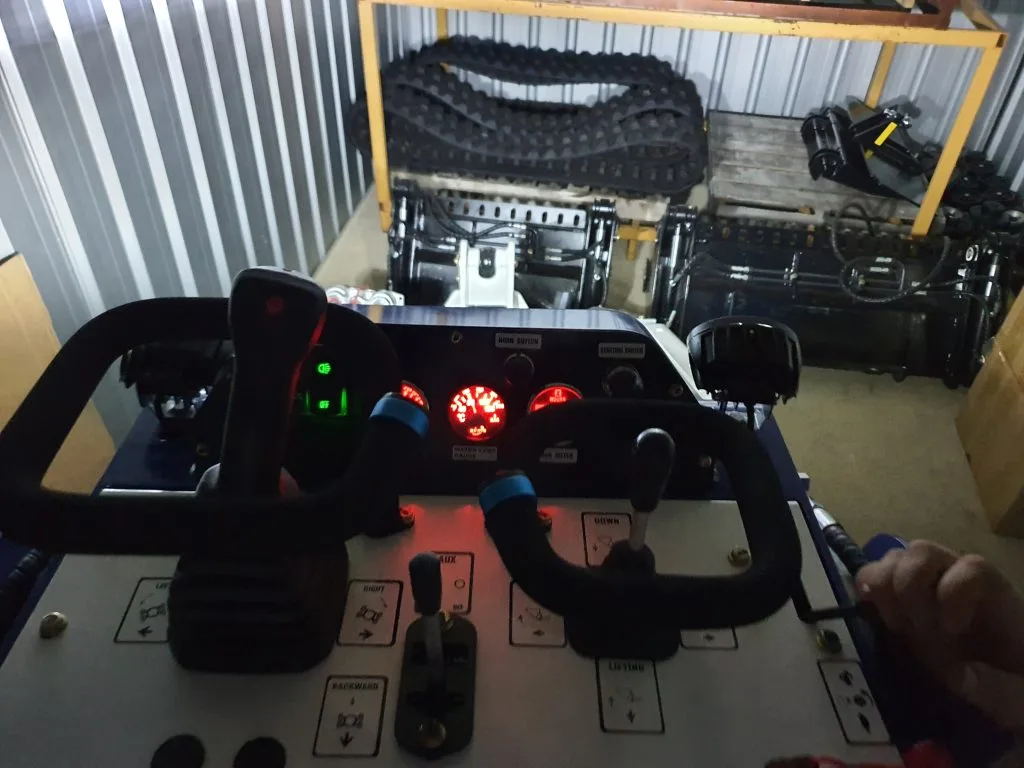

  • Instrument Control Panel. Pilot Operated Joystick.
  • Tough Metal Hydraulic Oil and Fuel Tanks
  • Easy Access for Servicing
  • Spring Suspension for Operators Platform
  • General Perpose Bucket
  • Counter Weights for Increasing Lift Capacity
  • Italian Attachment Couplings
  • Bronze Bushes for Bucket Arms
  • 4 in 1 Bucket – Doze, Dig, Dump, Carry, Clamp, Grab, Optional Teeth
  • Joystick Steering Control – Soft Touch for Less Operator Fatigue
  • Lift Arm Float Control – Spread Soil Easily by Back Blading
  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Diesel Engine and Hydraulic Oil
  • 3 Hydraulic Pump System – For Efficient Separation of Power to Attachments, Bucket Controls, and Wheels
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check
  • Auxiliary Hydraulic Outputs – Operate Many Work Tools

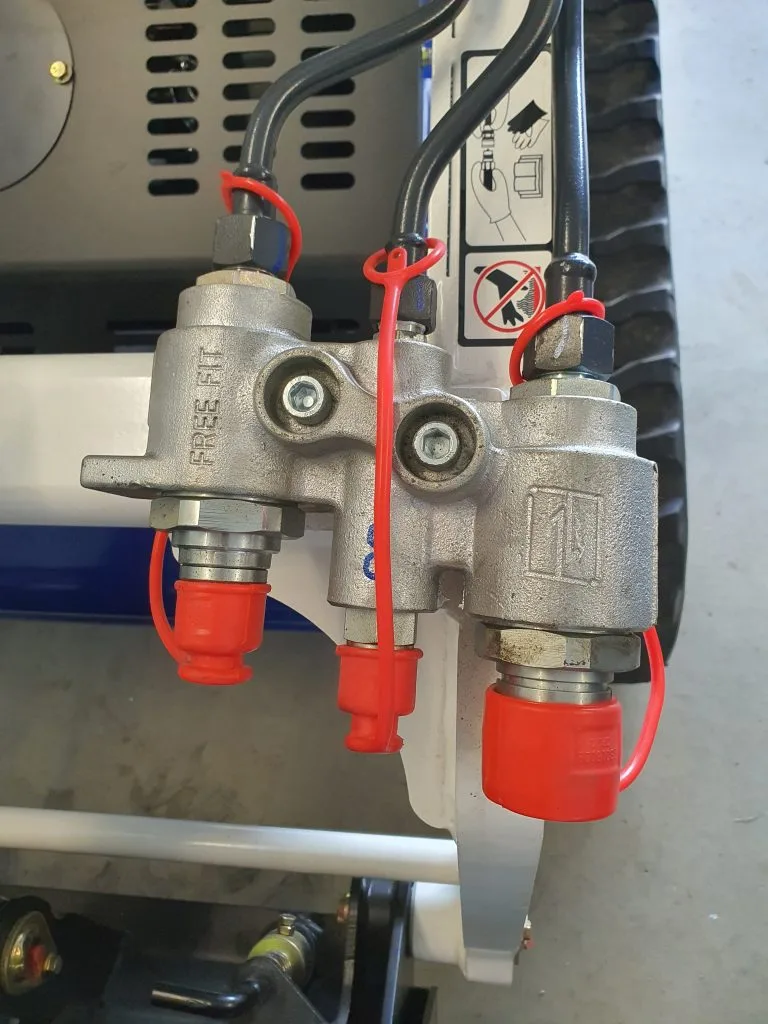

  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish

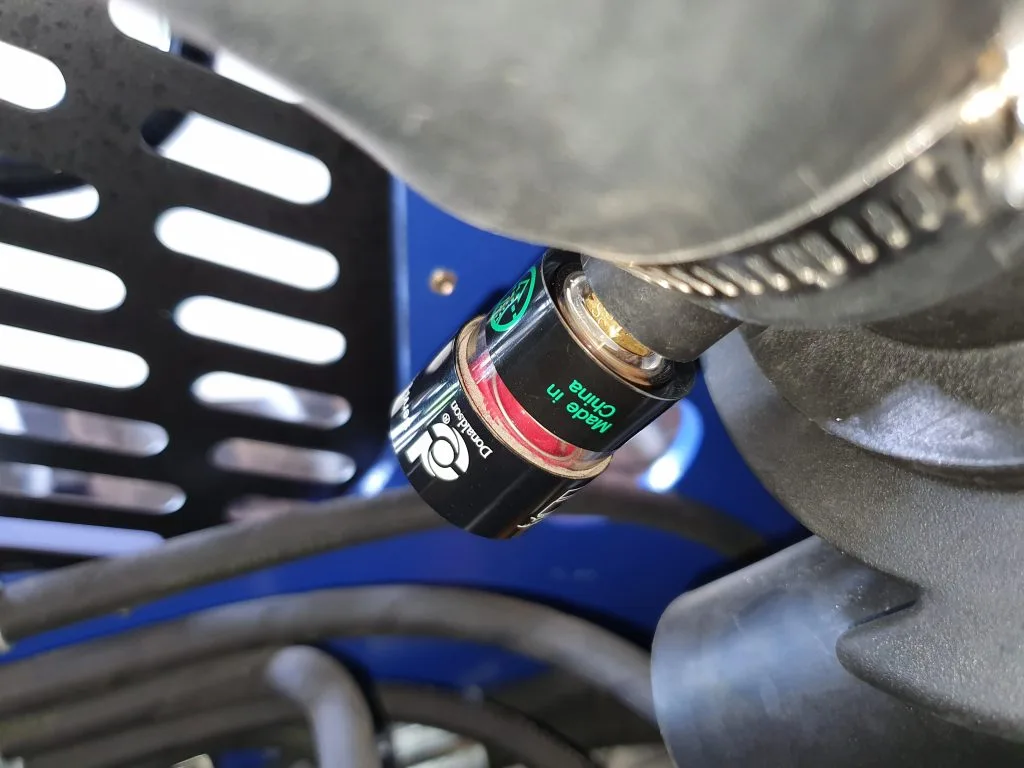

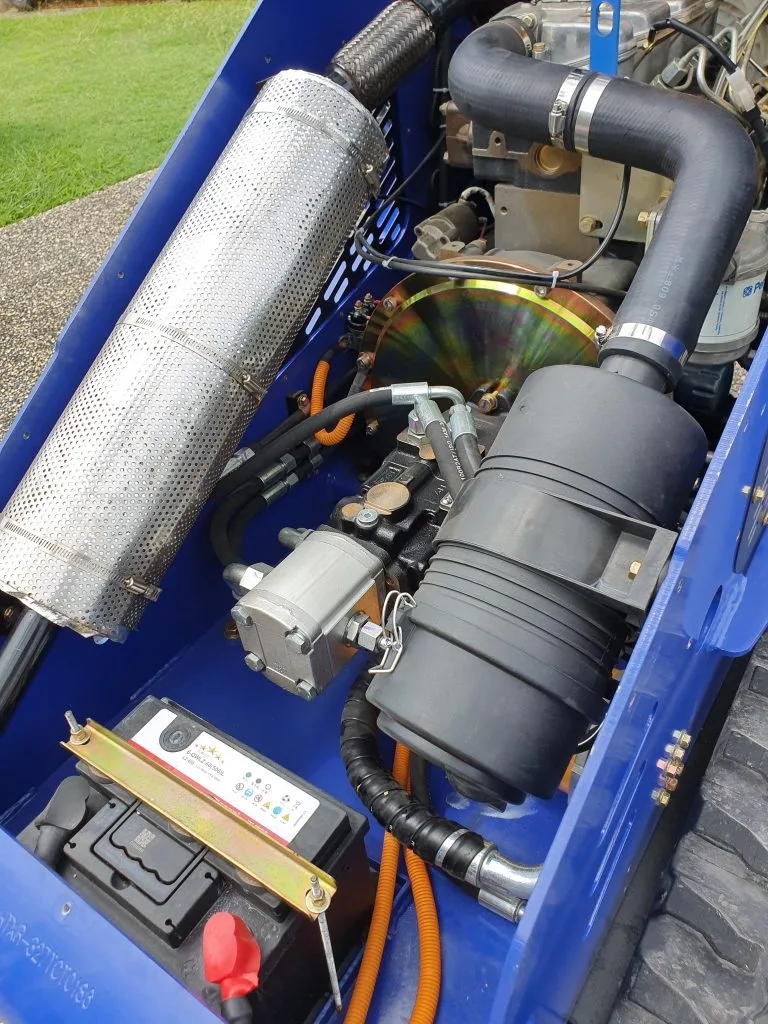

  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Japanese NSK Bearings and Grade 60H Chains – For Longer Life
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power
  • Muffler Insulation – Reduces Under Bonnet Temperature

  • Standard Attachment Mounting Plate – Fits Most Common Attachments
  • Operator Platform Suspension – Provides Great Visibility and Operator Comfort

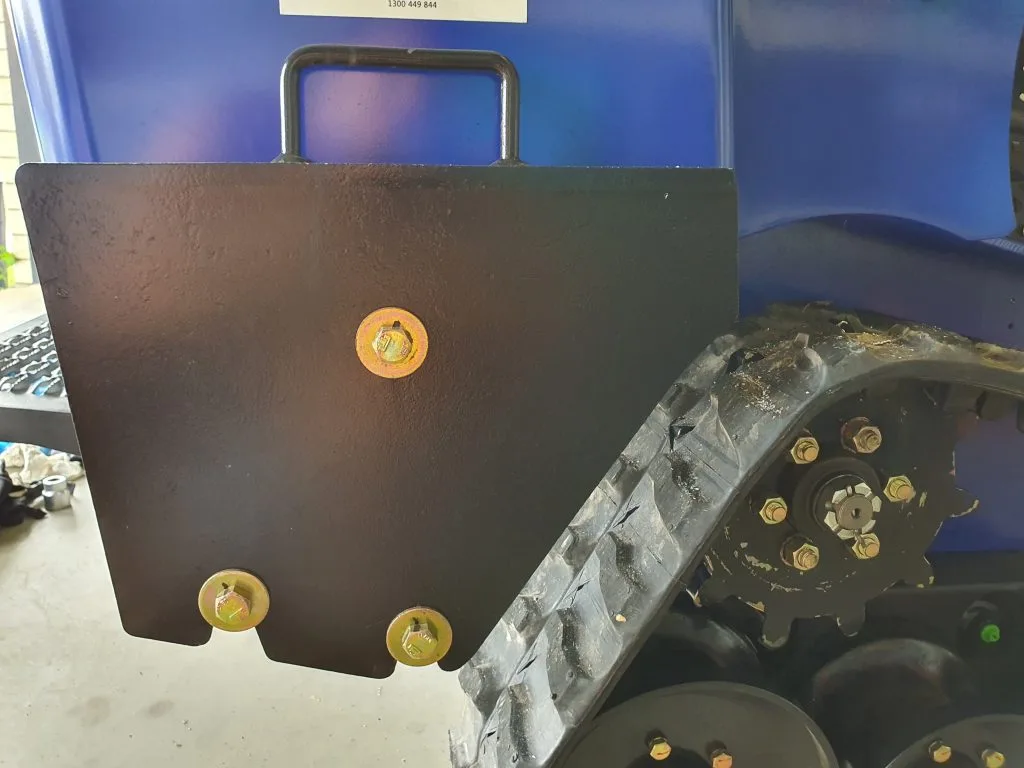

  • Counterweights – Added Lift Capacity

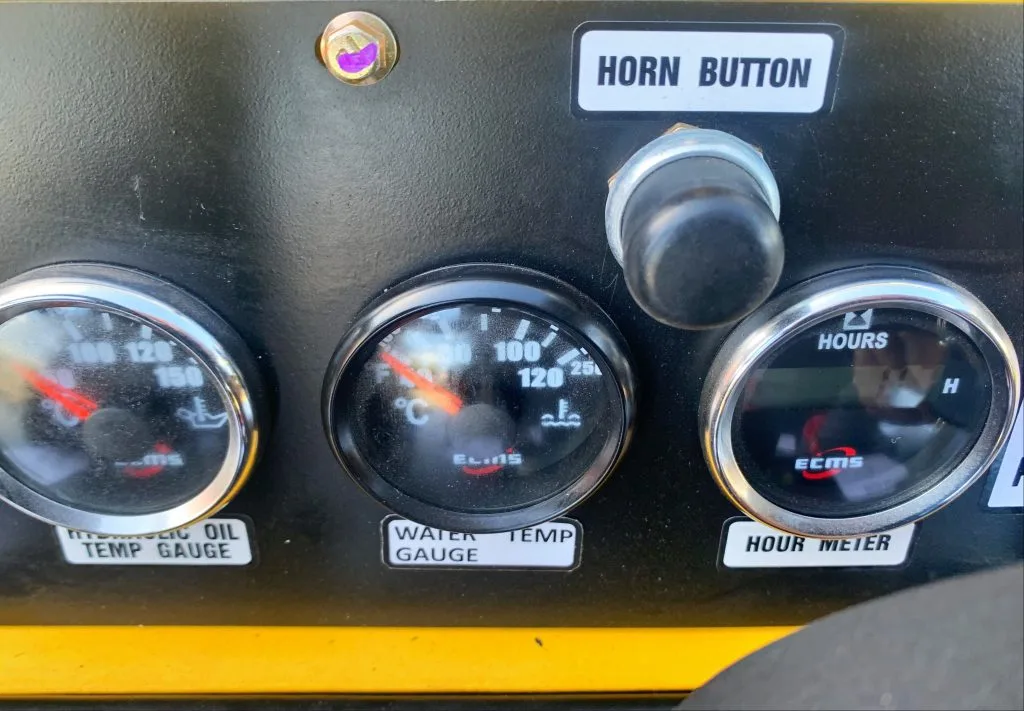

  • Gauges and Warning Lights – Machine Protection

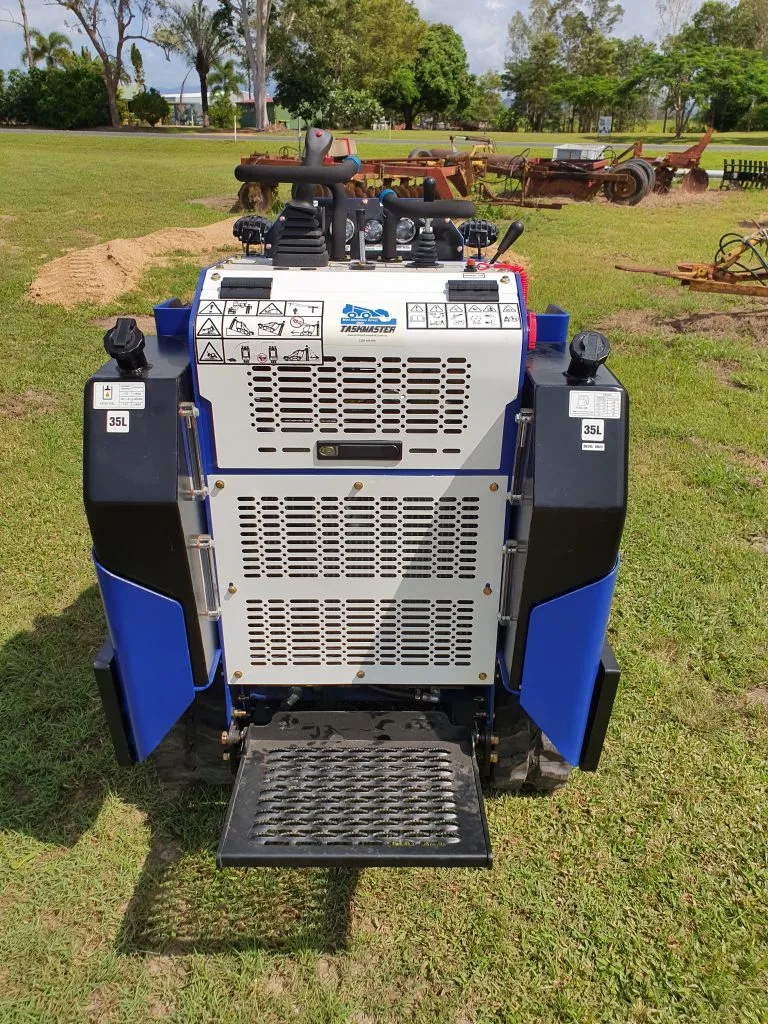

  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life
  • Tie Down Locations – Safe Security for Transporting
  • Lift Hook Locations – Safe Lifting of Machine
  • Key Locks on Access Panels and Fuel Caps – For Security
  • Service Kit and Tools – Maintenance items

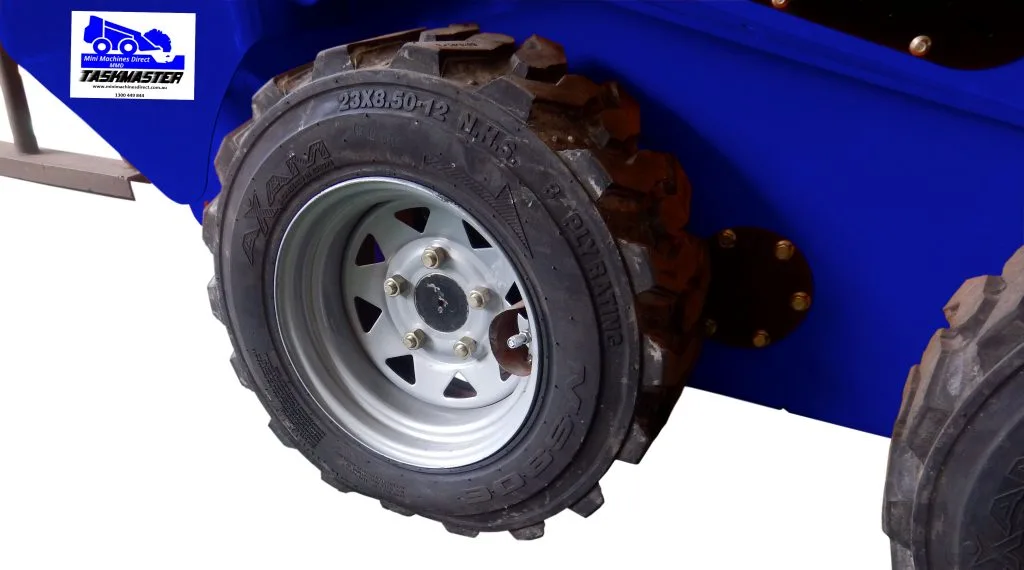

  • Tires – 23×8.5-12 – Better ground Clearance (Optional Tread Patterns)
  • Emergency Stop Switch – Operator safety
  • Operators Manual – Water Proof Holder for Safety and Protection
  • Reverse Stop Panel – Operator Safety
  • LED Lights – Day and Night Vision

SPECIFICATIONS:

DIMENSIONS:

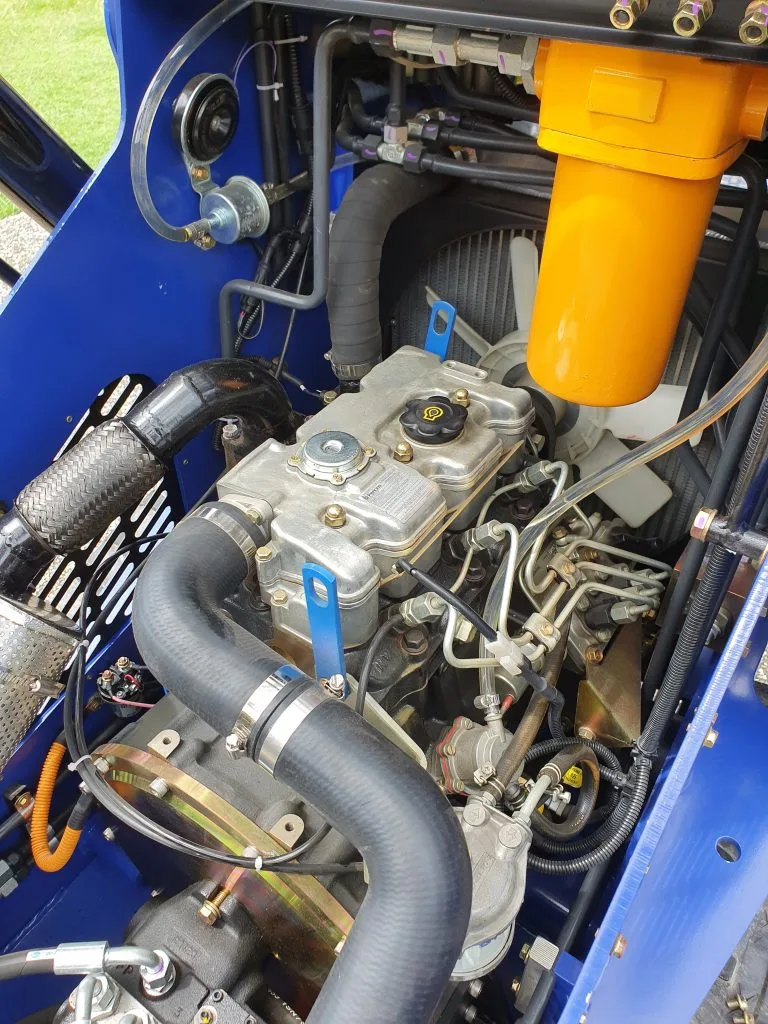

ENGINE
Engine MakePerkins (United Kingdom)
Fuel TypeDiesel
Rated Power30 hp (22.4 kw)
Electrical12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump BrandHansa TMP (Italian) x 3
Valve BrandHydro Control Joystick (Italian)
Pressure3625 PSI (250 Bar)
Flow62.4 L/Min
CoolerAlloy Radiator
DRIVING SYSTEM
Motor BrandDanfoss (Danish)
Pressure3625 PSI (250 Bar)
Flow62.4 L/Min
Speed8 Km/h
AUX CIRCUIT
Valve BrandTrinity Flat Faced Couplers (Italian)
Pressure2610 PSI (180 Bar)
Flow36 L/Min
FLUID CAPACITIES
Fuel 40 L Diesel
Hydraulic Oil40 L
Engine Oil4.7 L
Coolant
RATED LOAD
50% of Tip Capacity400 kg (Optional Counter Weight 600 kg)
35% of Tip Capacity280 kg (Optional Counter Weight 420 kg)

DIMENTIONS
Height to Bucket Hinge Pin1900 mm
Width1060 mm
Weight1200 kg
Height Max2565 mm
Height Min 1496 mm
Length with Bucket 2702 mm
Length without Bucket2075 mm
Wheelbase769 mm
Ground Clearance160 mm
Angle of Departure23 deg

Custom Options

  • Different Tire options available depending on the work site. General Purpose, Mud, Narrow, Turf, Solid.
  • Attachments – Massive Range Ask Us !!
  • Custom Colour.
  • Ready to go Machine / Trailer / Work Tool Packages
  • Counter Weights – For Extra Capacity
