Want a Cost Effective Wheeled Machine!

Wheel Drive – 23hp Briggs and Stratton Petrol Engine TM23W

$ 20,200 including gst
Includes 4/1 Bucket !!
*RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

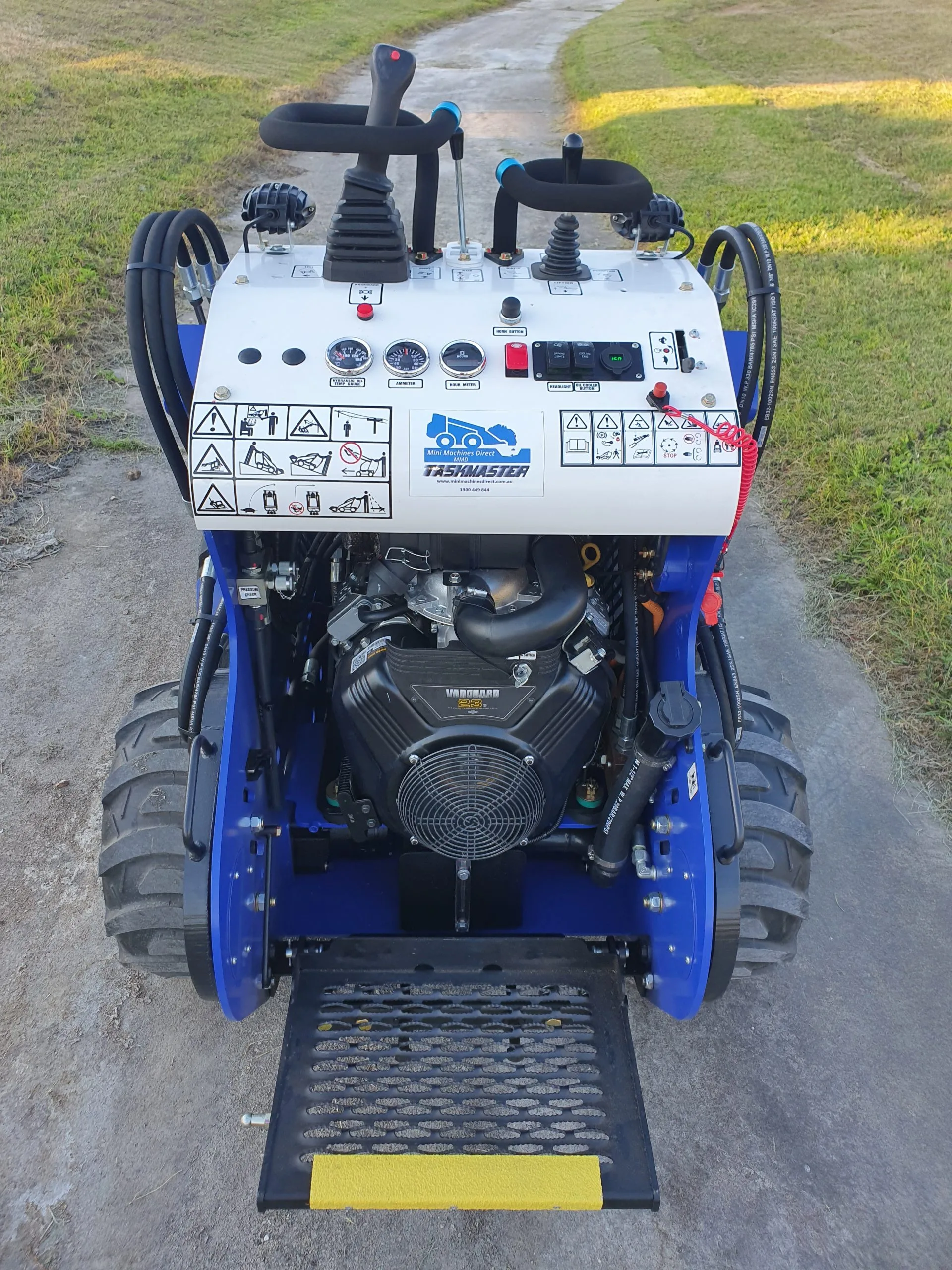

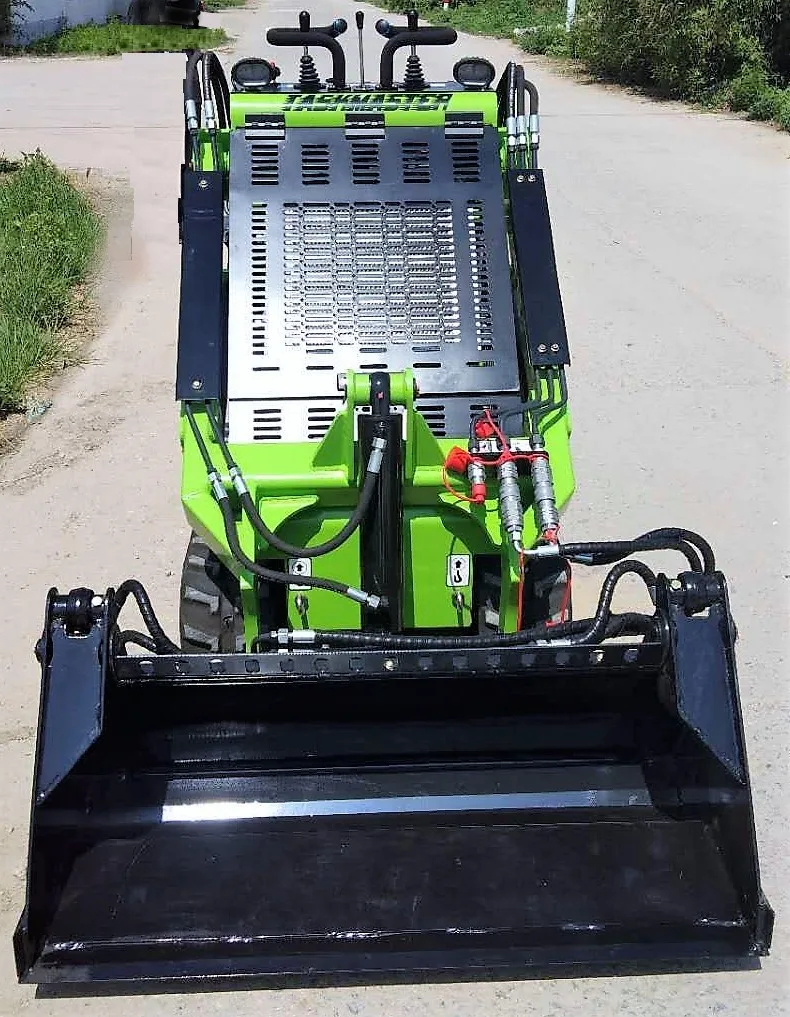

  • Front View

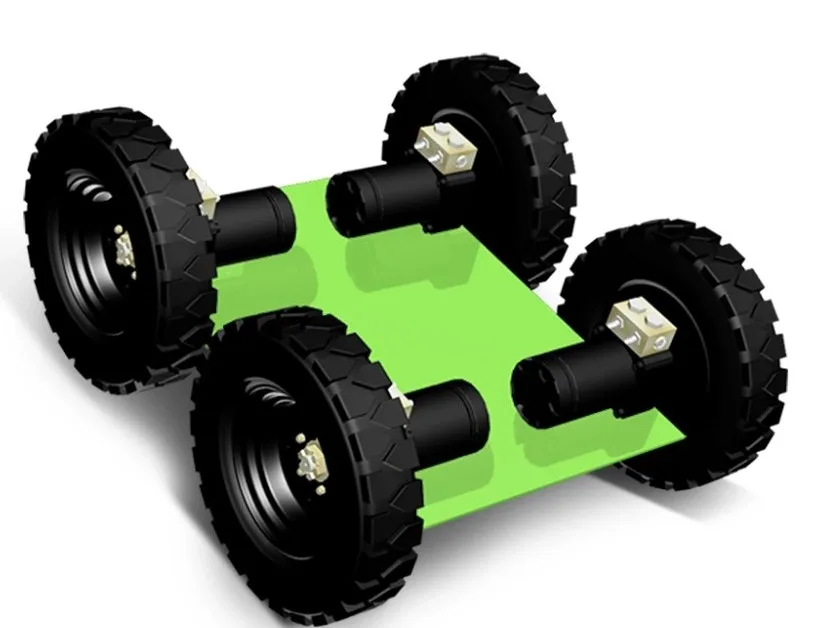

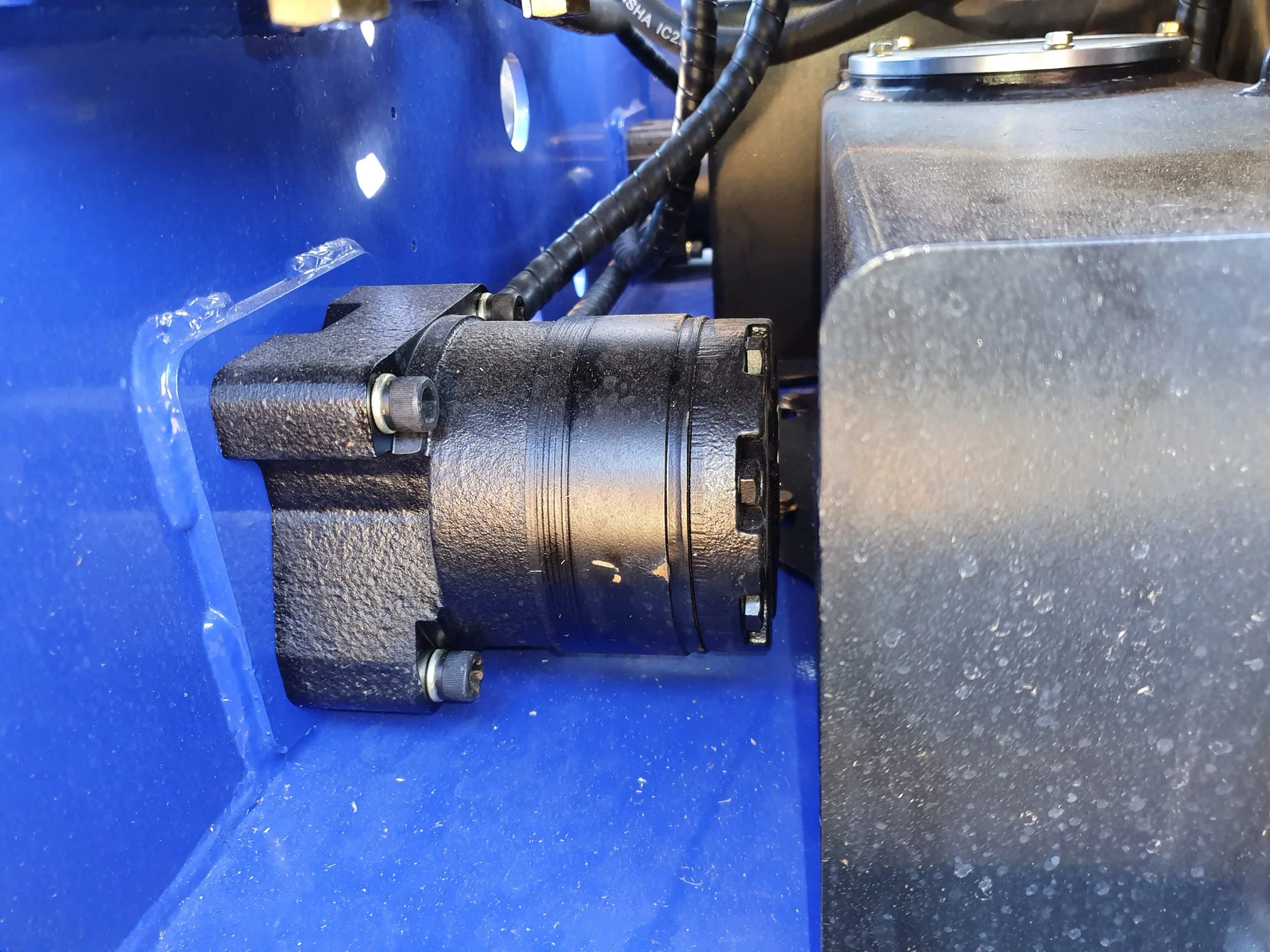

  • Four Individual Hydraulic Motors

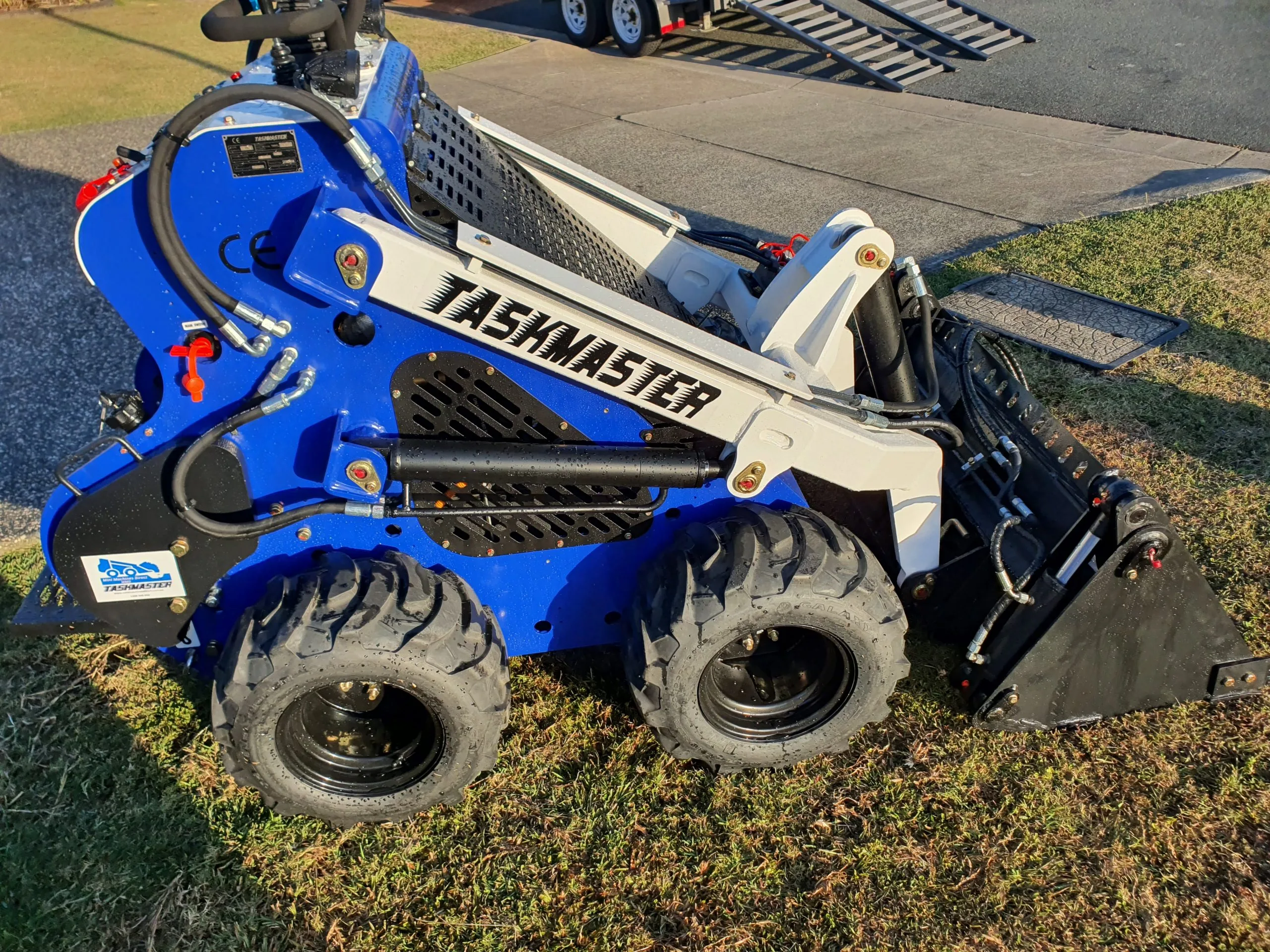

  • Right View

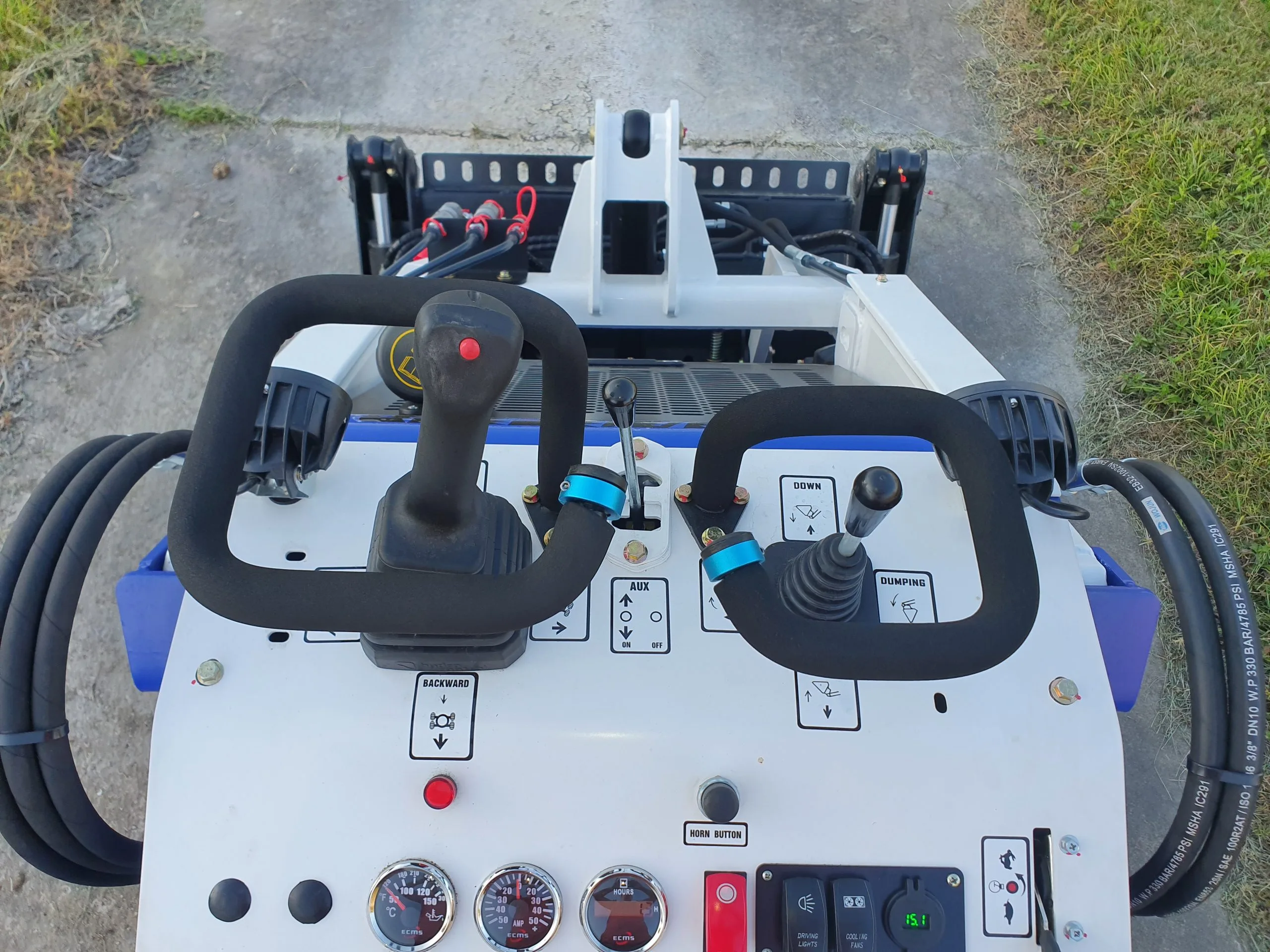

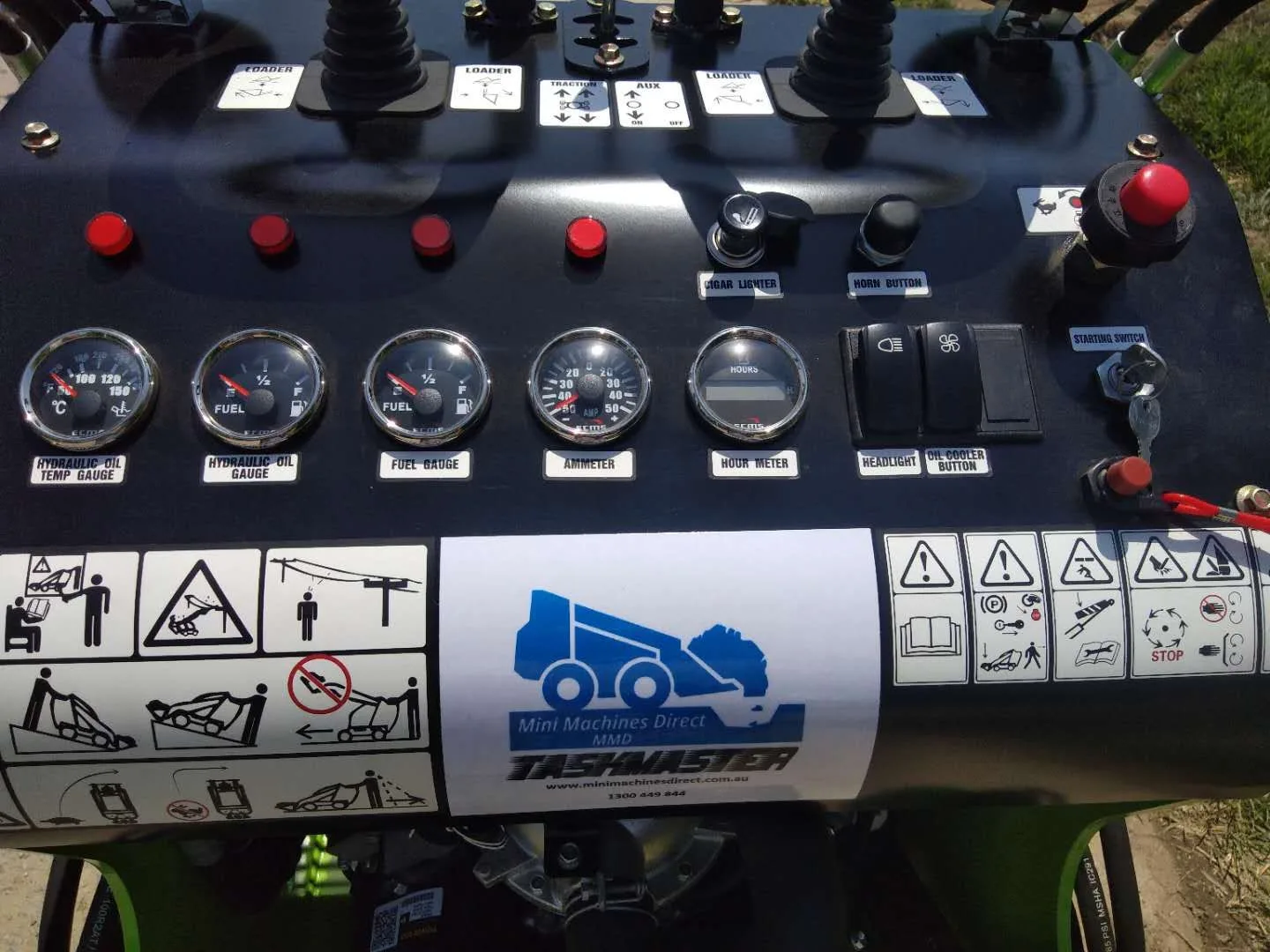

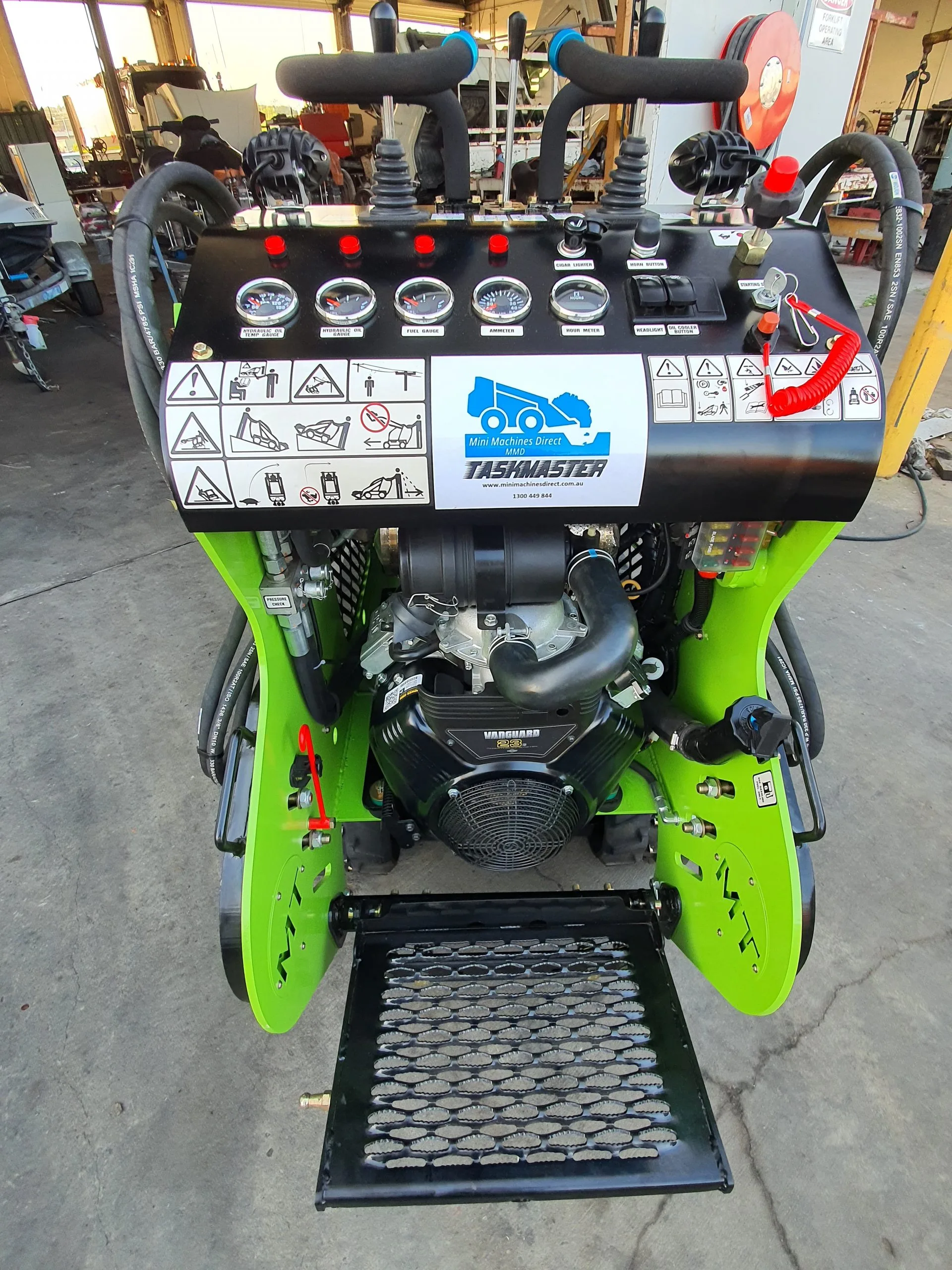

  • Instrument Control Panel

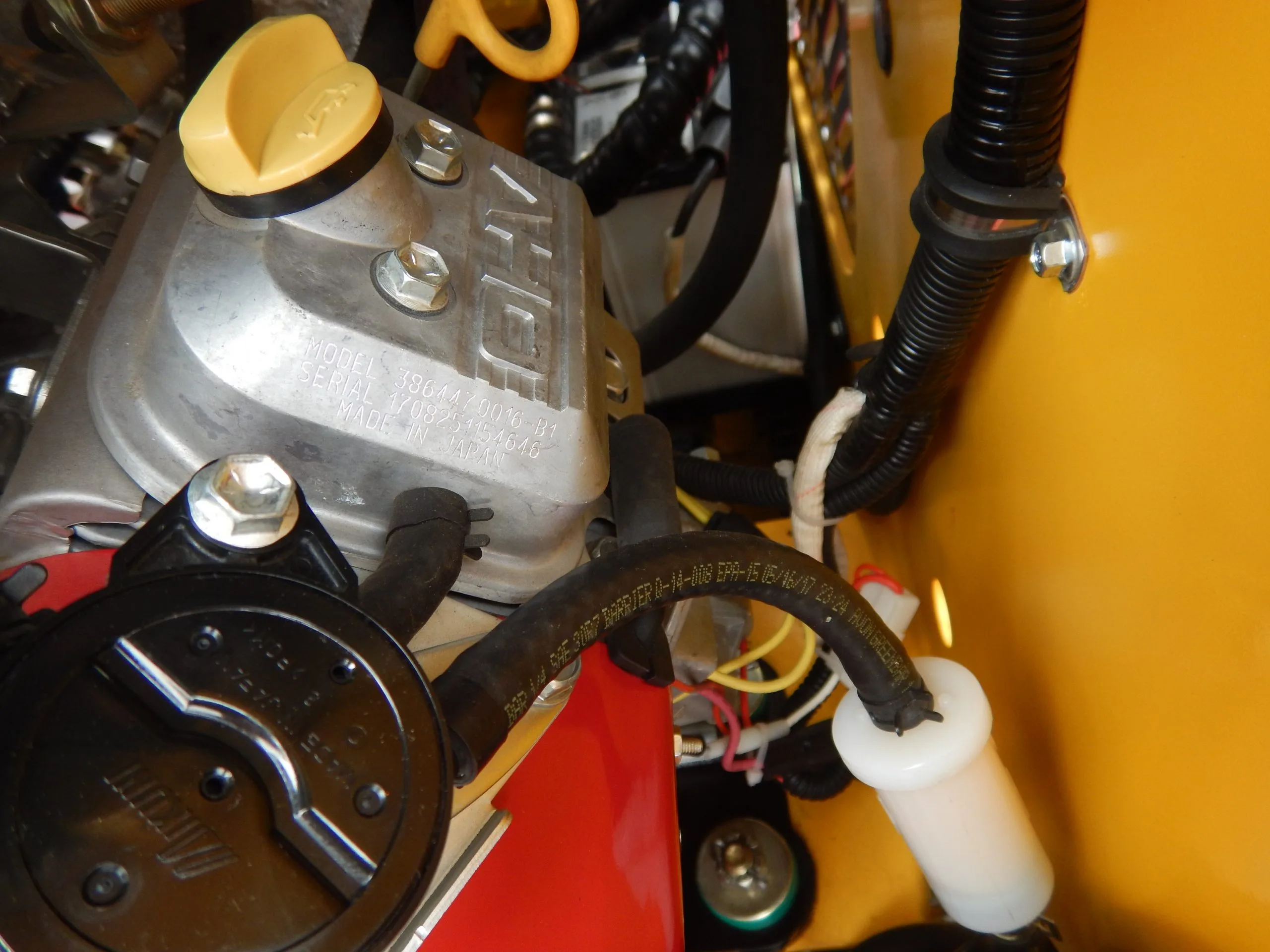

  • Proven Reliable American B&A Engine

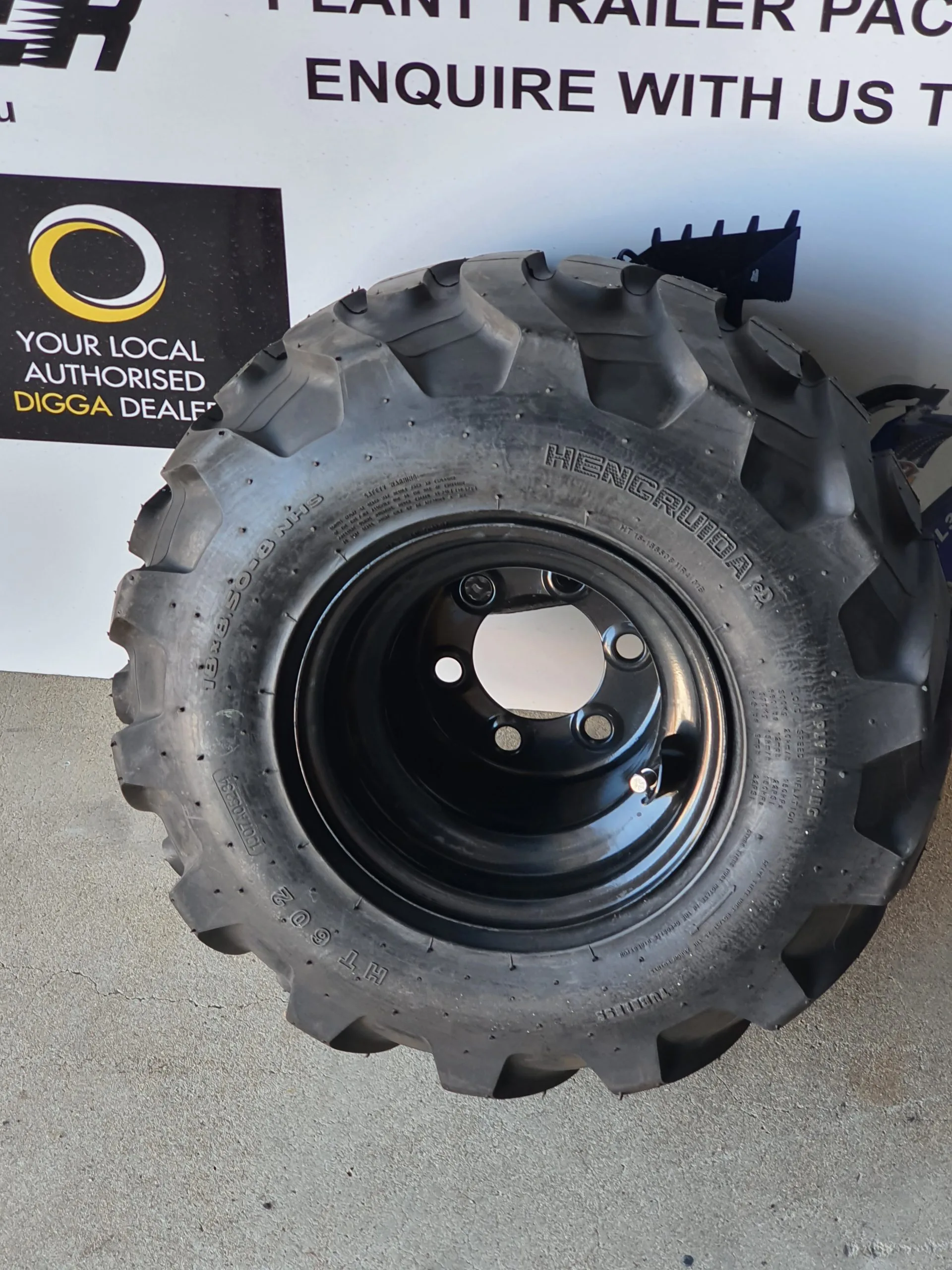

  • Mud Tires
  • Universal Attachment Mounting Plate

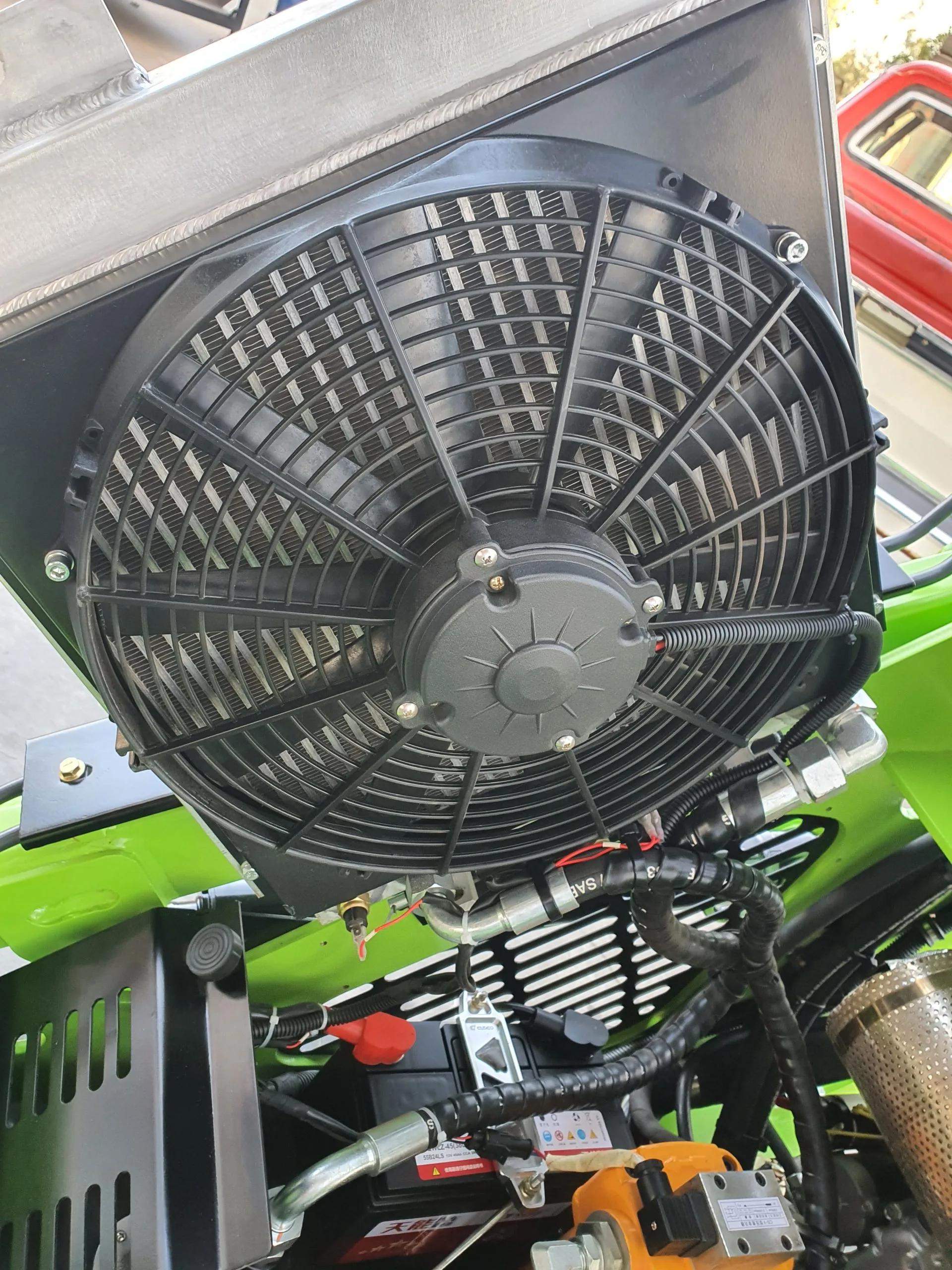

  • Cooling Fan for Australian Conditions

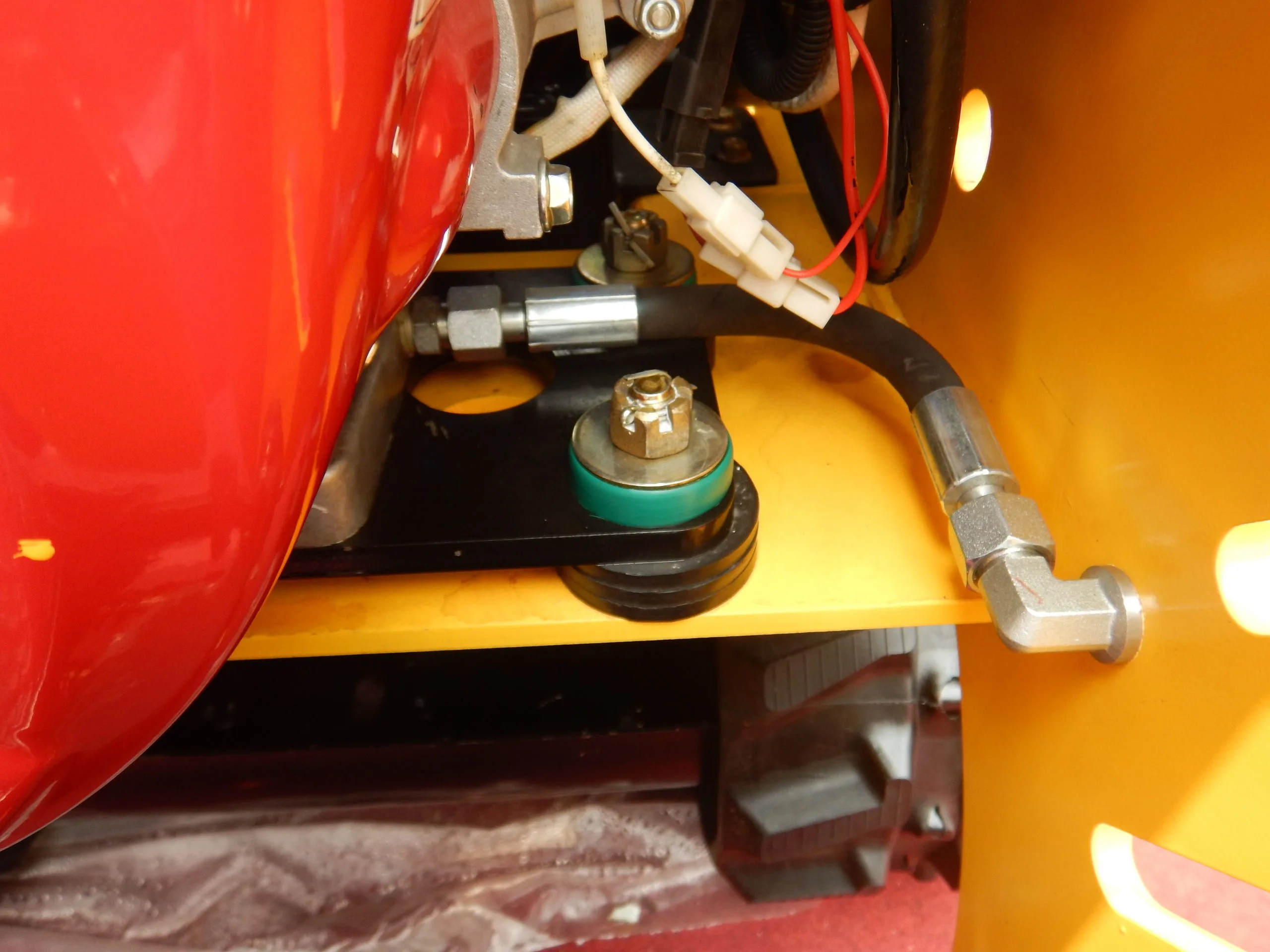

  • Suspension Operators Platform

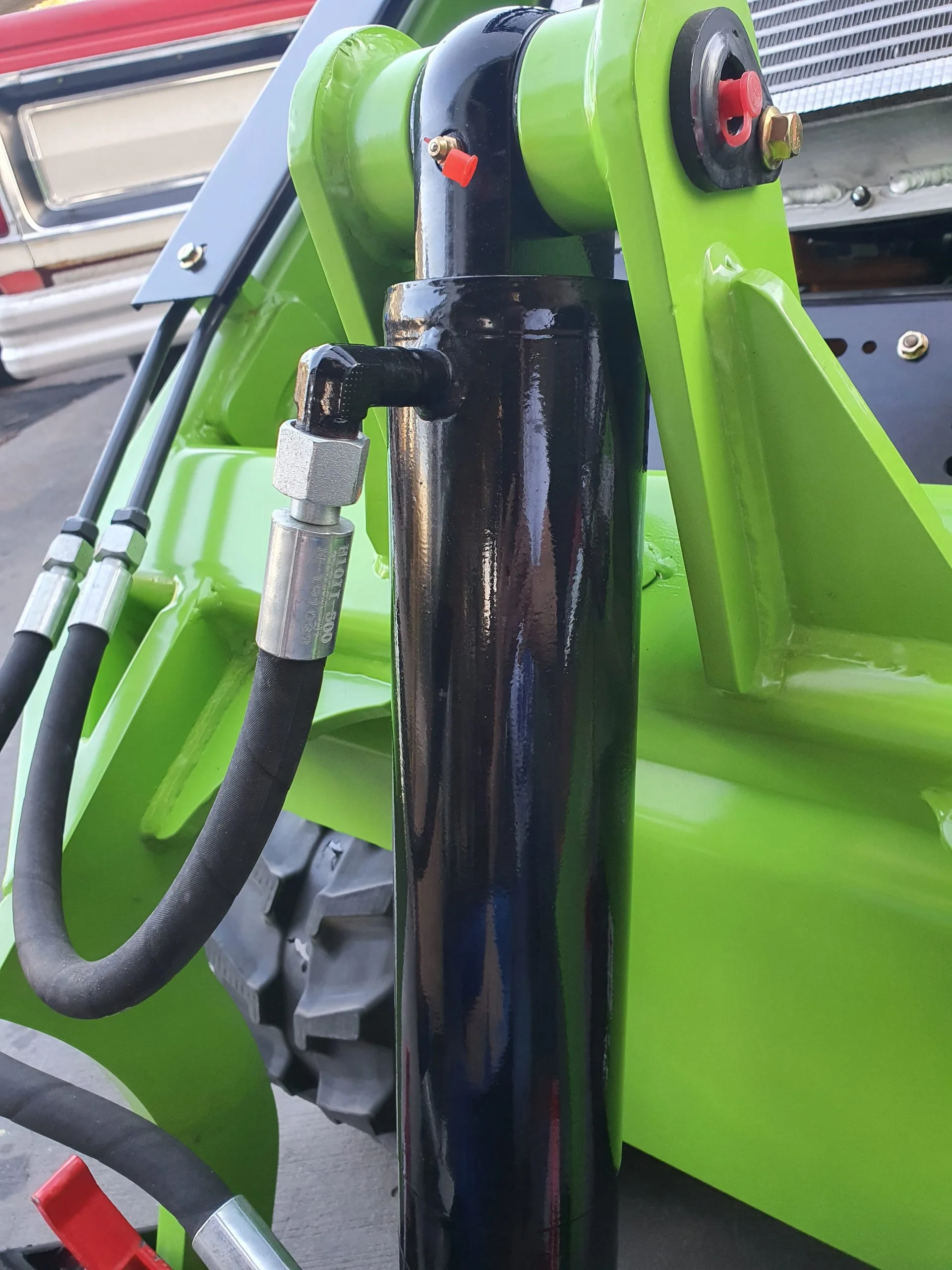

  • Large Diameter Hydraulic Cylinder for Exception Power

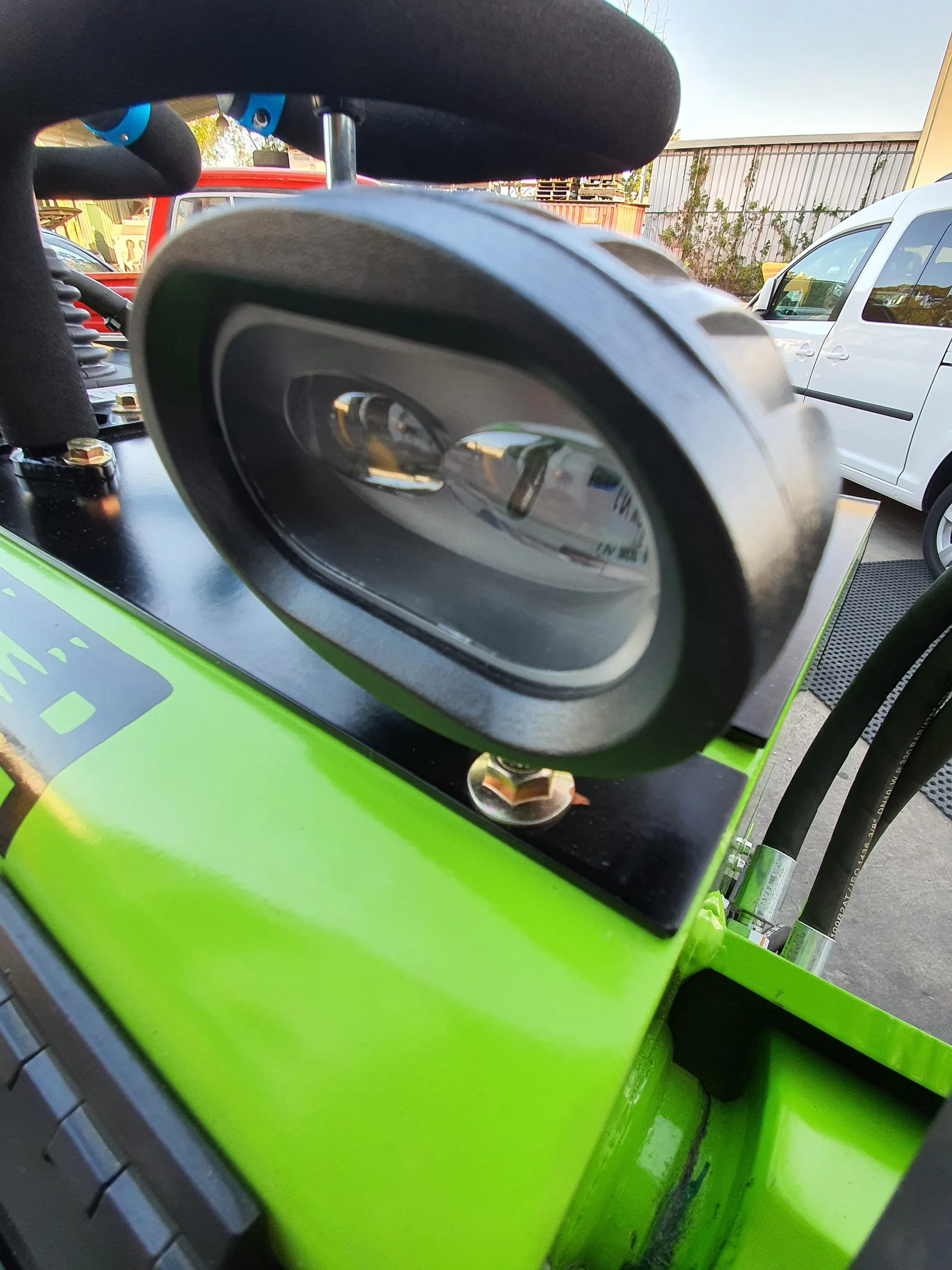

  • LED Head Lights for Safety
  • Counter Weights for Extra Lift Capacity

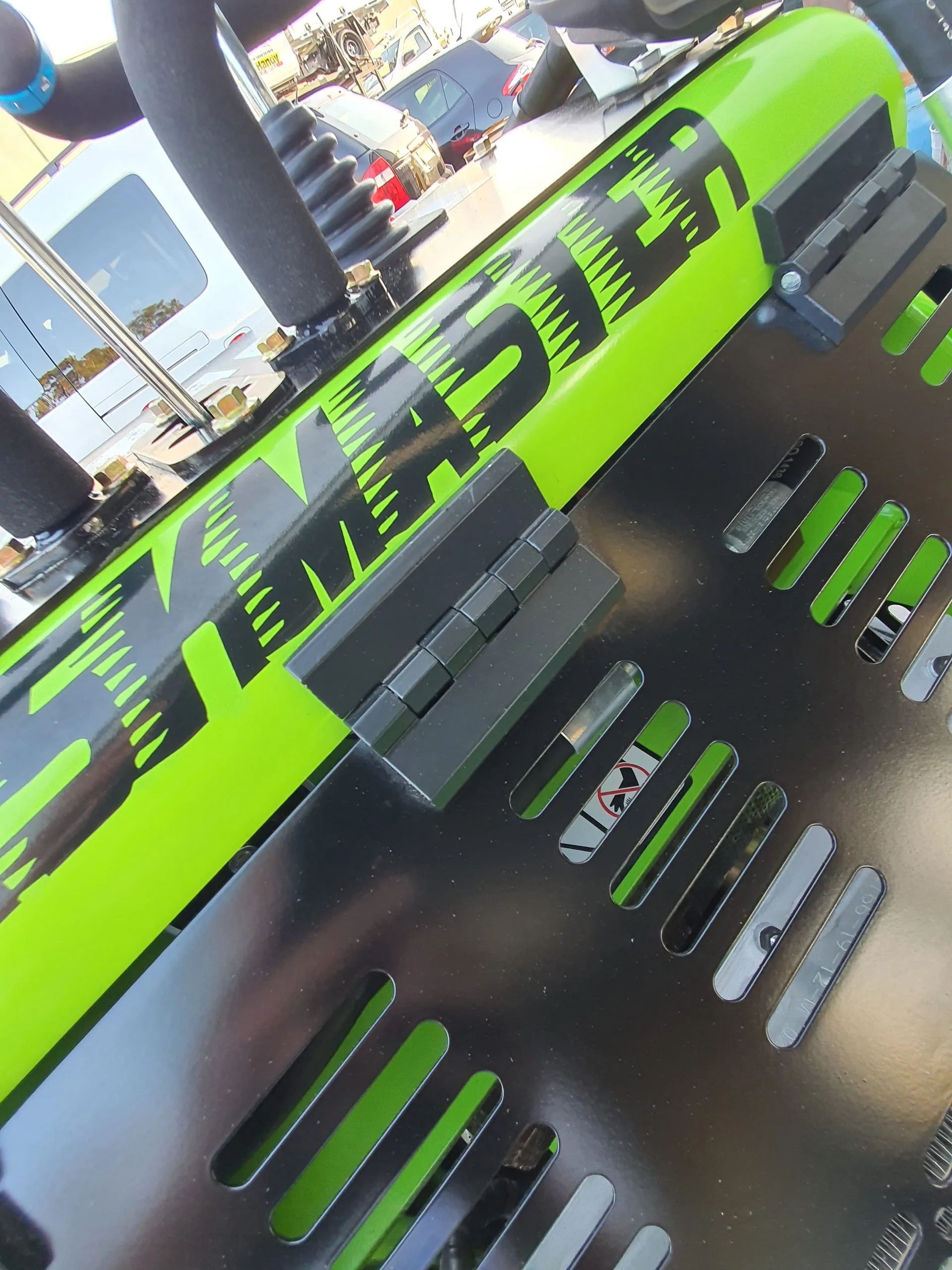

  • 3 Bonnet Hinges for Easy Access
  • Vertical Attachment Latch System

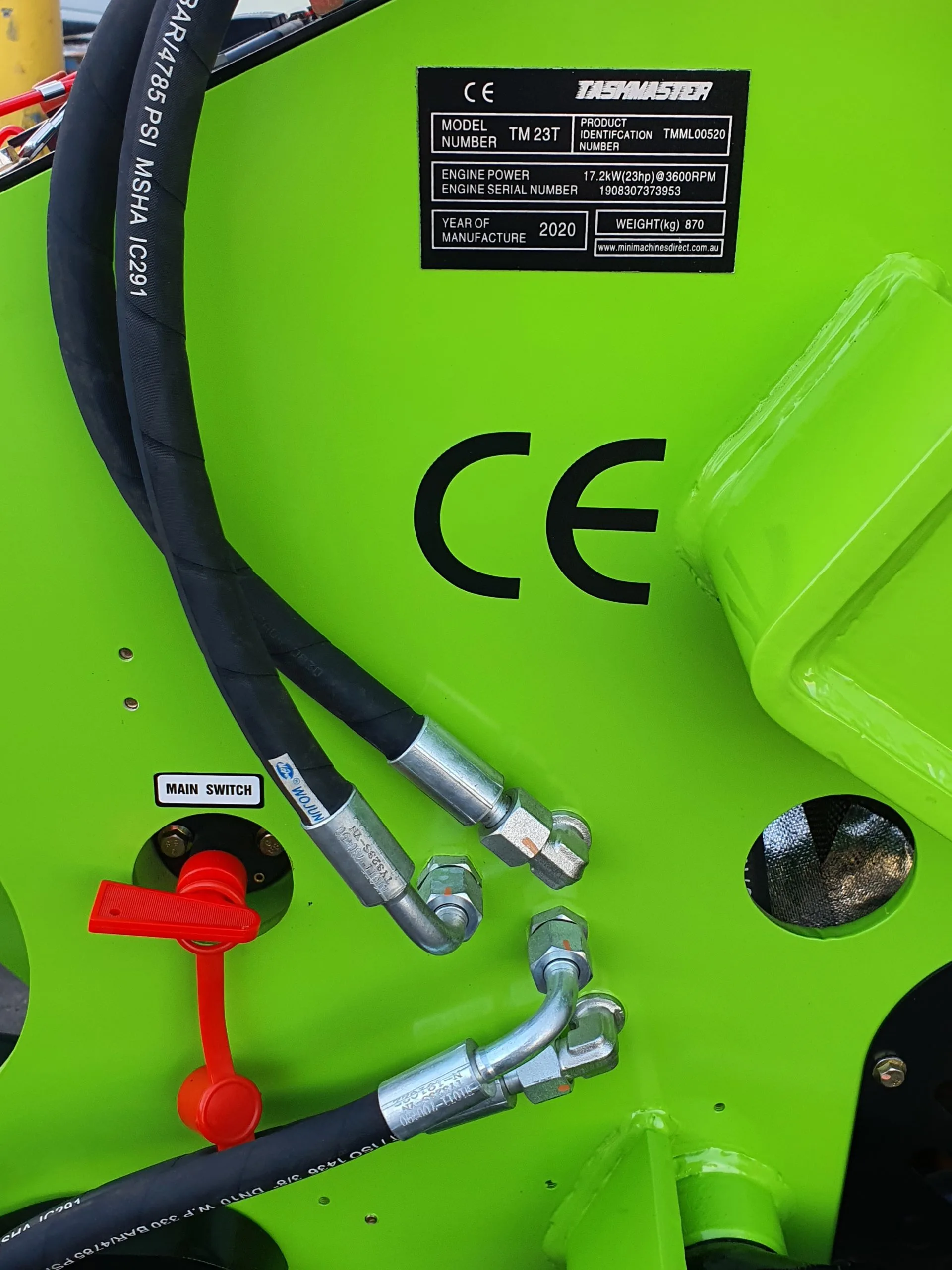

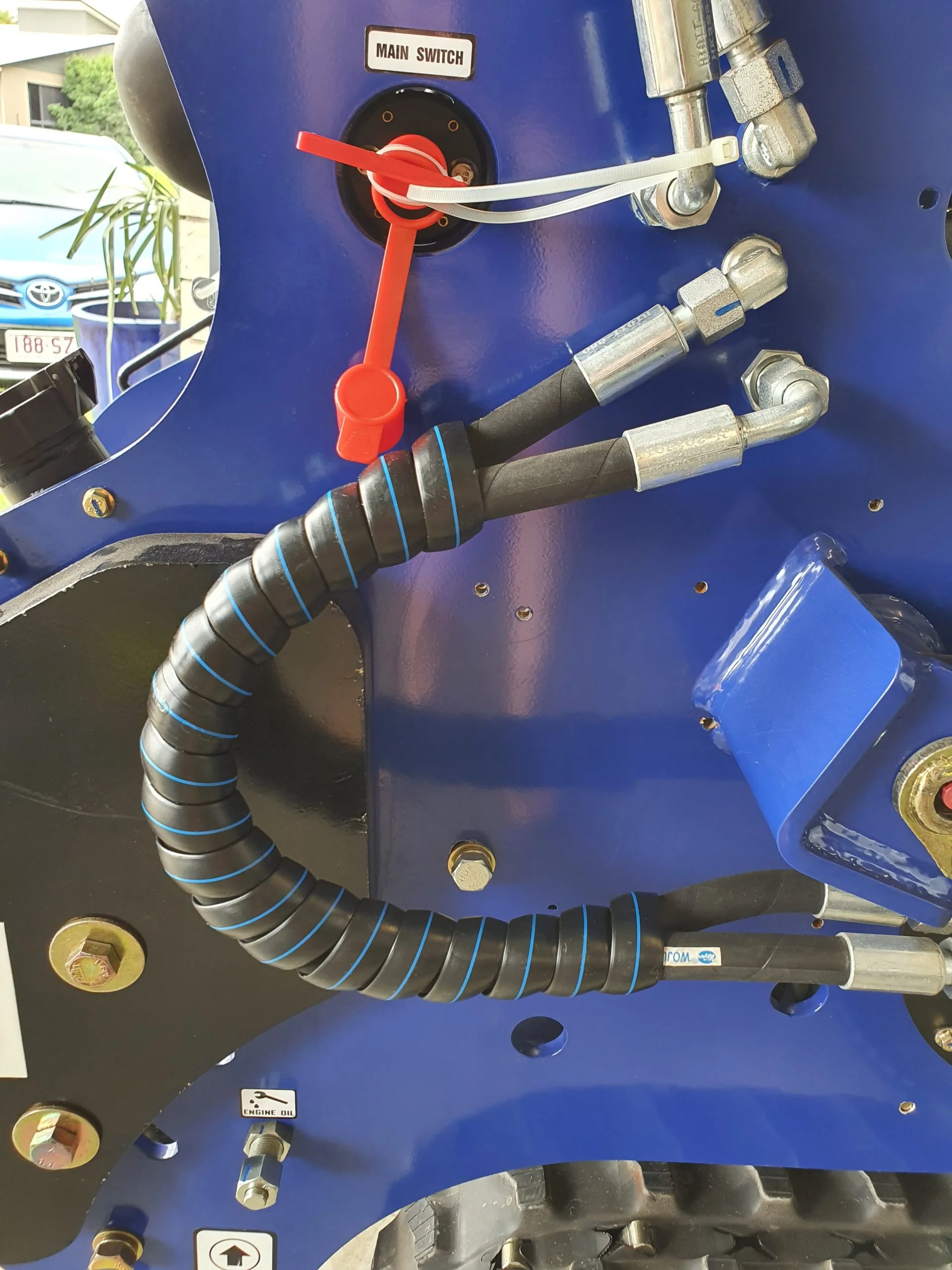

  • Battery Isolation Switch Prevents Battery Discharge
  • Italian 1/2 Inch Couplings
  • 4 Tie Down Locations for Transporting

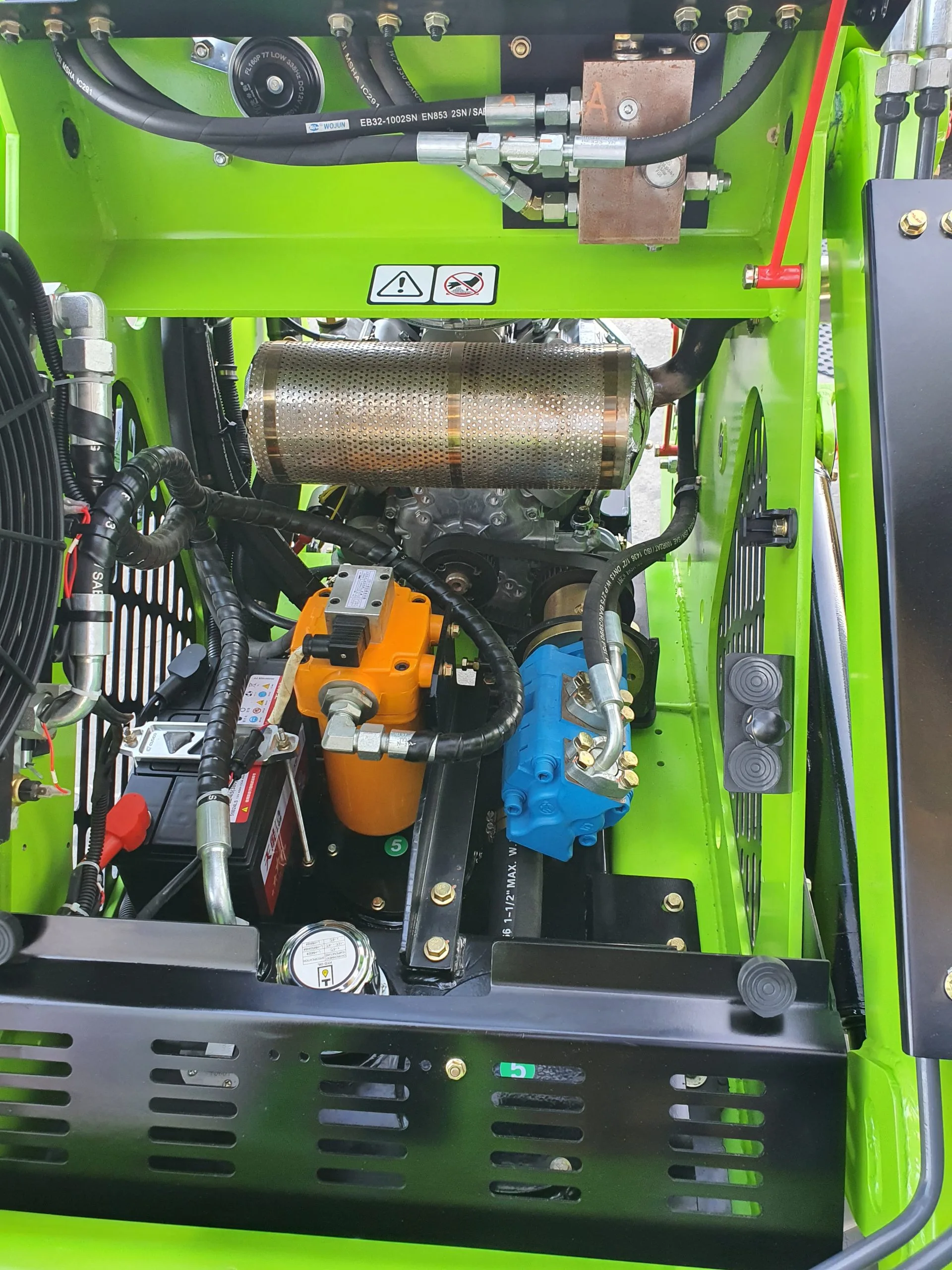

  • Super Easy Access to Components

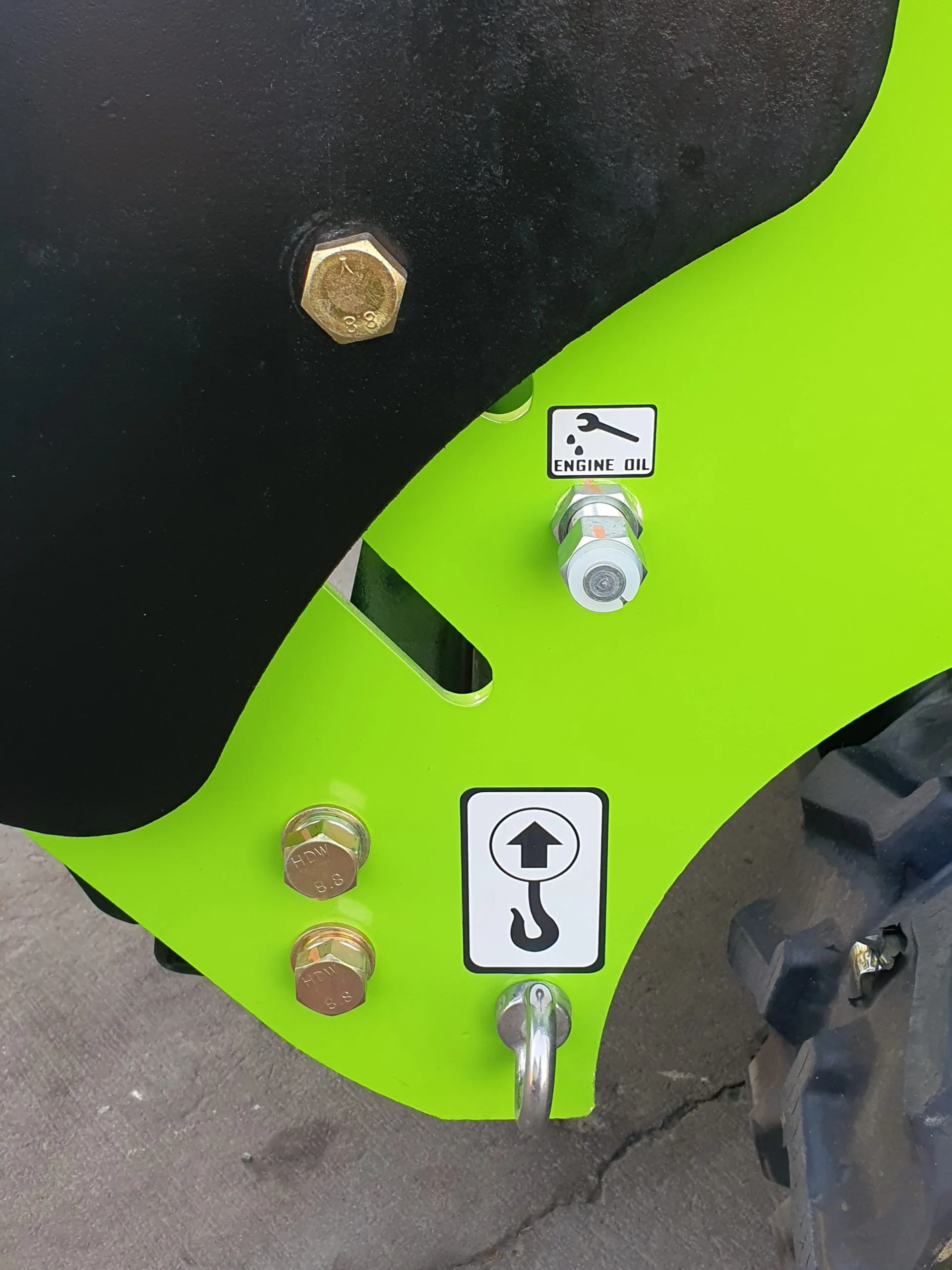

  • Remote Engine Oil Drain Hose

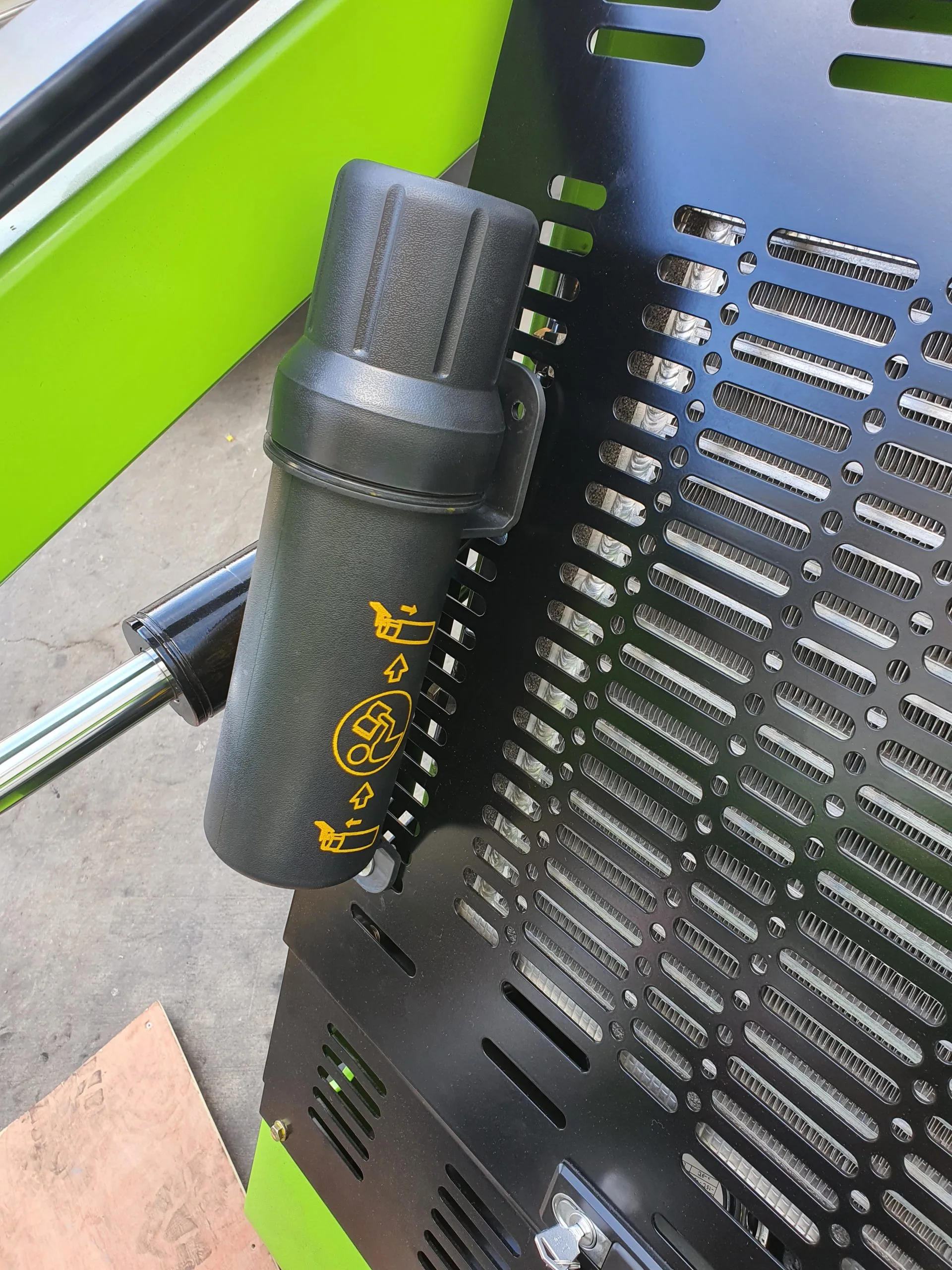

  • Service Manual Holder

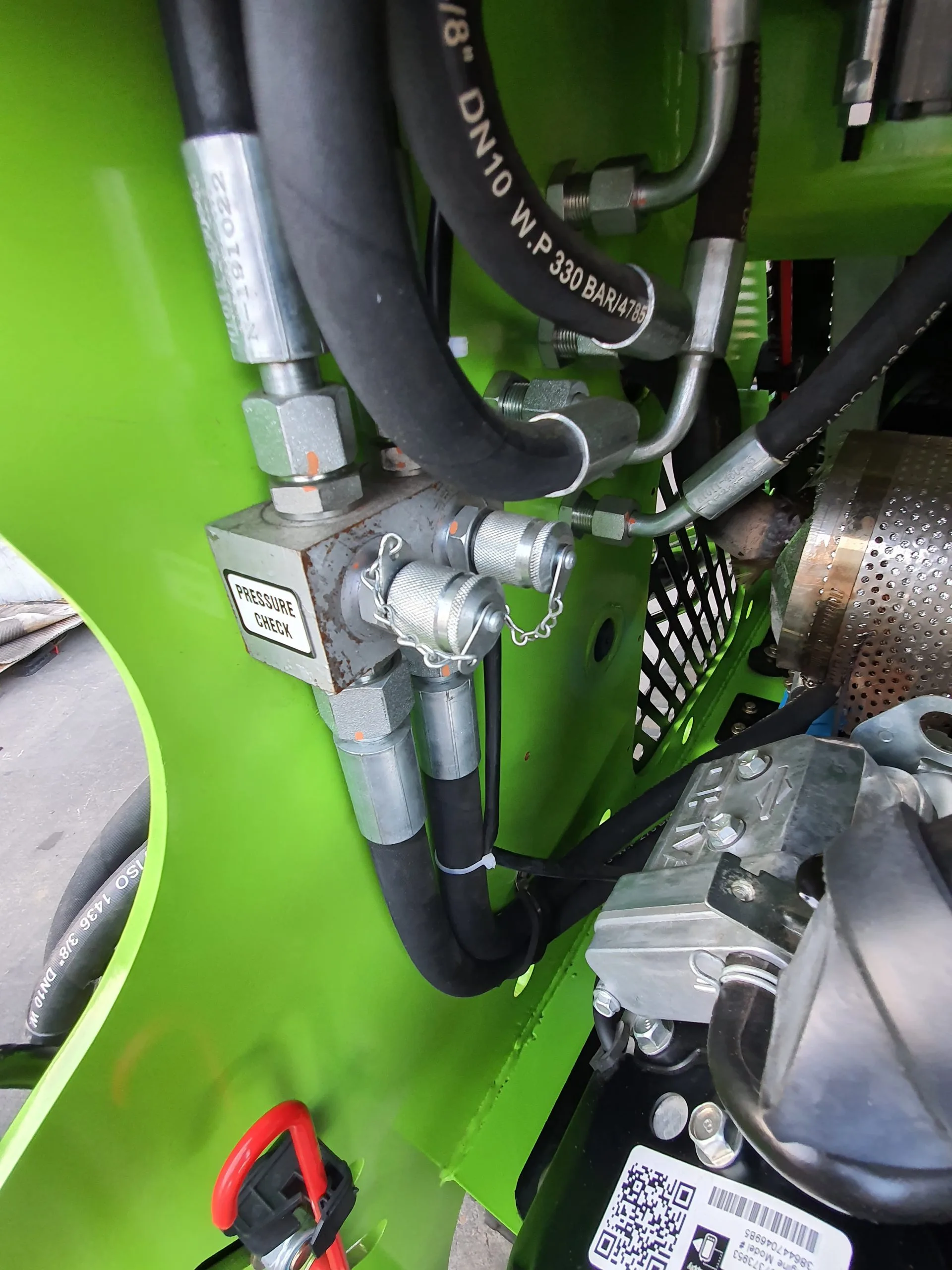

  • Diagnostic Test Pressure Points

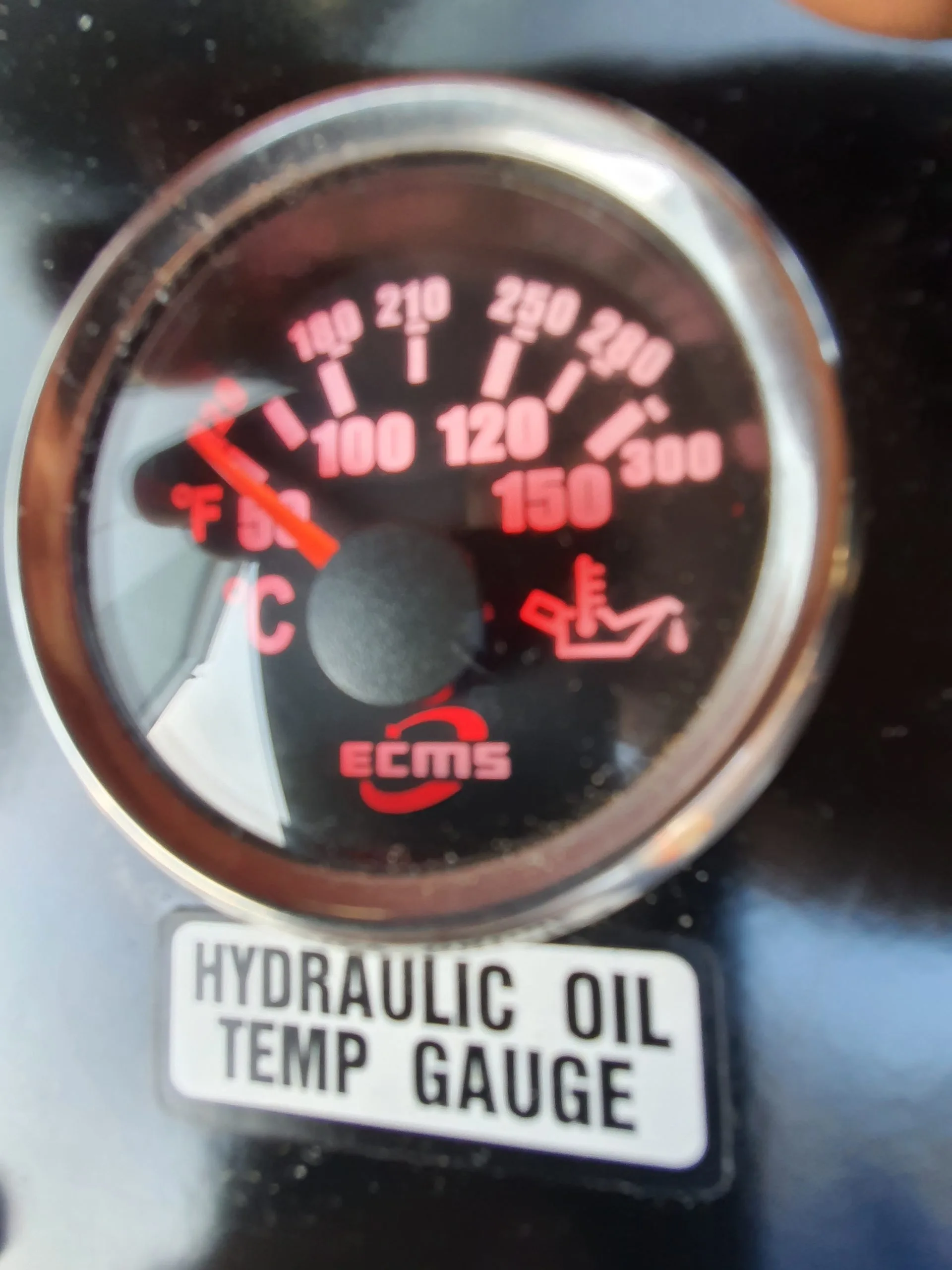

  • Hydraulic Oil Temp Gauge
  • Joystick Control
  • Lockable Bonnet and Fuel Caps
  • Craig Conducting a Factory Inspection

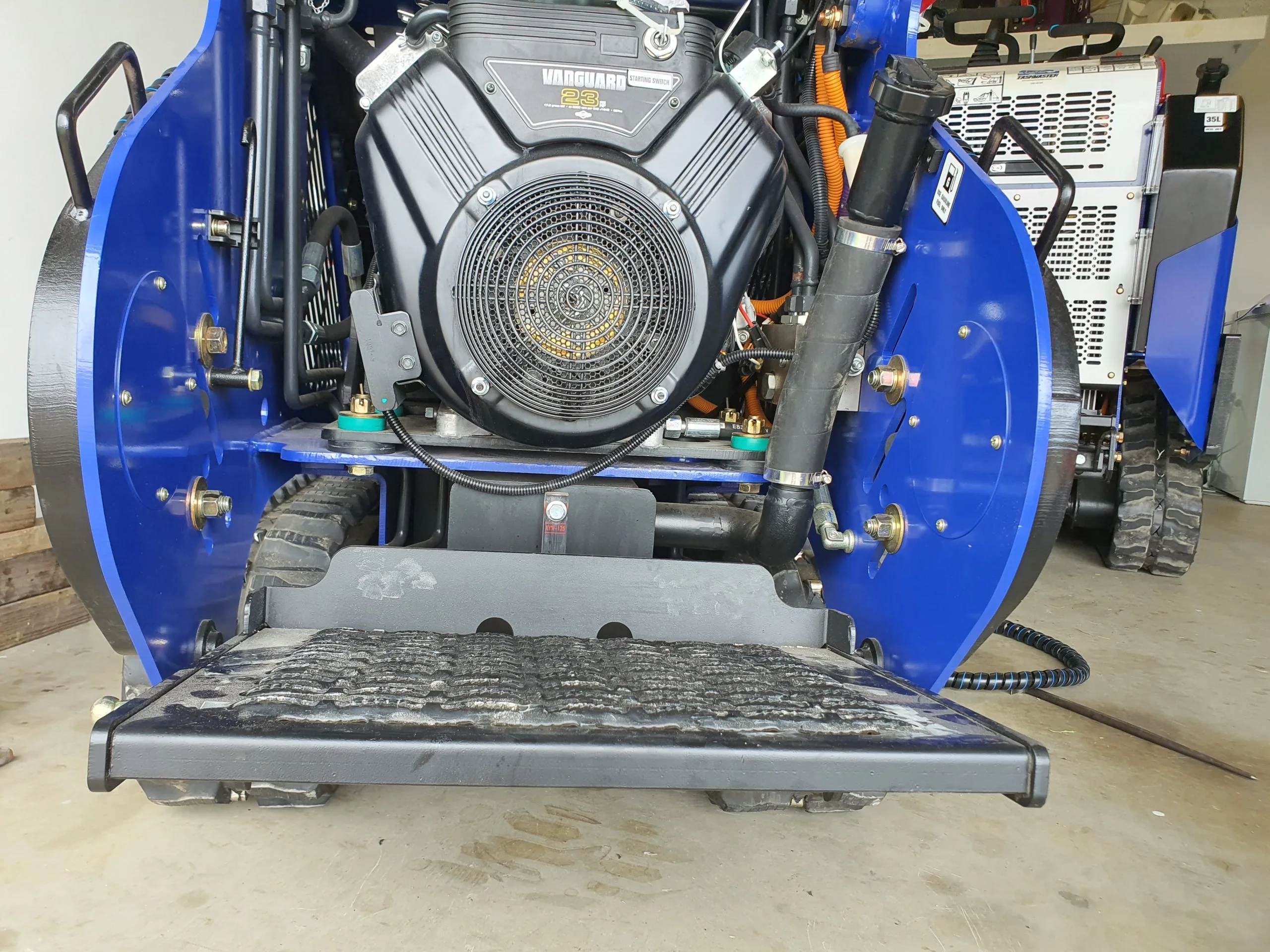

  • American B&S Engine – 3 year Warranty
  • Bronze Bushes for Bucket Arms
  • Crock Mesh Operators Platform – Reduces Dirt Build Up
  • Precision Plasma Cut Components
  • One ‘Taskmaster’ for a Range of Tasks
  • Left View
  • 4 in 1 Bucket – Doze, Dig, Dump, Carry, Clamp, Grab, Optional Teeth
  • Lift Arm Float Control – Spread Soil Easily by Back Blading
  • Joystick Steering Control – Manual (pilot operated optional)
  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Engine and Hydraulic Oil
  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check

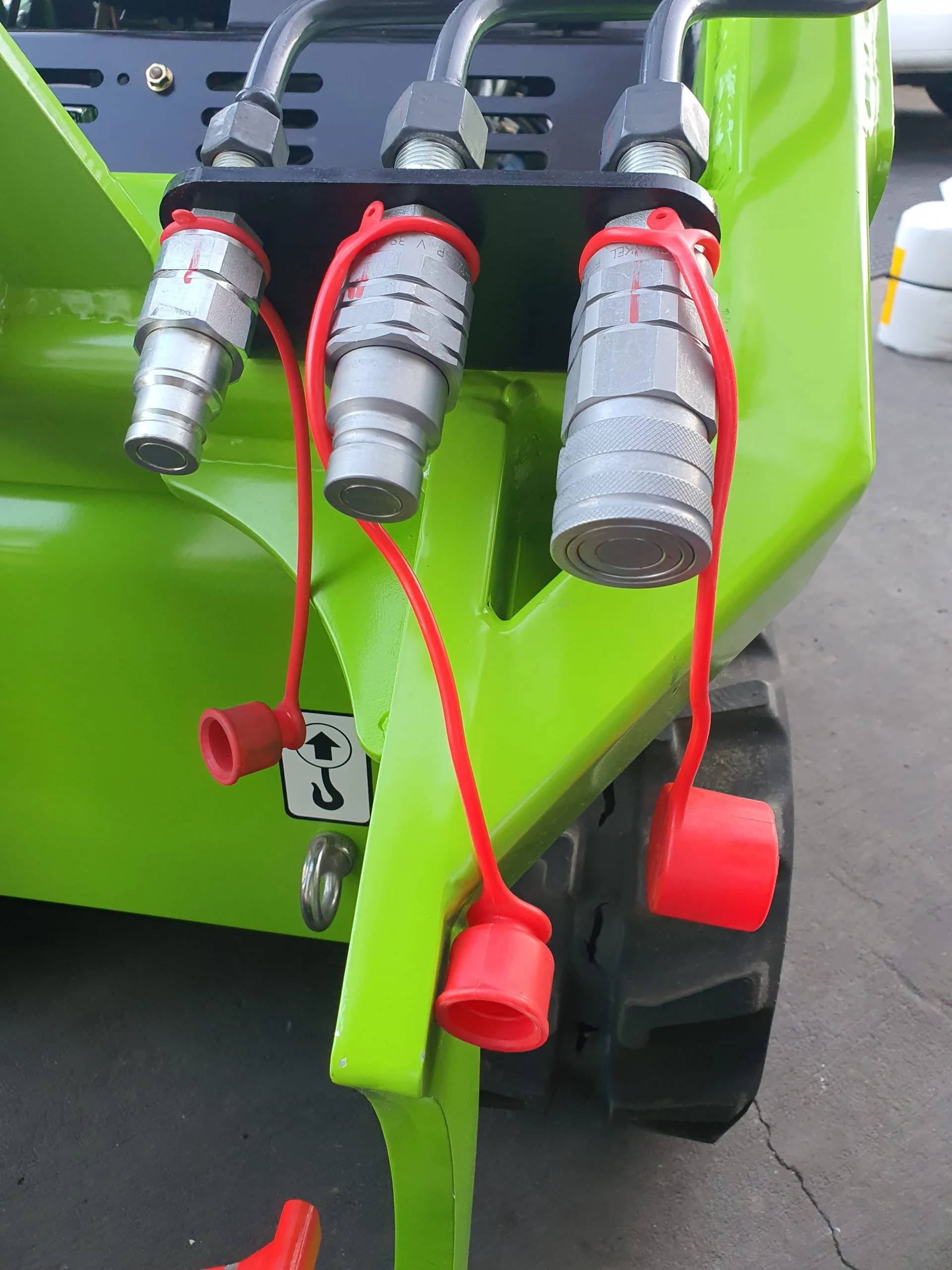

  • Auxiliary Hydraulic Outputs – Operate Many Work Tools
  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish
  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power
  • Muffler Insulation – Reduces Under Bonnet Temperature

  • 4 Drive Motors – No Chains to Adjust, Faster Travel, and Tighter Turning Due to Shorter Wheelbase
  • Standard Attachment Mounting Plate – Fits Most Common Attachments
  • Operator Platform Suspension – Provides Great Visibility and Operator Comfort
  • Counterweights – Added Lift Capacity
  • Gauges and Warning Lights – Machine Protection
  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life
  • Tie Down Locations – Safe Security for Transporting
  • Lift Hook Locations – Safe Lifting of Machine
  • Key Locks on Access Panels and Fuel Caps – For Security
  • Service Kit and Tools – Maintenance items
  • Emergency Stop Switch – Operator safety
  • Operators Manual – Water Proof Holder for Safety and Protection
  • Reverse Stop Panel – Operator Safety
  • LED Lights – Day and Night Vision

SPECIFICATIONS:

DIMENSIONS:

ENGINE
Engine MakeBriggs and Stratton Vanguard ‘V’ Twin (USA)
Fuel TypePetrol
Rated Power23 hp (17.1 kw)
Electrical12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump BrandPermco (USA)

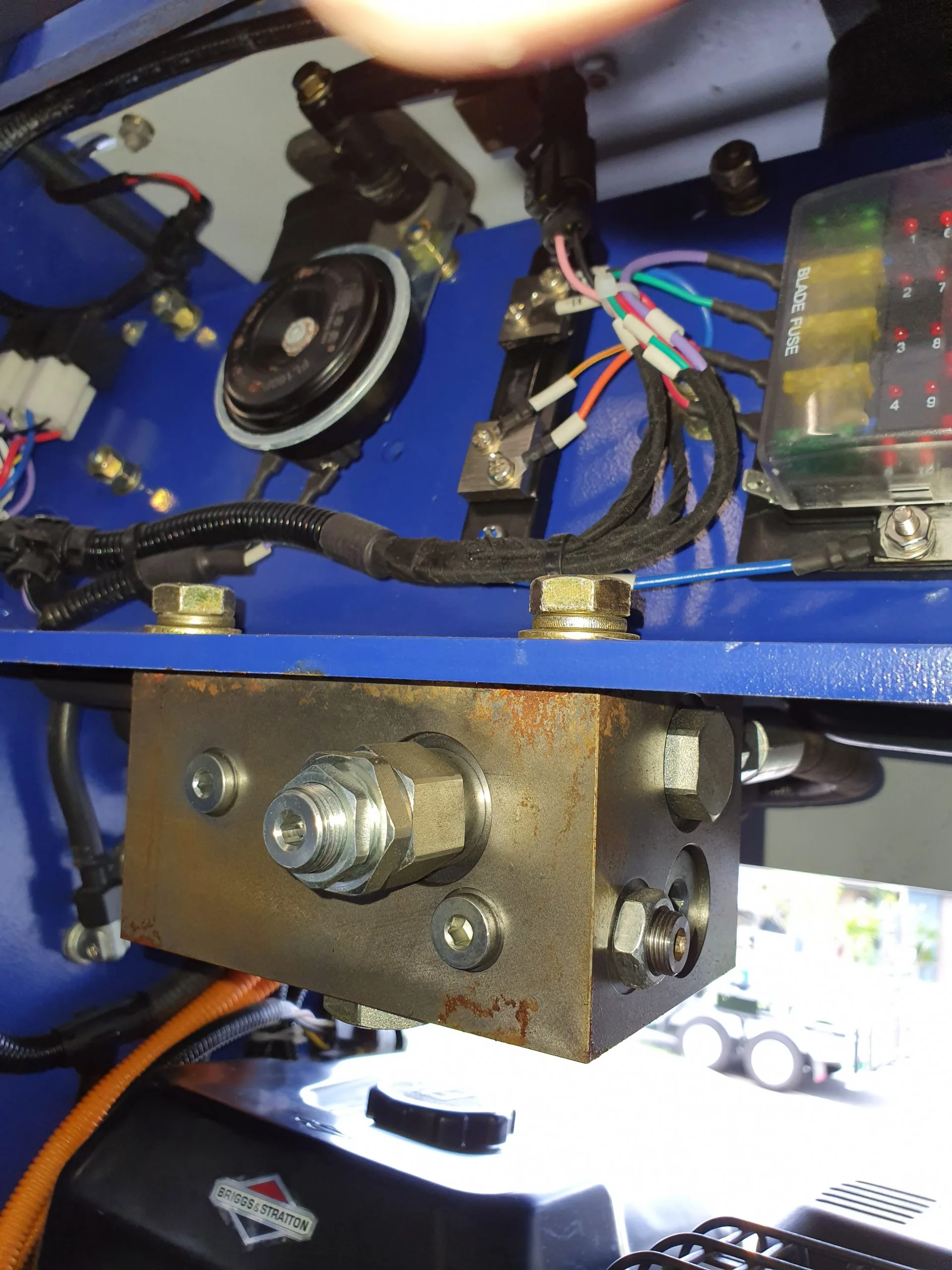

Valve BrandHydro Control Joystick (Italian)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
CoolerAlloy Radiator
DRIVING SYSTEM
Motor BrandDanfoss (Danish)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
Speed6 Km/h
AUX CIRCUIT
Valve BrandTrinity Flat Faced Couplers (Italian)
Pressure2610 PSI (180 Bar)
Flow58 L/Min
FLUID CAPACITIES
Fuel 23 L Diesel
Hydraulic Oil30 L
Engine Oil1.5 L
Coolant
RATED LOAD
50% of Tip Capacity300 kg (Optional Counter Weight 600 kg)
35% of Tip Capacity220 kg (Optional Counter Weight 420 kg)

DIMENTIONS
Height to Bucket Hinge Pin1914 mm
Width1150 mm
Weight800 kg
Height Max2452 mm
Height Min 1370 mm
Length with Bucket 2170 mm
Length without Bucket1740 mm
Wheelbase657 mm
Ground Clearance140 mm
Angle of Departure26 deg

Custom Options

  • Different Tire options available depending on the work site. General Purpose, Mud, Narrow, Turf, Solid.
  • Attachments – Massive Range Ask Us !!
  • Custom Colour.
  • Ready to go Machine / Trailer / Work Tool Packages
  • Counter Weights – For Extra Capacity
  • Joystick Pilot Operated Control
