AUSSIE MADE

Wheel Drive – 75hp Kubota Diesel Engine TM75WR

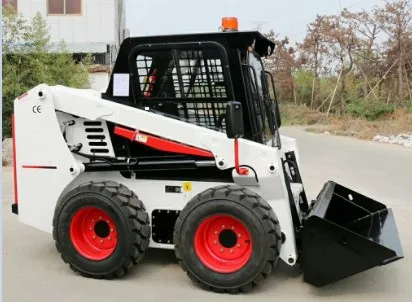

Luxurious, Medium Size Skid Steer

POA including GST
Includes 4/1 Bucket !!
* RRP above includes GST Contact us for latest pricing *

STANDARD FEATURES

  • Kubota Engine (Other Brands Optional)
  • High Flow – Operate Larger Attachments That Require High Speed/Torque
  • 2 Speed Travel – Get around the Job site more efficiently
  • Air Conditioning – Operator Comfort
  • 4 in 1 Bucket – Doze, Dig, Carry, Clamp, Grab, Optional Teeth

  • Joystick Steering Control – Soft Touch for Less Operator Fatigue
  • Lift Arm Float Control – Spread Soil Easily by Back Blading
  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Diesel Engine and Hydraulic Oil
  • 3 Hydraulic Pump System – For Efficient Separation of Power to Attachments, Bucket Controls, and Wheels
  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check
  • Auxiliary Hydraulic Outputs – Operate Many Work Tools
  • Quick Coupling Fittings – Italian Made Illuminates Dirt Entry and Leakage
  • LED Lights – Day and Night Vision
  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers, Dumping Over A Wall, or Loading Flat Bed Trucks
  • CNC Manufacturing and Electrophoresis Paint Process – For Rust Protection and an Excellent Finish
  • Japanese NSK Bearings and Grade 100H Chains – For Longer Life
  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)
  • Muffler Insulation – Reduces Under Bonnet Temperature
  • Hydrostatic Drive Train System – Benefits of Hydraulic Power
  • Rear View Mirrors – Increased Operator Vision
  • Standard Attachment Mounting Plate – Fits Most Common Attachments
  • High Quality Operator Station – Provides Great Visibility, Roof Window, Sound Insulation, and Great Operator Comfort
  • Gauges and Warning Lights – Machine Protection

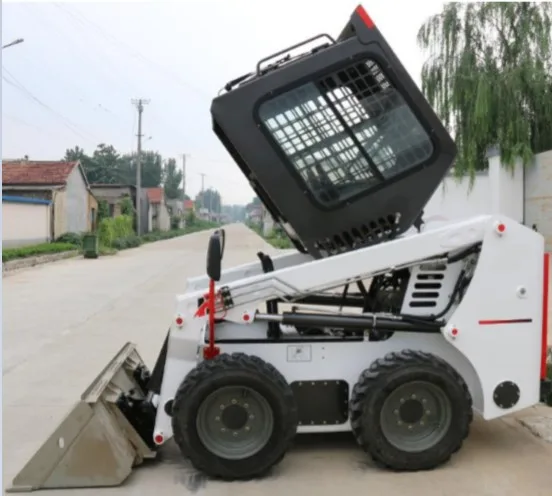

  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing
  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life

  • Tie Down Locations – Safe Security for Transporting
  • Key Locks on Access Panels and Fuel Caps – For Security
  • Emergency Stop Switch – Operator safety
  • Lift Arm Safety Support – Operator Safety
  • Lock Out Switch – Locks The Pilot Oil Control System For Operator Safety

  • Brake System – Operator Safety
  • Service Kit and Tools – Maintenance items
  • Great Quality Tires 10 x 16.5 – Better ground Clearance (Optional Tread Patterns)
  • Operators Manual – Safety and Protection

SPECIFICATIONS:

ENGINE
Engine Make Kubota (Japan)
Fuel Type Diesel
Rated Power 75 hp (55 kw)
Electrical 12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump Brand Danfoss Sauer (Danish)
Type Tandem Axial Piston
Valve Brand Hydro Control Joystick (Italian)
Cooler Alloy Radiator
DRIVING SYSTEM
Motor Brand Danfoss Sauer (Danish)
Type Tandem Radial Piston
Speed Low Speed 11.6 Km/h / High Speed 22.6 km
AUX CIRCUIT
Valve Brand Trinity Flat Faced Couplers (Italian)
Pressure 3045 PSI (210 Bar)
Flow Standard 80 L/Min
Flow High 128 L/Min
FLUID CAPACITIES
Fuel Diesel
Hydraulic Oil
Engine Oil
Coolant
RATED LOAD
50% of Tip Capacity 1000 kg
35% of Tip Capacity 700 kg
Tip Capacity 2000 kg

DIMENSIONS:

DIMENTIONS
Height to Bucket Hinge Pin 3100 mm
Width 1850 mm
Shipping Weight ( No Bucket) kg
Operating Weight (Full Fuel, 80kg Operator, Bucket) 2960 kg
Height Max 4000 mm
Height Min 2028 mm
Length with Bucket 3523 mm
Length without Bucket 2733 mm
Wheelbase 1150 mm
Ground Clearance 215 mm
Angle of Departure 26 deg
