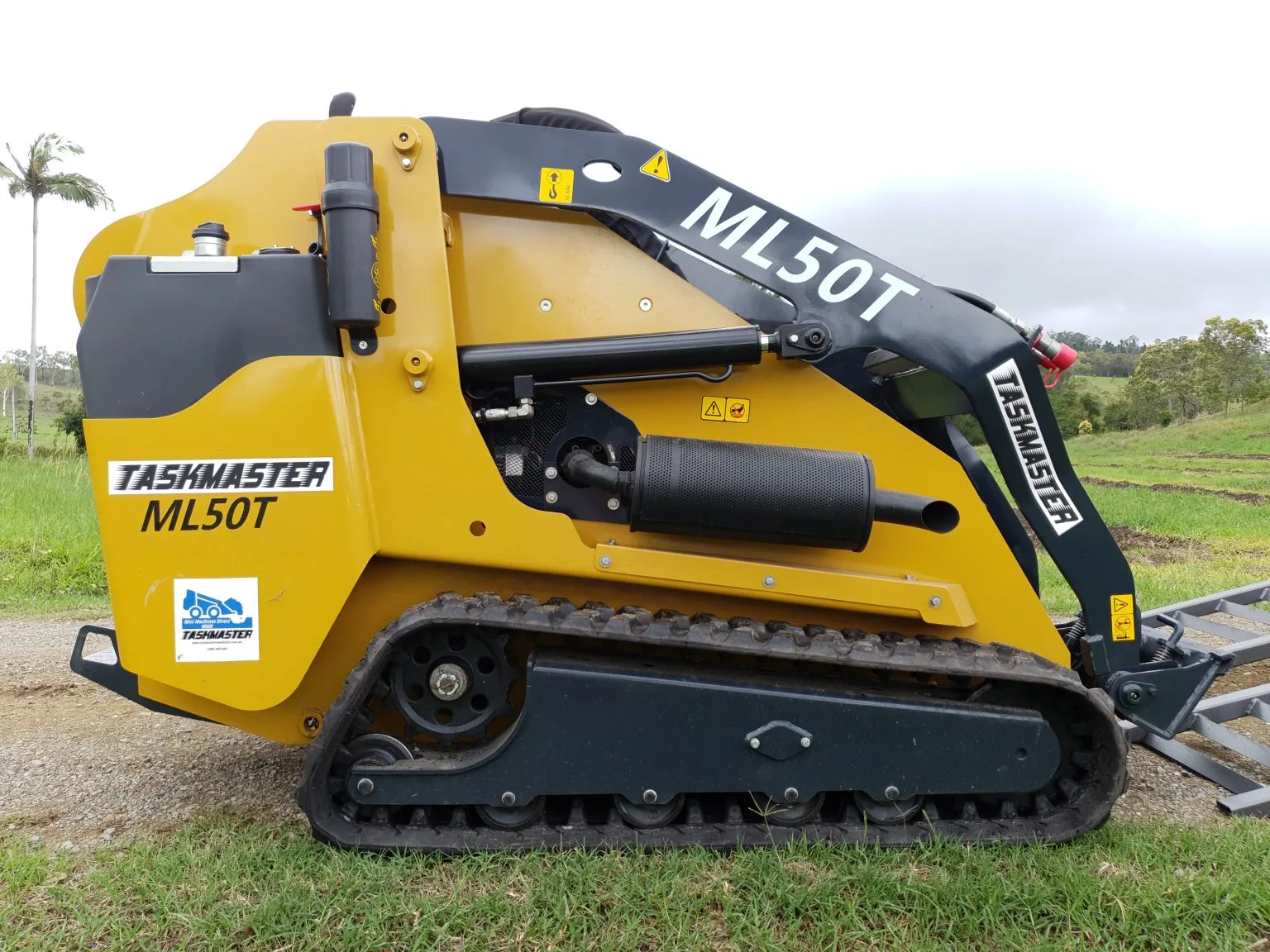

MINI LOADER – TRACK

Powerful Maxi Hi-Drive Tracked Machine

*Ask us about Optional Pilot / Servo Control System*

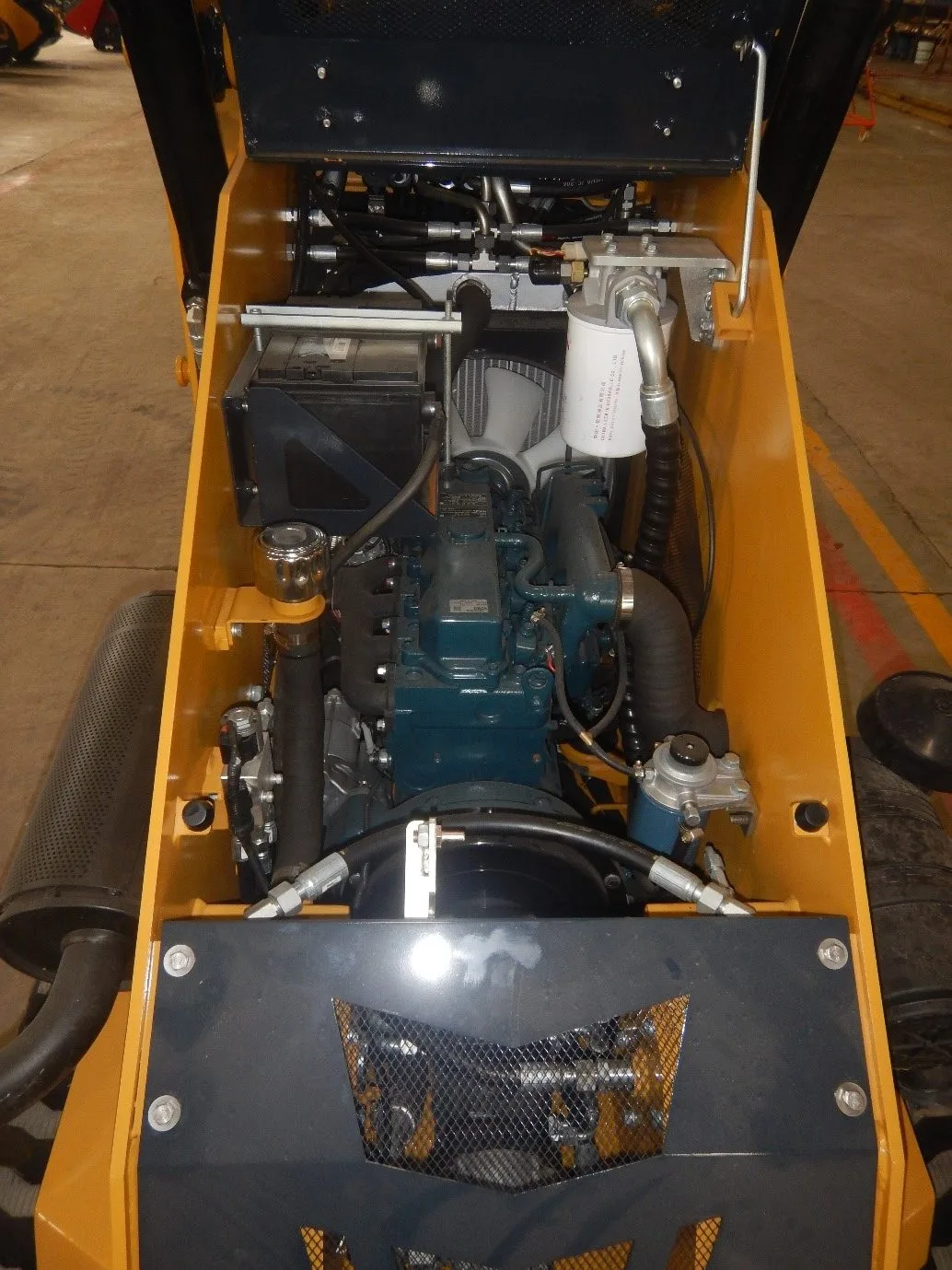

Track Drive – 50hp Kubota Diesel Engine ML50T

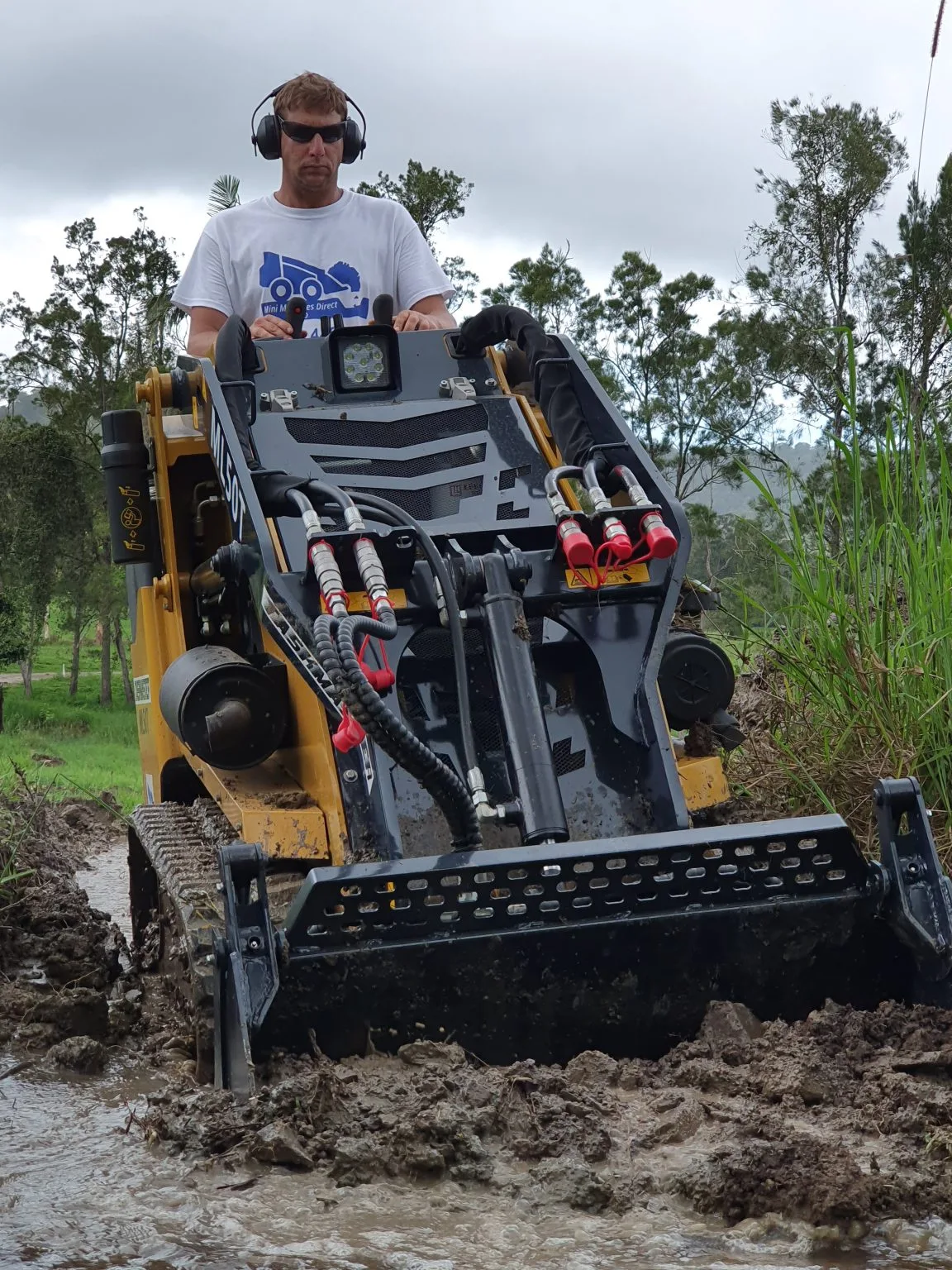

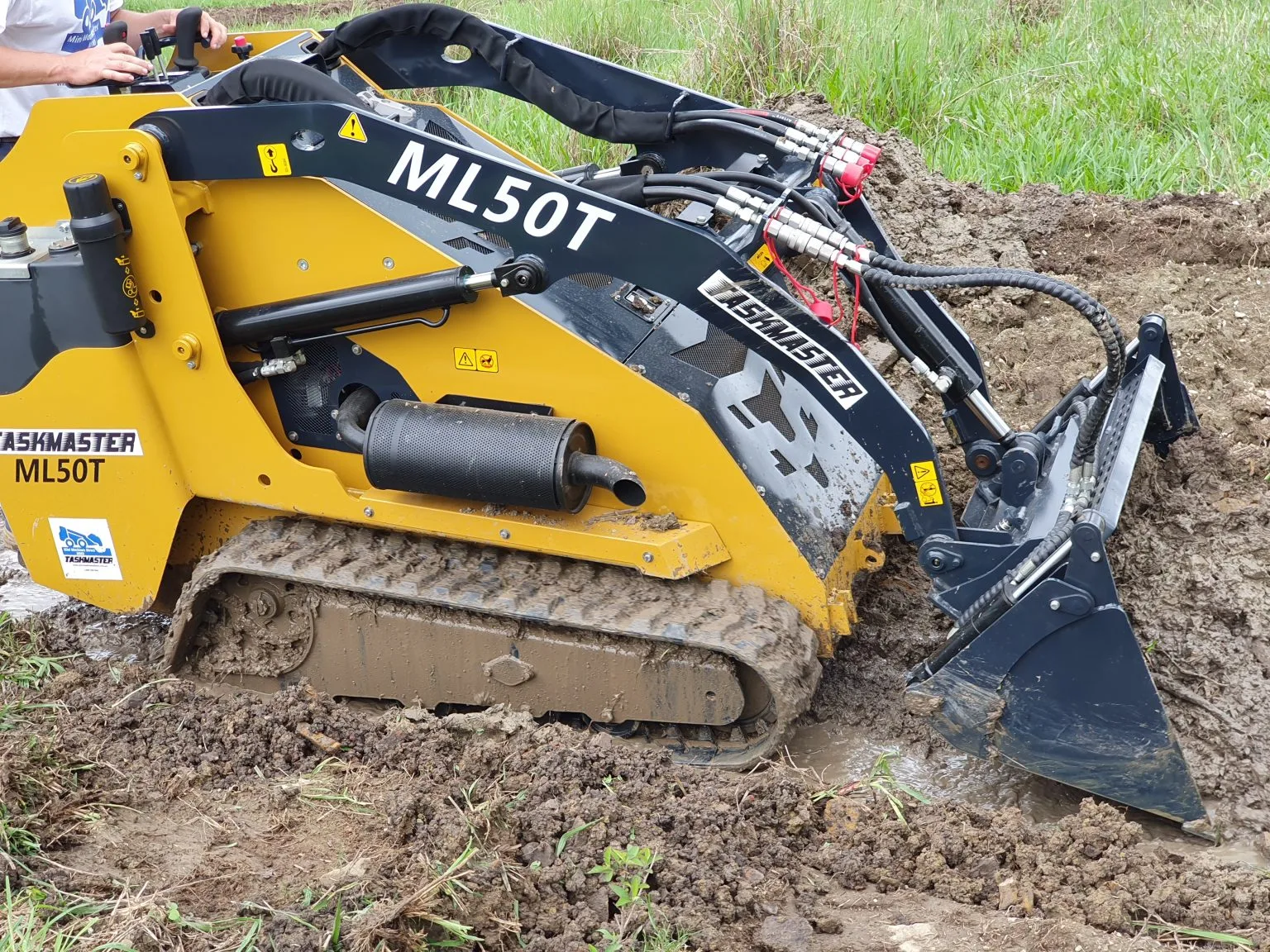

Powers Through Boggy Conditions

ML50T MINI LOADER | MINI MACHINES DIRECT

STANDARD FEATURES

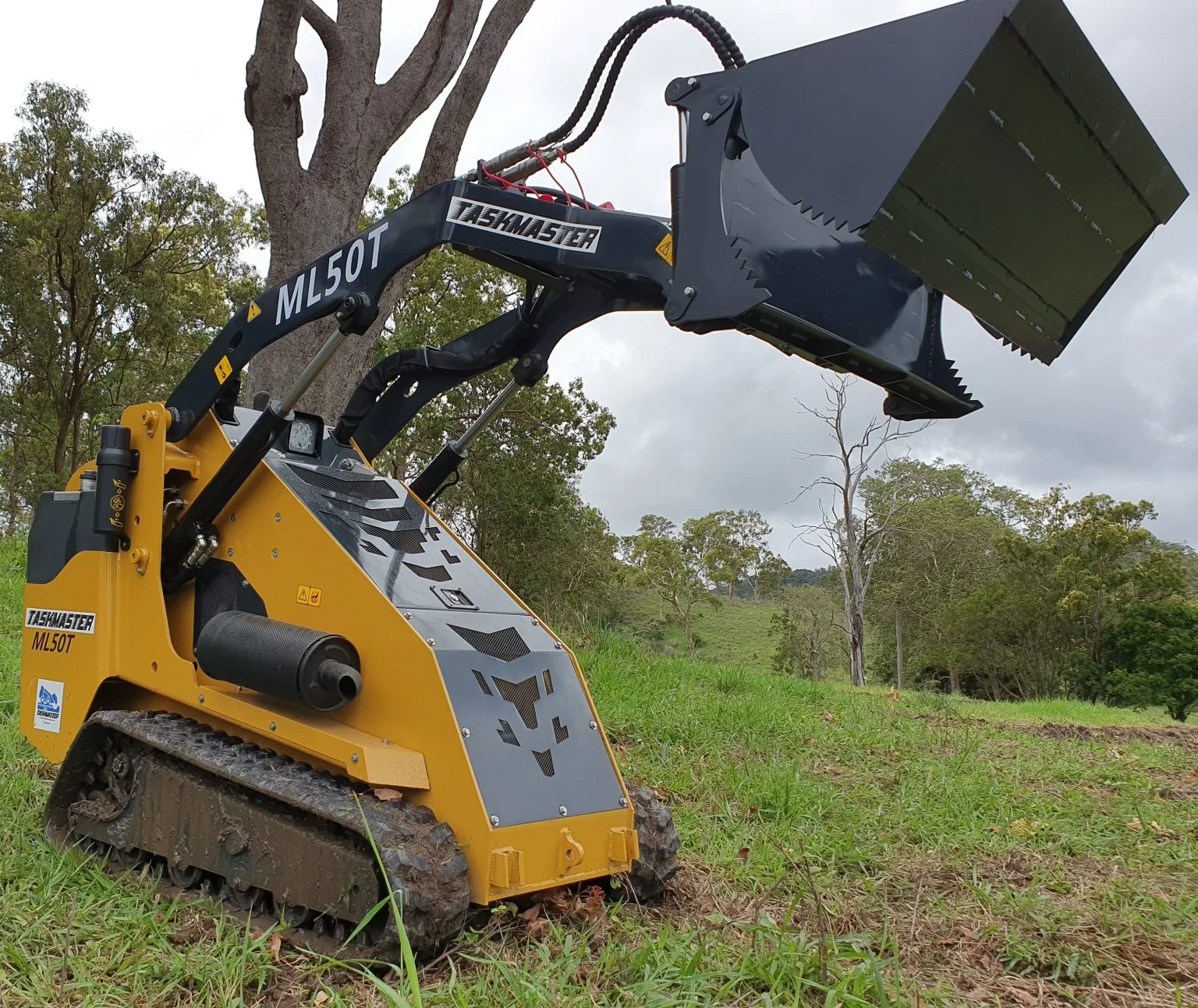

  • 4 in 1 Bucket – Doze, Dump, Carry, Clamp, Grab, Optional Teeth

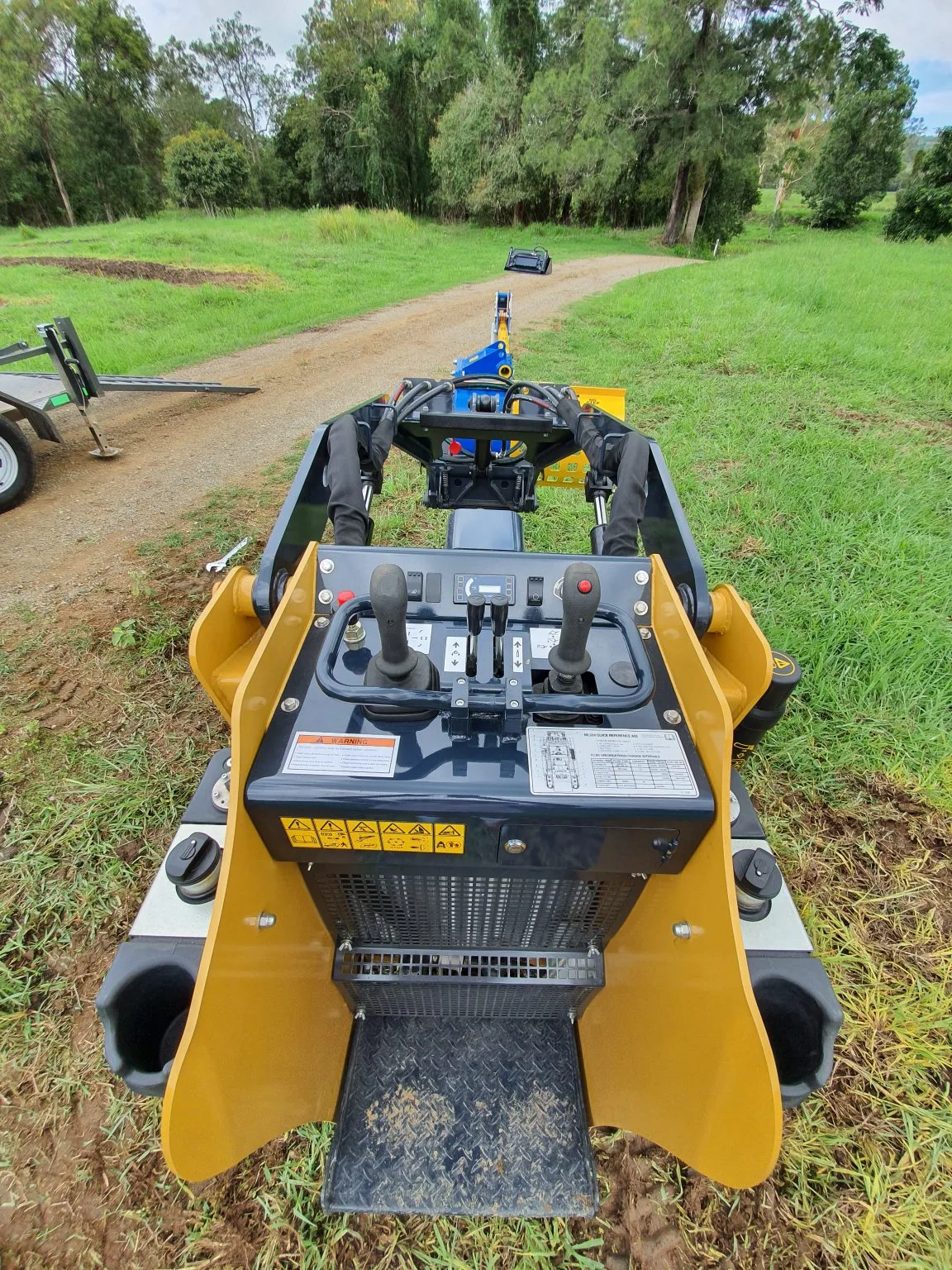

  • Joystick Steering Control – Soft Touch for Less Operator Fatigue

  • Lift Arm Float Control – Spread Soil Easily by Back Blading

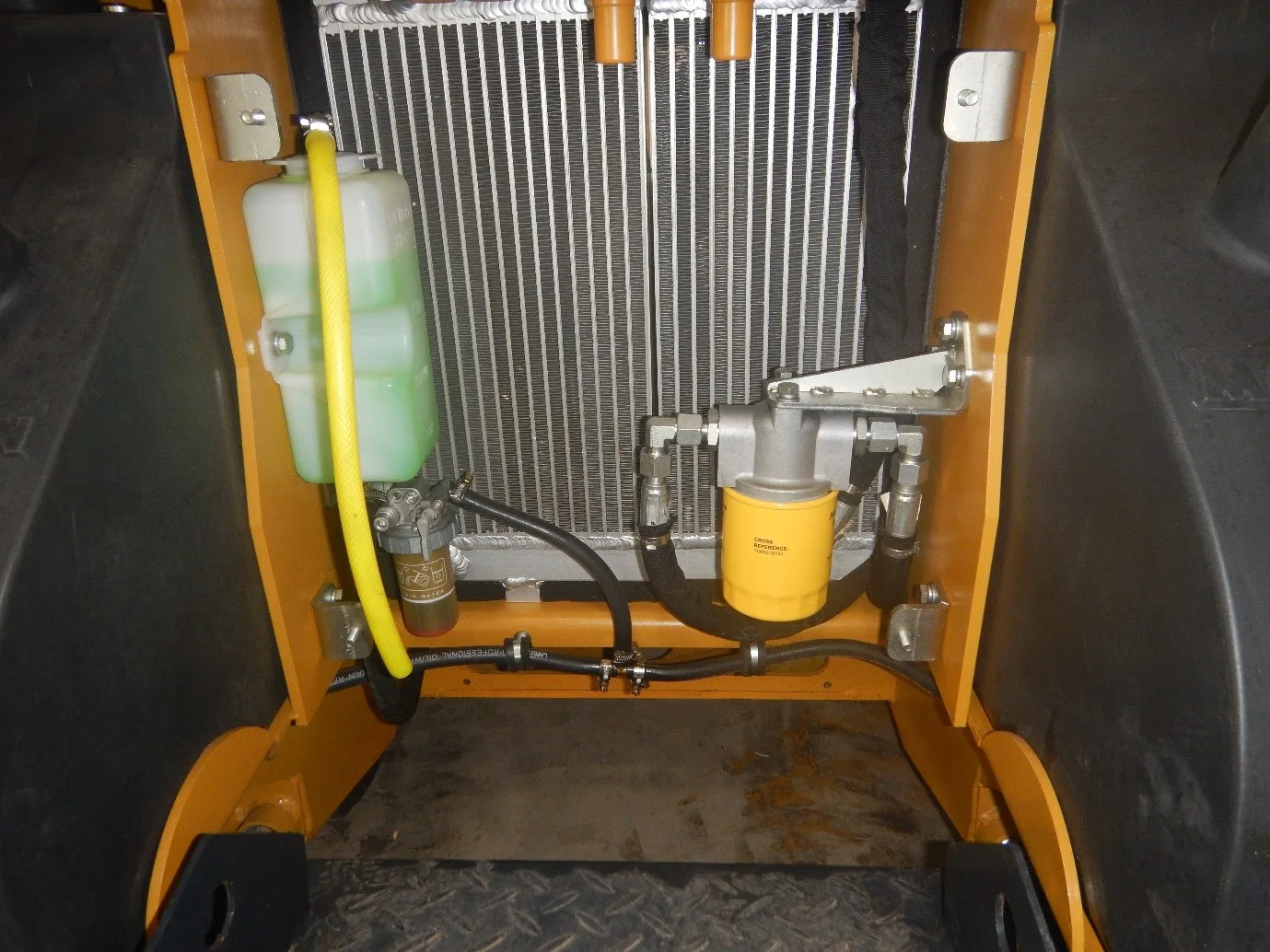

  • Large Alloy Radiator with Cooling Fan – Efficient Cooling of Engine and Hydraulic Oil

  • Pilot Lock Out Switch – Operator Safety

  • Park Brake Incorporated in Drive Motors – Operator Safety

  • The ‘Elevated Drive Sprocket’ (as seen on most caterpillar dozers) – Keeps the Drive Mechanism Further Out of the Dirt Reducing Wear – Allows the Drive System to Concentrate on Rotational Forces Without Having to Support the Weight of the Machine – Gives Much Smoother Ride for the Operator

  • 3 Hydraulic Pump System – For Efficient Separation of Power to Attachments, Bucket Controls, and Wheels

  • Hydraulic Oil Cooler – Keeps Oil Temperature In Check

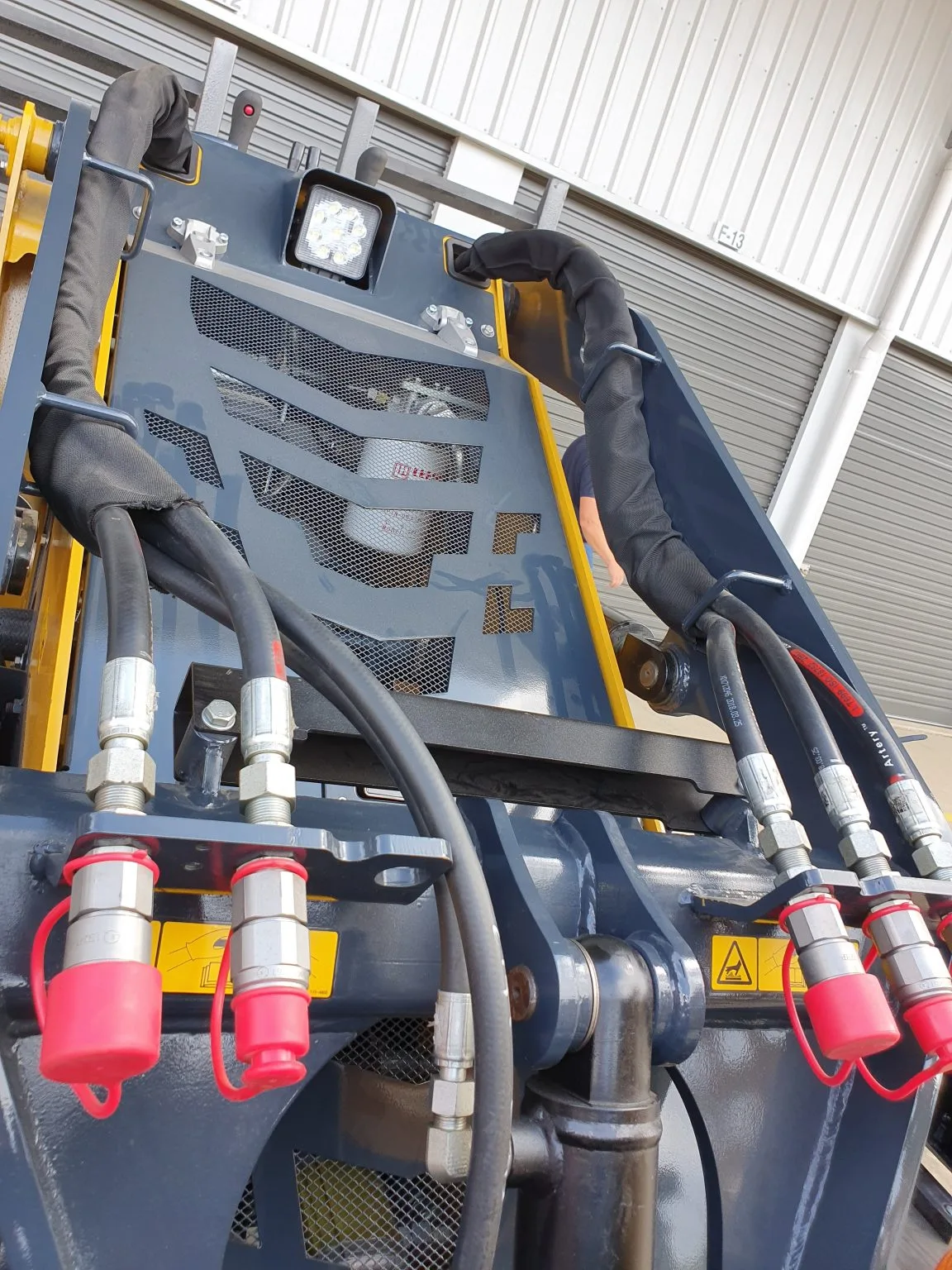

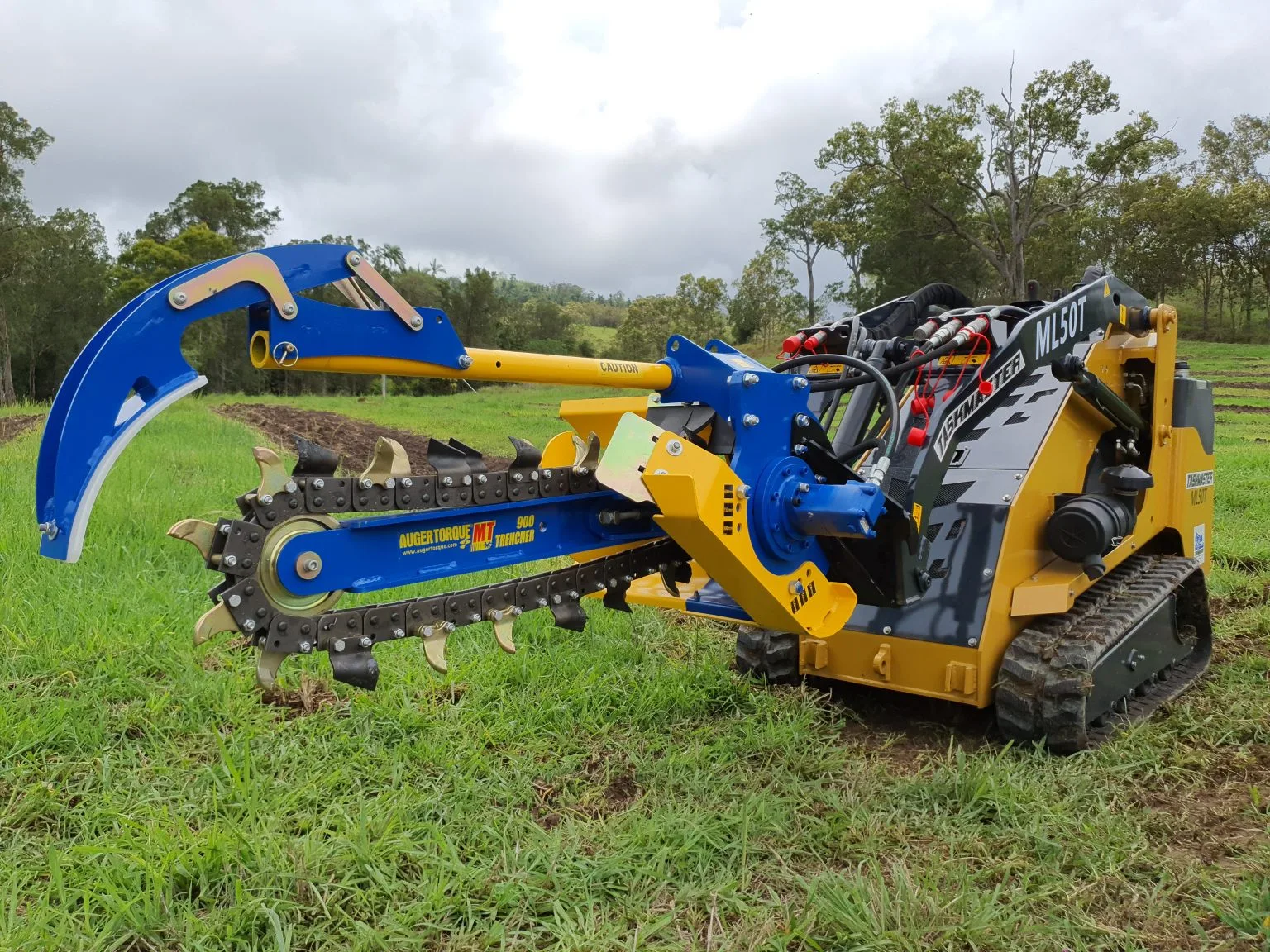

  • Auxiliary Hydraulic Outputs – Operate Many Work Tools

  • Hose Quick Coupler Fittings – Illuminates Dirt Entry and Leakage

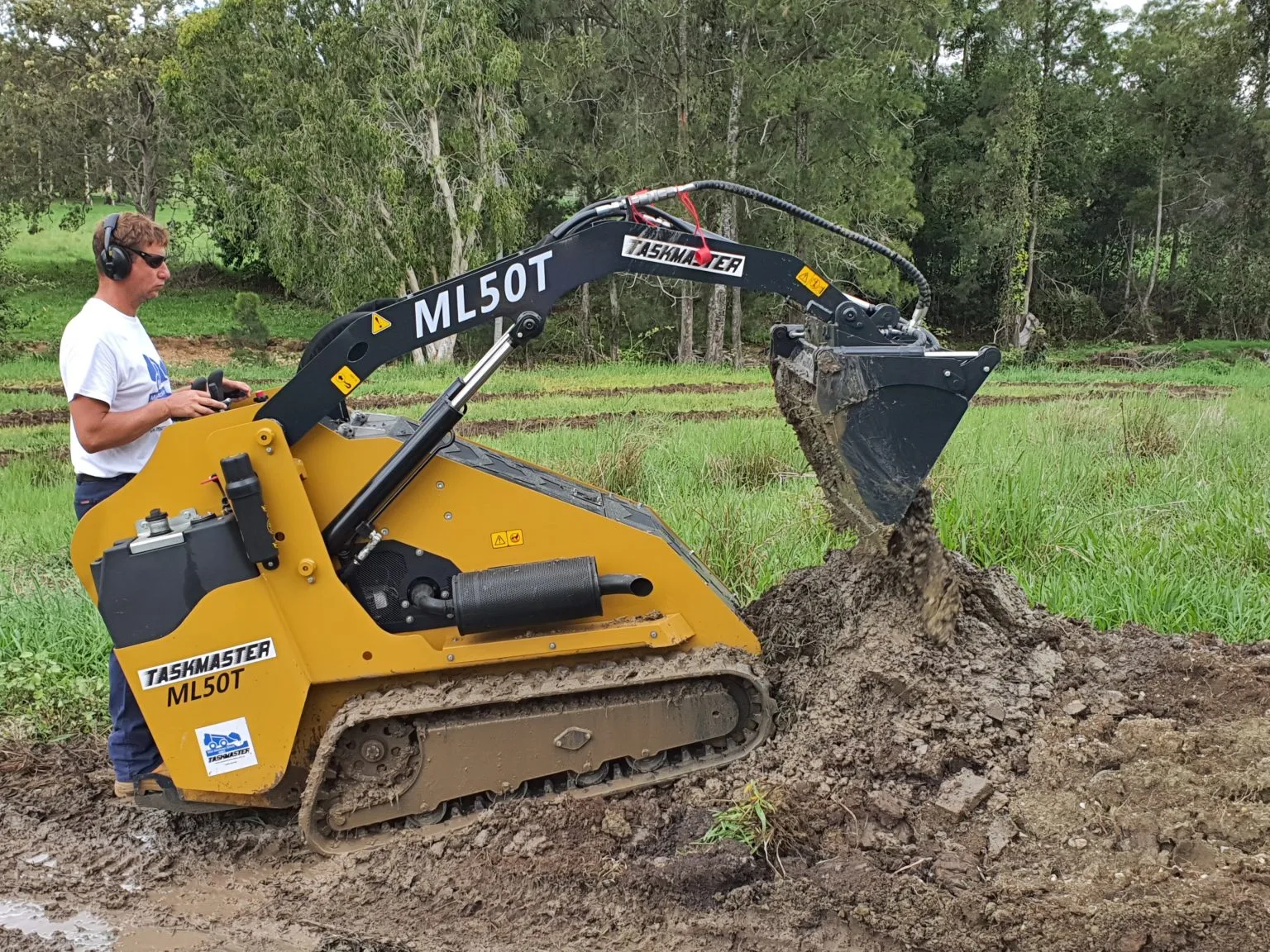

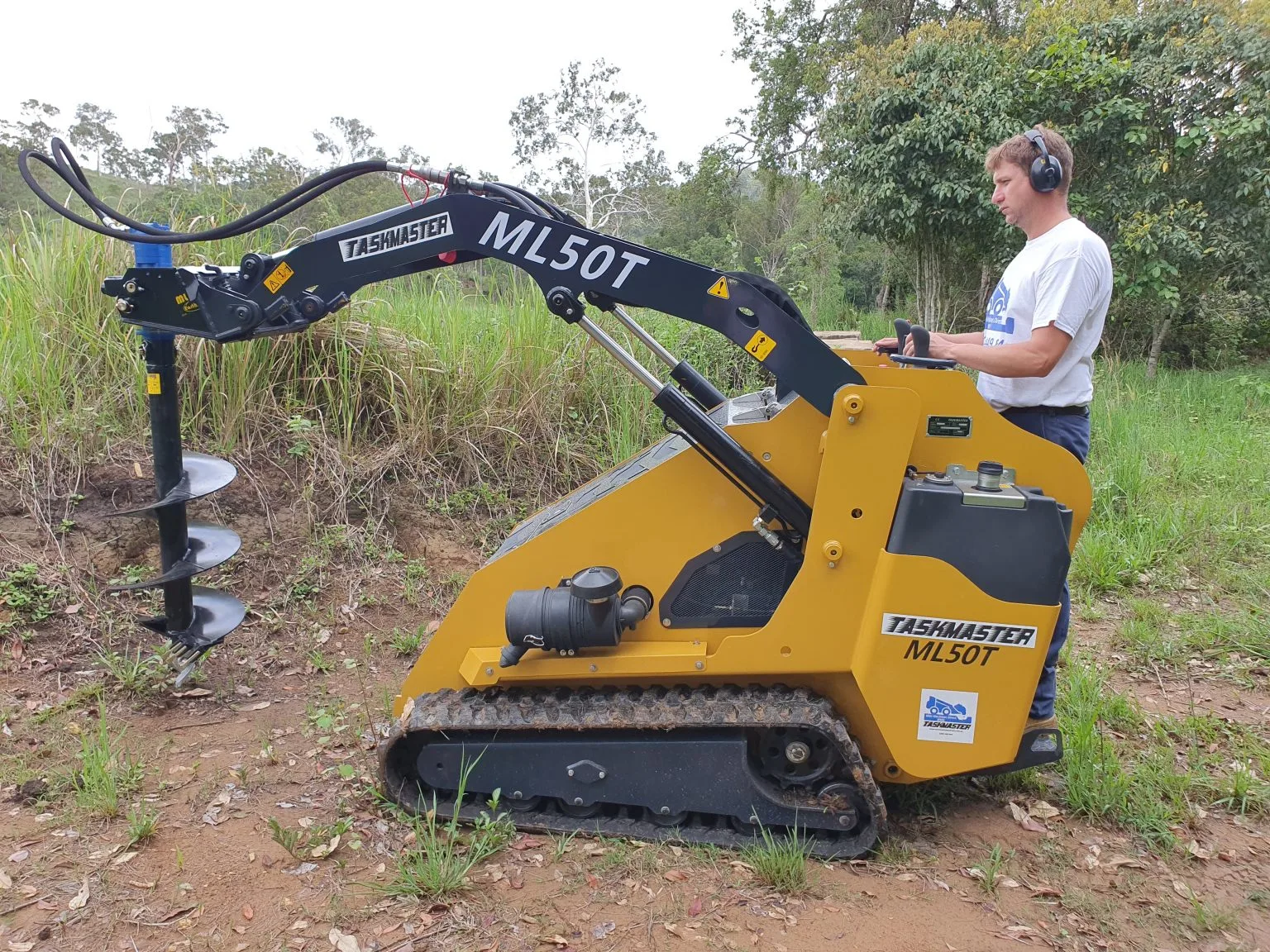

  • Curved Lift Arms to Facilitate a Radial Lift Pattern – Allows Attachments to Lift ‘Up’ and ‘Out’ Increasing Clearance to the Front of the Machine. Handy When Using Large Augers

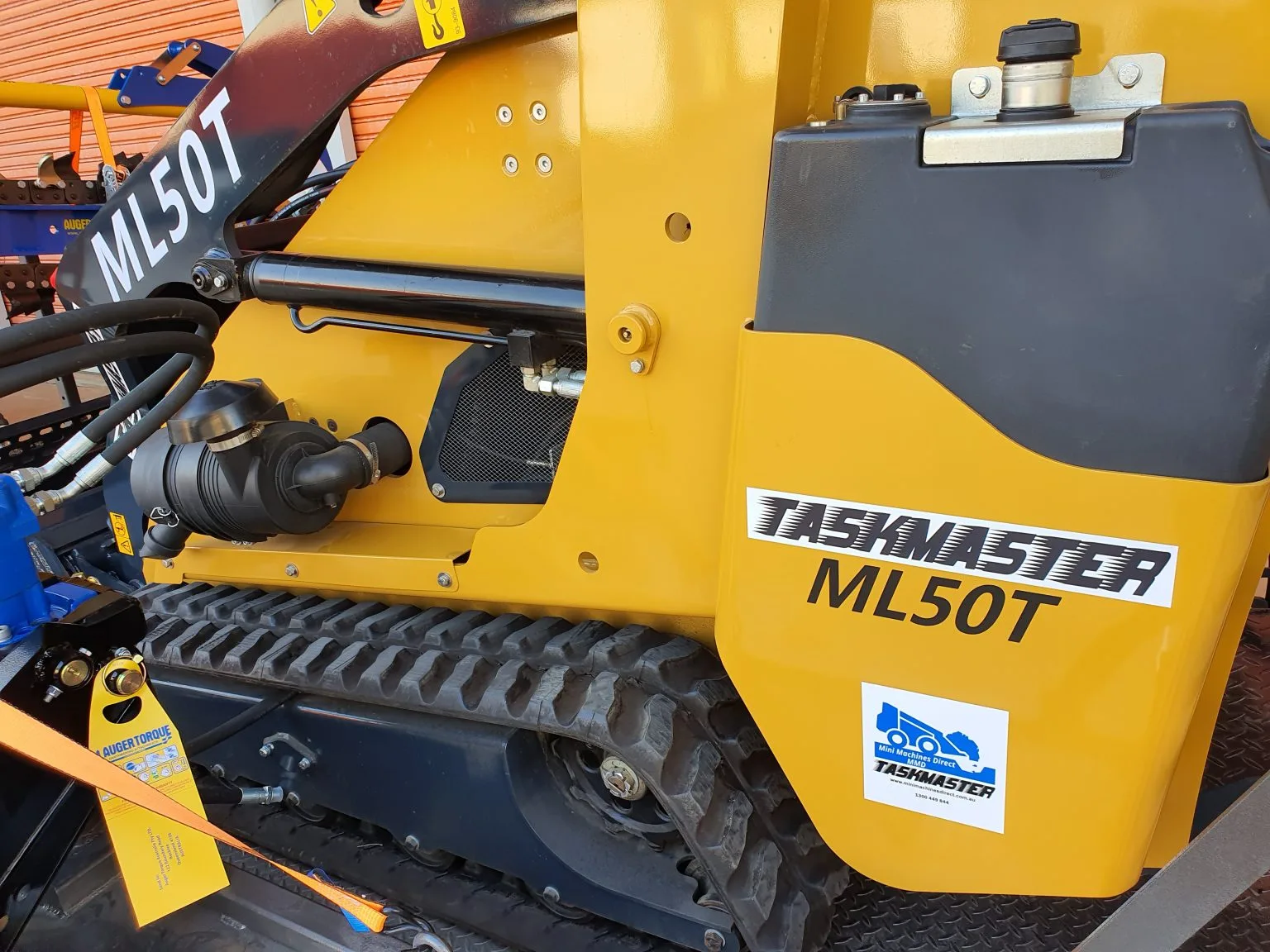

  • Large Donaldson Air Cleaner Primary/Secondary with Dust Venturi – Longer Service Intervals (Optional Clogging Indicator)

  • Hydrostatic Drive Train System – Benefits of Hydraulic Power

  • Muffler Insulation – Reduces Under Bonnet Temperature

  • Standard Attachment Mounting Plate – Fits Most Common Attachments

  • Operator Platform Suspension – Provides Great Visibility and Operator Comfort

  • Gauges and Warning Lights – Machine Protection

  • Track Drive with Grease Tensioner and Heavy Duty Re-coil Spring – More Traction and Lighter Foot Print

  • Engine Access Panel Hinged and Lockable – Allows Easy Access to All Major Components for Inspection and Servicing

  • Hose Protection Kevlar Sleeving – Burst Protection

  • Heat-Treated Pins and Greaseable Bronze Bushes – For Longer Life

  • Lift Hook Locations – Safe Lifting of Machine

  • Service Kit and Tools – Maintenance items

  • Lift Arm Safety Support – Operator Safety

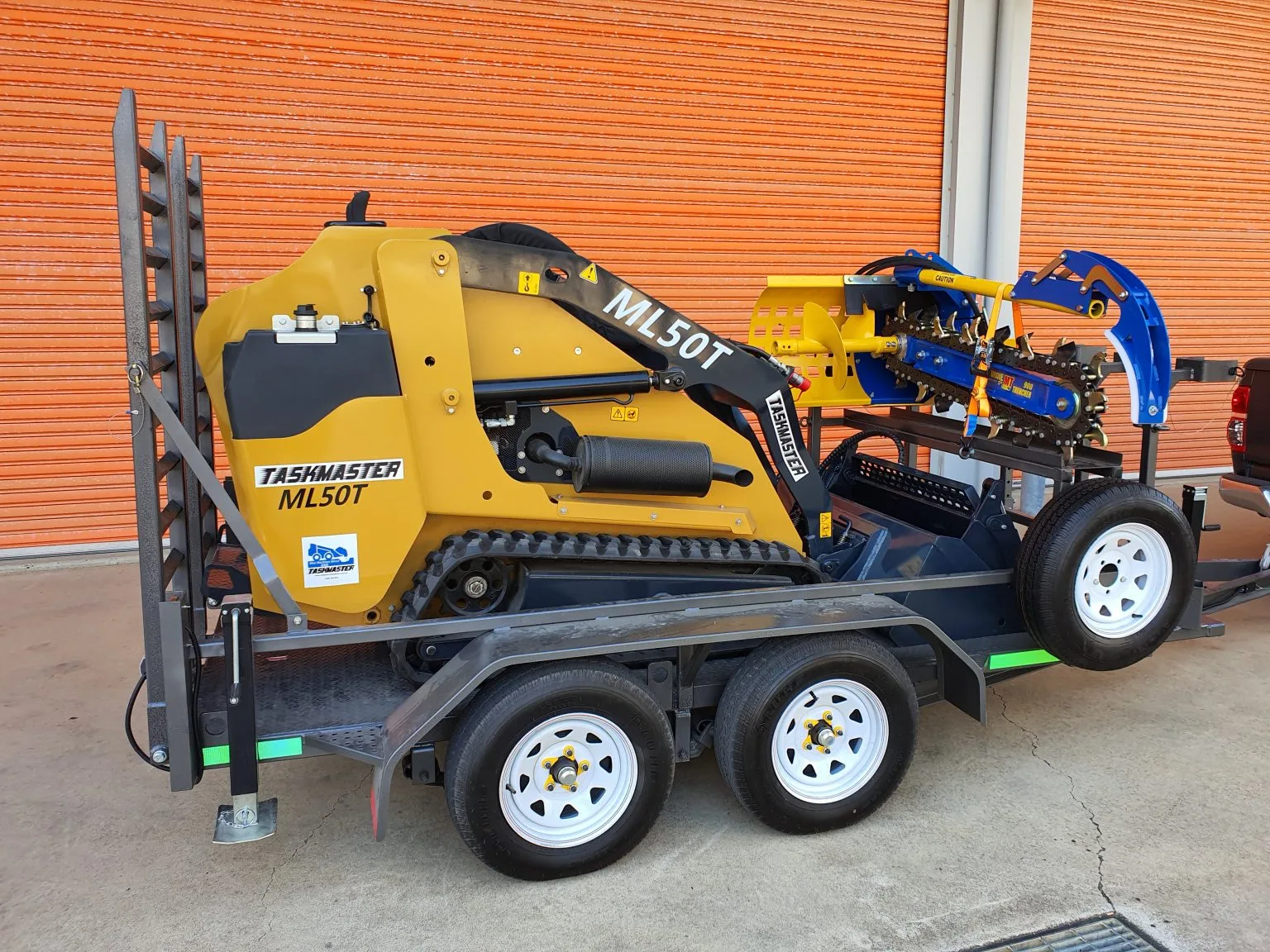

  • Tie Down Locations – Safe Security for Transporting

  • Key Locks on Access Panels and Fuel Caps – For Security

  • Operators Manual – Water Proof Holder for Safety and Protection

  • Reverse Stop Panel – Operator Safety

  • LED Lights – Day and Night Vision

  • Drink Holders – Holds Refreshments or Phone

SPECIFICATIONS:

ENGINE
Engine Make Kubota (Japan)
Fuel Type Diesel
Rated Power 50 hp (35.7 kw)
Electrical 12 Volt / Alternator
HYDRAULUIC SYSTEM
Pump Brand Hansa TMP (Italian) x 3
Valve brand Walvoil Joystick (Italian)
Pressure 3045 PSI (210 Bar)
Flow 59 L/Min
Cooler Alloy Radiator
DRIVING SYSTEM
Motor Brand Danfoss – With Internal Brake System (Danish)
Pressure 3045 PSI (210 Bar)
Flow 59 L/Min
Speed 7.2 Km/h
AUX CIRCUIT
Valve Brand Flat Faced Couplers – 1/2″
Pressure 2610 PSI (180 Bar)
Flow 59 L/Min
FLUID CAPACITIES
Fuel 65 L Diesel
Hydraulic Oil 62 L
Engine Oil 10 L
Coolant 14 L
RATED LOAD
50% of Tip Capacity 544 kg (Will Actually Lift 810 kg)
35% of Tip Capacity 381 kg (Will Actually Lift 810 kg)

DIMENSIONS:

Height to Bucket Hinge Pin 2478 mm
Width 1050 mm
Weight 1590 kg
Height Max 3263 mm
Height Min 1505 mm
Length with Bucket 2824 mm
Length without Bucket 2202 mm
Wheelbase 1170 mm
Ground Clearance 150 mm
Angle of Departure 22 deg
